Reference Manual
00809-0100-4731, Rev FA
April 2003
3-7
APEX
™
and APEX Sentry
™
Radar Gauge
NOTE
An “A” displayed in the lower right corner of the display indicates that the
gauge has gone into alarm mode (see Figure 3-4 for an explanation of error
messages). The “A” will disappear once the unit is out of alarm mode.

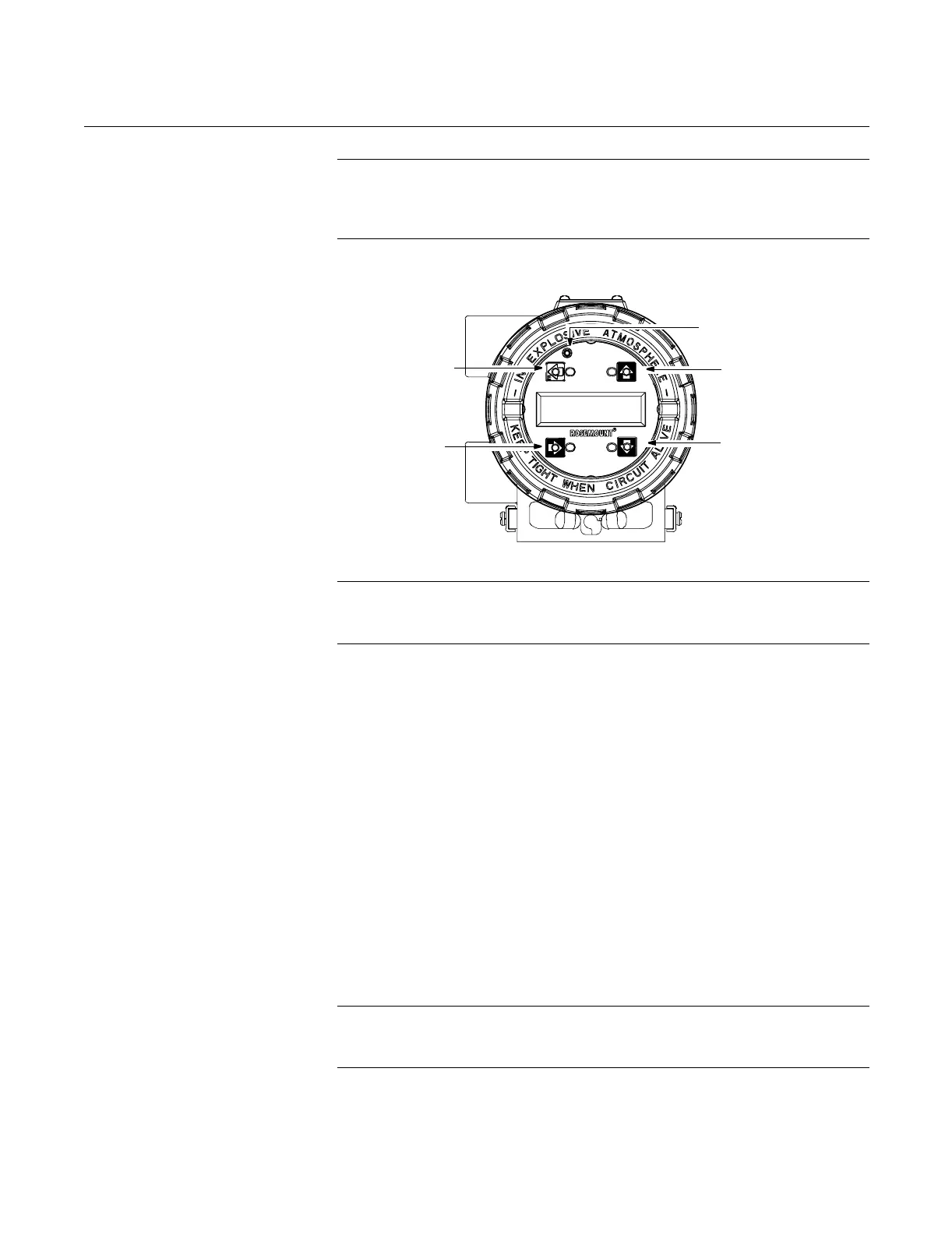

Figure 3-4. Optional Integral
Display and Optical Sensors
NOTE
If the red indicator light blinks constantly, try to clean the glass to see if it
stops blinking.
The sensors provide the following functions:
• The ENTER sensor (left arrow) sets a variable or selects an option.
• The NEXT sensor (right arrow) moves the cursor within the displayed
variable.
• The UP and DOWN sensors change the displayed value of the variable
or option.
Starting the Main Menu To start the main menu, follow these steps
(refer to Figure 3-4 and Figure 3-5):
1. Press the ENTER sensor.
2. Press the UP sensor.
3. Press the DOWN sensor.
4. Press the NEXT sensor.
5. Press the ENTER sensor again to activate the main menu.
The integral display shows the first variable, Language.
NOTE
If you do not activate any sensors for one minute, the display will
time-out and exit the main menu without saving changes.
ENTER
NEXT
UP
DOWN
Level: 5.10
Red Indicator Light
LEVEL/0025A.EPS
To Next Page
