Setup - LCD
The LCD tab lets you specify which parameters to appear on the display
panel.

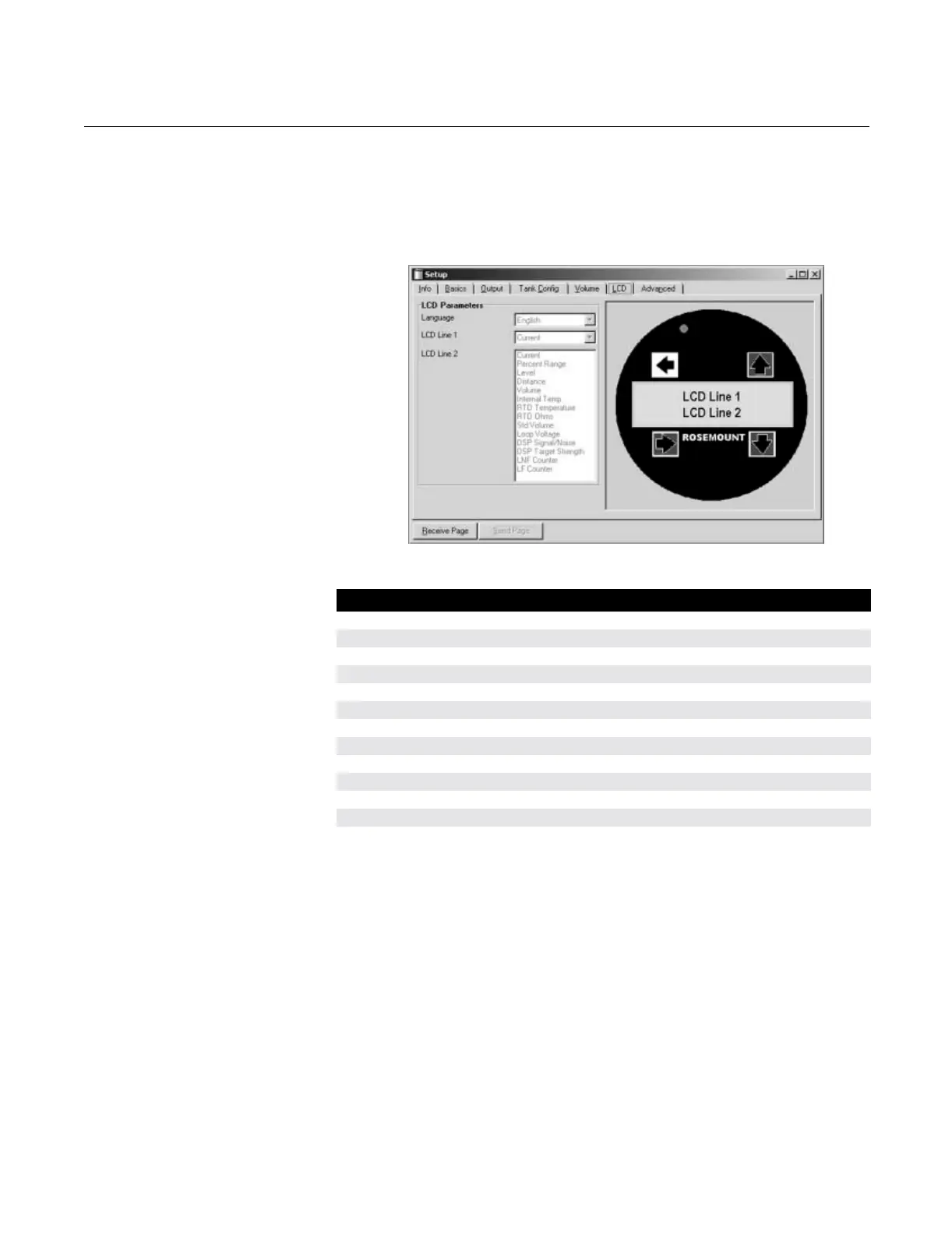

Figure 3-28. Setup Tank LCD
Tab
Choose one the following options:
Parameter Description
Level Product Level
Distance Distance from upper reference point to product surface
Volume Total product volume
Internal Temperature Temperature inside the transmitter housing
RTD Temperature Temperature report from connected RTD (optional)
RTD Ohms Resistance report from connected RTD (optional)
Standard Volume Product volume corrected for temperature
Loop Voltage Voltage of loop at device terminal
DSP Signal/ Noise An indicator of signal quality
DSP Target Strength An indicator of signal quality
LNF Counter A counter indicating lost targets (typically 0)
LF Counter A counter indicating found targets (typically 8)
Percent Range Level value in percent of total measurement range
