3-28
Using the Setup
Function
To install the APEX Radar Gauge by using the Setup function do the
following:

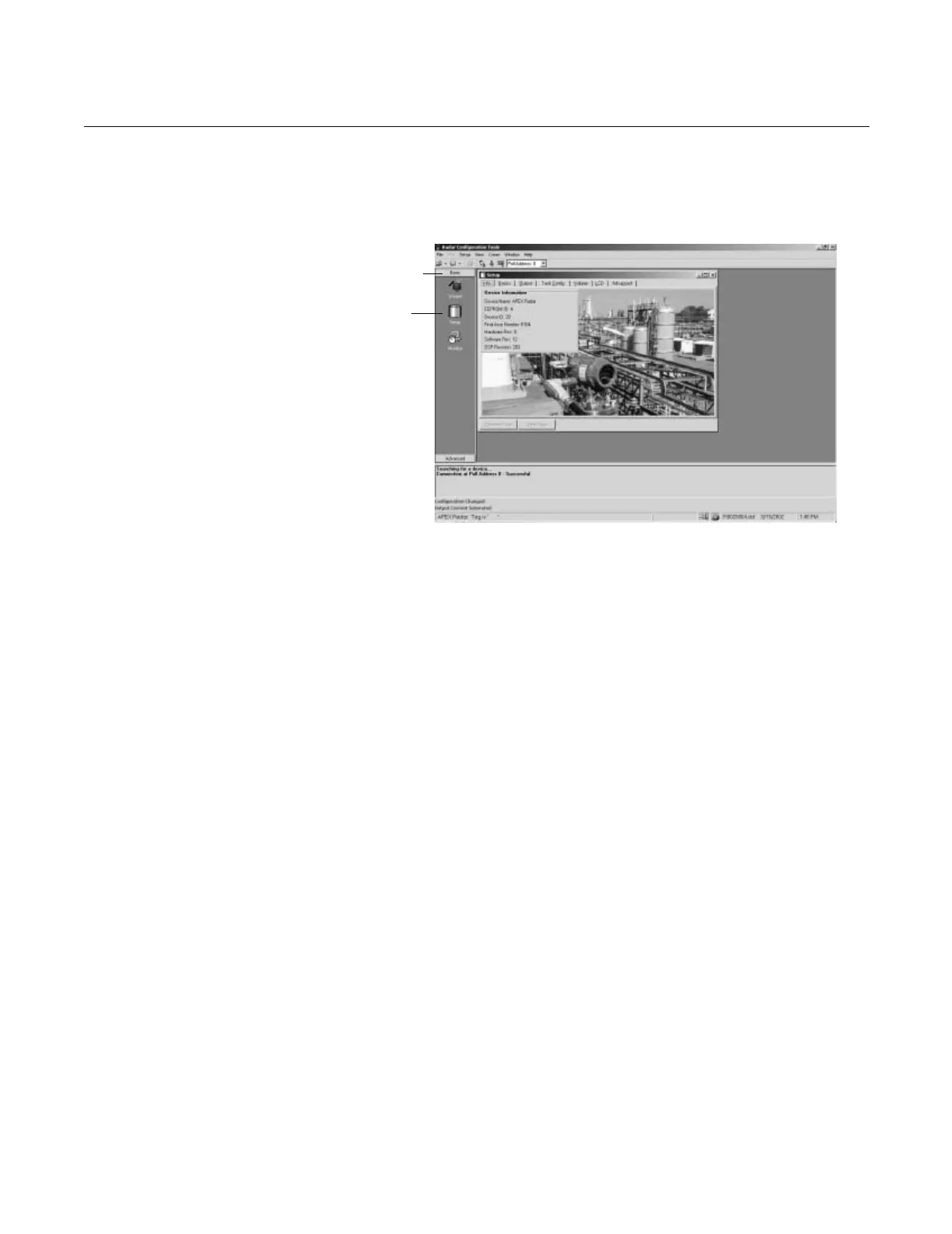

Figure 3-22. RCT workspace/
Setup Info
1. Start the RCT software.
2. In the RCT workspace click the Setup icon (make sure the Basic section
is open)
3. Choose the appropriate tab:
• Info: Information about the device.
• Basics: Set measurement units.
• Output: Variable assignment and range value settings.
• Tank Config: Tank height and other geometry settings, null zones, and
empty tank settings.
• Volume: Specification of tank geometry for volume calculations.
• LCD: Display panel settings.
• Advanced: Quick pick options and their required parameter settings.
APEX/RCT/APEX_07AA.TIF
Basic
Setup
