Emerson Rosemount Apex - Apex;Hybrid System Installation (APEX Radar Gauge Only)

Reference Manual
00809-0100-4731, Rev FA
April 2003
2-31
APEX
™
and APEX Sentry
™
Radar Gauge
APEX/Hybrid System
Installation (APEX Radar
Gauge Only)
Figure 2-24 and the wiring diagrams in Figures 2-23 are provided to detail the
proper methods of wiring the following tank gauging architectures:
• Figure 2-24: APEX Hybrid System (APEX interfacing with a Model
3201 HIU and Model 3402 AIM architecture)
• Figure 2-24: HART Polling addresses
Based upon the specific type of system you are installing, Figures 2-23
through 2-25 should answer your installation wiring questions. For further
details regarding each component of the system, please refer to each
product’s individual manual.

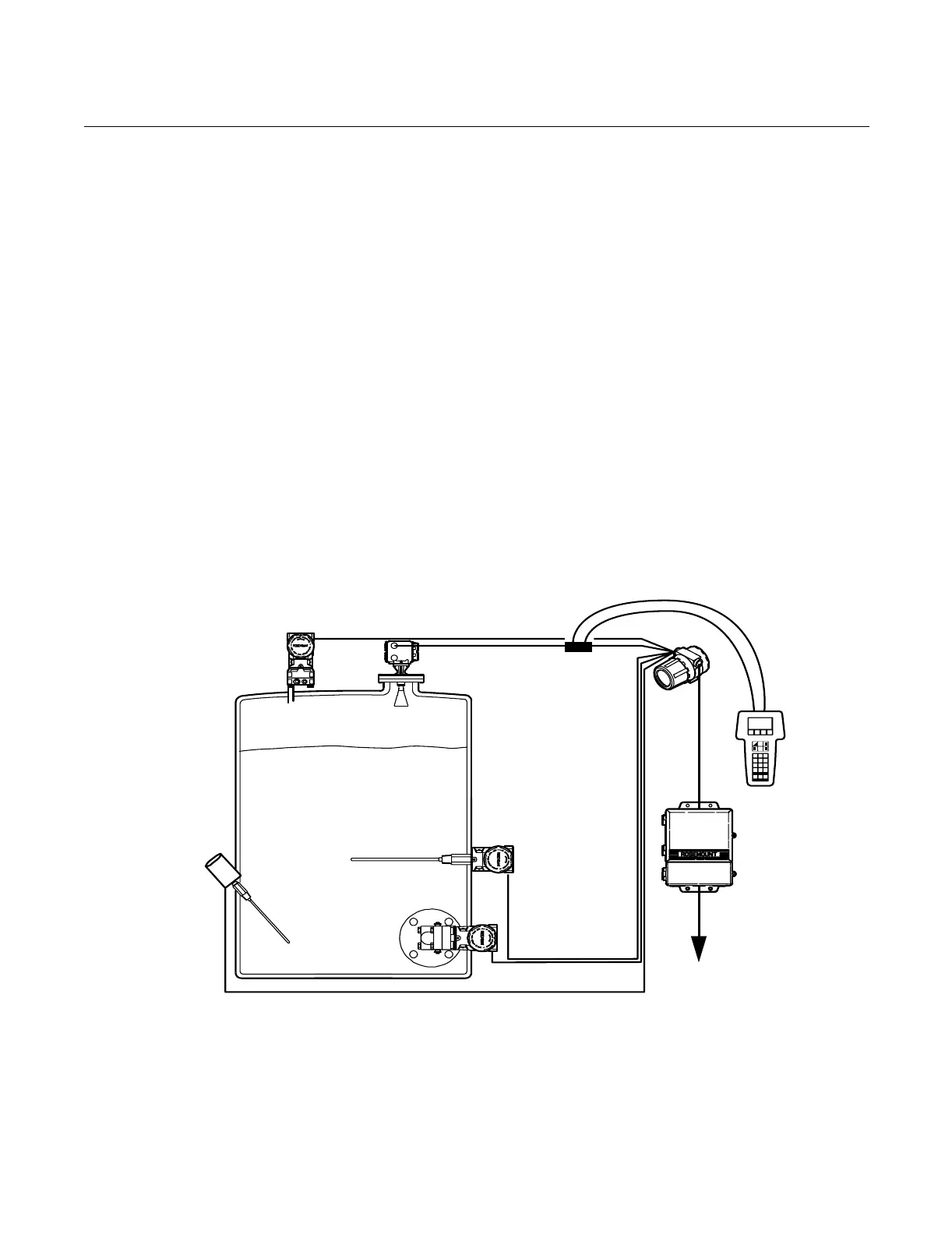

Figure 2-24. APEX Hybrid
Installation
Product Document Number
• Model 3001C Transmitters 00809-0100-4635
• Model 3201 HIU 00809-0100-4640
• Model 3202 SAM 00809-0100-4646
• Model 3402 AIM 00809-0100-4641
Water bottom Probe
Hart Poll Address: 5
Model 3001C (PT) Top
Pressure Transmitter Hart
Poll Address: 3
APEX Radar Gauge
Hart Poll Address: 10
Hart
Communicator
Model 3402 (AIM)
Application
Interface Module
SMART RTD
TEMPERATURE SENSOR
HART POLL ADDRESS: 4
Model 3001C (PB) Bottom
Pressure Transmitter Hart
Poll Address: 1
(Optional)
Model 3201 (HIU)
Hydrostatic Interface Unit
Hart Poll Address: 0
RS 232
RS 485
Outputs
OULEVEL-2510A04B
