3-30
Setup- Output
The Output tab lets you assign up to four transmitter variables.

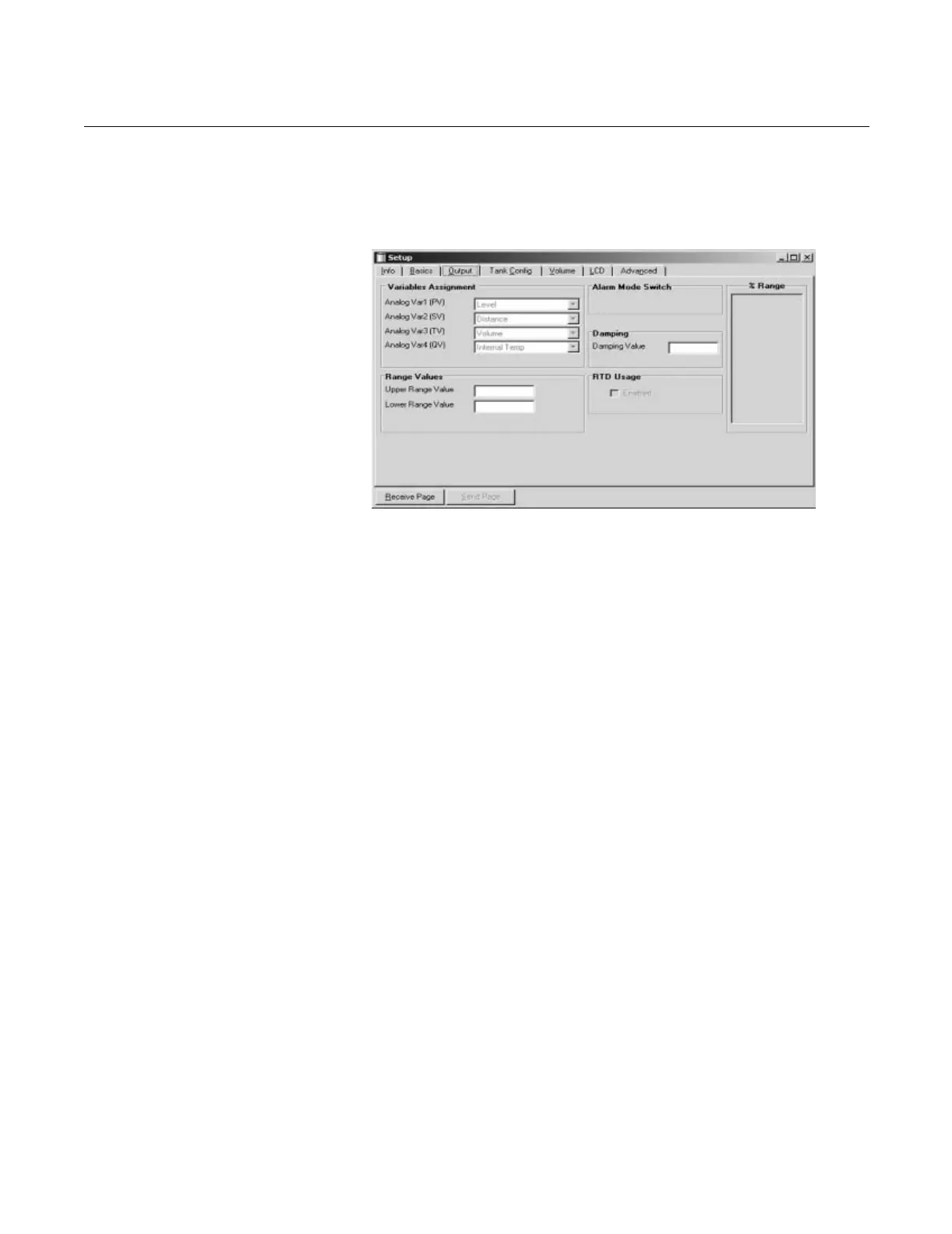

Figure 3-25. Setup Output Tab
Typically, the Primary Variable (PV) is configured to be Product Level,
Interface Level, or Volume.
Set the Lower Range Value (4 mA) and the Upper Range Value (20 mA) to
the desired values. Keep in mind the 20 mA value should be below the Upper
Null Zone.
RTD Usage should be checked if an RTD is used with the gauge.
APEX/RCT/APEX_10AA.TIF
