Setup - Volume
The Volume tab lets you configure the transmitter for volume calculations.

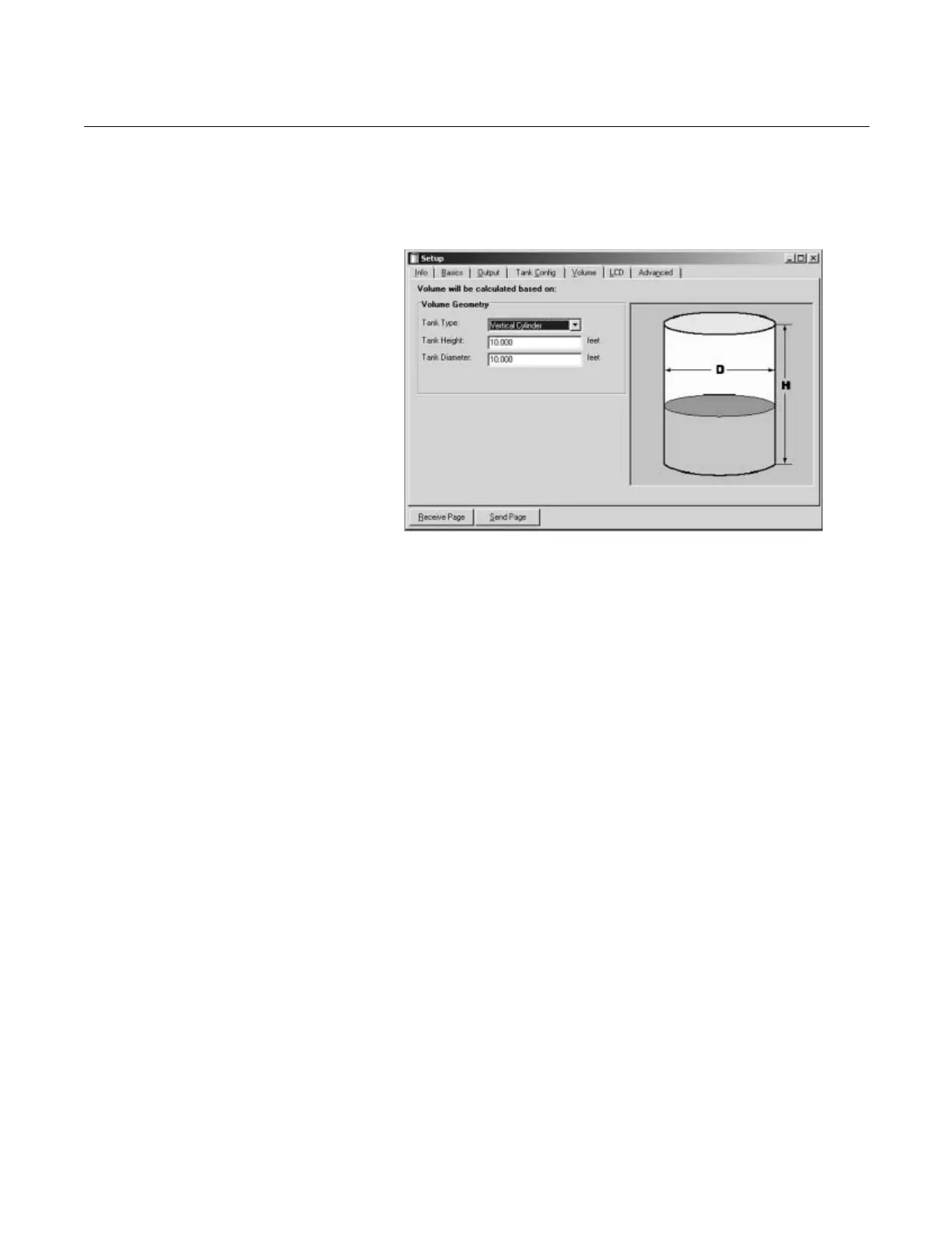

Figure 3-27. Setup Tank Volume
Tab
You can choose one of the standard tank shapes or the strapping option.
Choose None if volume calculation is not used at all.
Choose one of the following options:
• None
• Strap Table
• Vertical Cylinder
• Horizontal Cylinder
• Vertical Bullet
• Horizontal Bullet
• Sphere
