4-2 • Site Supervisor Controller User Guide 2.0 026-1800 Rev 3 02-AUG-2016
4.1 Technical
Specifications
4.2 Mounting
4.2.1 Panel Mount Dimensions
Housing:
Mounting:
Self-extinguishing ABS
Panel and wall mounting
capability
Frontal IP Protection IP20 with UR/NTC sensor
IP54 with UR/NTC sensor
Rear IP Protection IP20
Connections Panel Version
: STELVIO
90° screw connectors.
Wall Version
: wiring mini-
mum 0.5 mm
2
to maxi-
mum 2.5 mm
2
Power Supply 12-24 VAC/DC ±15%
Power Absorption 5W to 5VA
Analog Input NTC Dixell (-50T110°C;
10KÙ±1% at 25°C)
Digital Input Voltage free
Buzzer Yes
Display (TFT) 4.3”
Resolution 480x272 px
Colors 256 (8 bit)
Touch Resistive
Measuring Range On-board NTC sensor
:
14 to 122°F (-10 to 50°C)
Remote NTC sensor
:
-58 to 230°F (-50 to
110°C)
RH Sensor
: 20 to 85%
NTC Resolution 32.18°F (0.1°C)
Accuracy Humidity
Sensor
±3% (20 to 80%)
±5% (elsewhere)
Operating Tempera-
ture
-4 to 140°F
(-20 to 60°C)
Table 4-1
- Site Supervisor Specifications
Storage Temperature -13 to 158°F
(-25 to 70°C)
Relative Humidity 20 to 85% (no condensing)
CE COMPLIANCE: The Emerson Retail
Solutions Site Supervisor controllers are Class
A products. In a domestic environment this
product may cause radio interference in which case the
user may be required to take adequate measures.

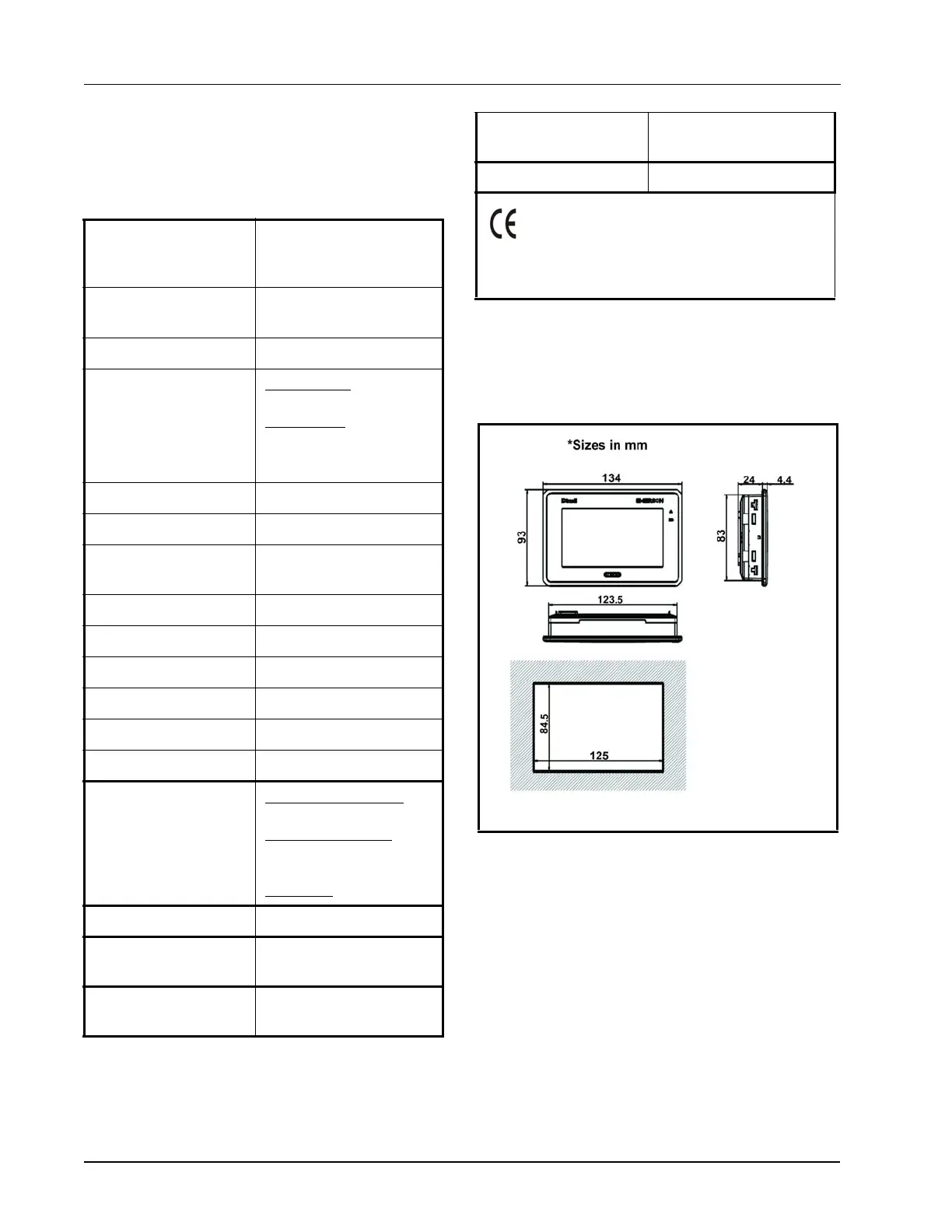

Figure 4-2
- Dimensions for Panel Mounting - Sizes in mm
Table 4-1 - Site Supervisor Specifications
