Cerabar S/Deltabar S Description of parameters (ToF Tool)
Endress+Hauser 143
CORRECTED PRESS.
Display
Displays the measured pressure after sensor trim and position adjustment and before
damping. → See also PRESSURE diagram.
SENSOR PRESSURE
Display
Displays the measured pressure before sensor trim, position adjustment and damping.
→ See also PRESSURE diagram.
SENSOR TEMP.
Display
Displays the temperature currently measured in the sensor. This temperature can deviate
from the process temperature.
MEAS. VAL. TREND
Display
Displays the trend of the pressure measured value.
Possibilities: increasing, decreasing, constant
ToF Tool, Table 22: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Level"
Parameter name Description
Prerequisite:
•MEASURING MODE = level
MEASURED VALUE
Display
Displays the measured value
In the "Level" measuring mode with "Linear" or "Pressure linearized" level type, this value
corresponds to the LEVEL BEFORE LIN parameter
In the "Level" measuring mode with "Height linearized" level type, this value corresponds
to the TANK CONTENT parameter.

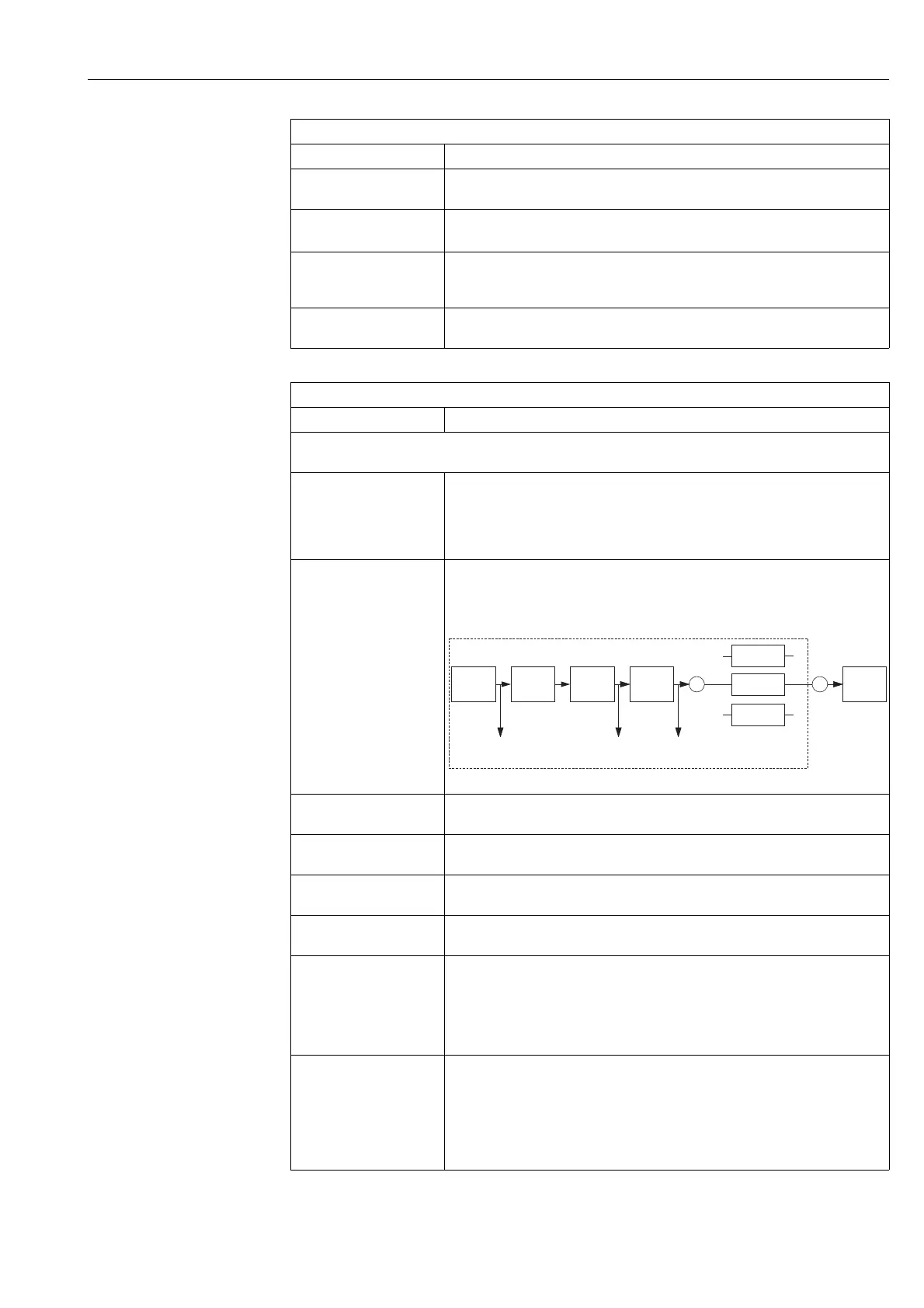

PRESSURE
Display
Displays the measured pressure after sensor recalibration, position adjustment and
damping. This value corresponds to the MEASURED VALUE parameter in the "Pressure"
measuring mode.
P01-xMD7xxxx-05-xx-xx-xx-002
CORRECTED PRESS.
Display
Displays the measured pressure after sensor trim and position adjustment and before
damping. → See also PRESSURE diagram.
SENSOR PRESSURE
Display
Displays the measured pressure before sensor trim, position adjustment and damping.
→ See also PRESSURE diagram.
SENSOR TEMP.
Display
Displays the temperature currently measured in the sensor. This temperature can deviate
from the process temperature.
MEAS. VAL. TREND
Display
Displays the trend of the pressure measured value.
Possibilities: increasing, decreasing, constant
LEVEL BEFORE LIN
Display
Displays the level value prior to linearisation.
Prerequisite:
• LEVEL MODE = linear or height linearized
Depending on the setting for the LIN. MEASURAND or COMB. MEASURAND
parameter, this parameter displays the current level in % or in a unit of level.
TANK CONTENT
Display
Displays the level value after linearisation.
Prerequisite:
• LEVEL MODE = pressure linearized or height linearized
Depending on the settings for the LINd. MEASURAND or COMB. MEASURAND
parameter, the current tank content is displayed in % or in a unit of volume or mass. This
value corresponds to the MEASURED VALUE.
ToF Tool, Table 21: OPERATING MENU → PROCESSINFO → PROCESS VALUES "Pressure"
Parameter name Description
P
PV
Sensor
Analog
Input
Block
Pressure
Level
Flow
PRESSURE
Damping
CORRECTED
PRESS.
Position
adjust-
ment
Sensor
trim
SENSOR
PRESSURE
Transducer Block
