Level measurement (ToF Tool) Cerabar S/Deltabar S
76 Endress+Hauser
8.2 "Linear" level type
8.2.1 Calibration with reference pressure – wet calibration
Example:
In this example, the level in a tank should be measured in m
3
. The maximum level is 3 m. The
pressure range is set to 0 to 300 mbar.
Prerequisite:
• The measured variable is in direct proportion to the pressure.
• The tank can be filled or emptied.
!
Note!
• See also Operating Instructions BA301P Deltabar S or Operating Instructions BA302P Cerabar S,
Section 6.6 "Level measurement".
• For a description of the parameters mentioned, see
– Page 98, ToF Tool, table 4: POSITION ADJUSTMENT
– Page 101, ToF Tool, table 6: BASIC SETUP
– Page 105, ToF Tool, table 7: BASIC SETUP – "Linear" level type.
• For a description of further relevant parameters, see
– Page 129, ToF Tool, table 12: EXTENDED SETUP
– Page 143, ToF Tool, table 22: PROCESS VALUES.
Description
1 Deltabar S: before configuring the device for your
application, the pressure piping must be cleaned and the
device filled with fluid. See Operating Instructions
BA301P, Section 6.6.1
P01-PMP75xxx-19-xx-xx-xx-000

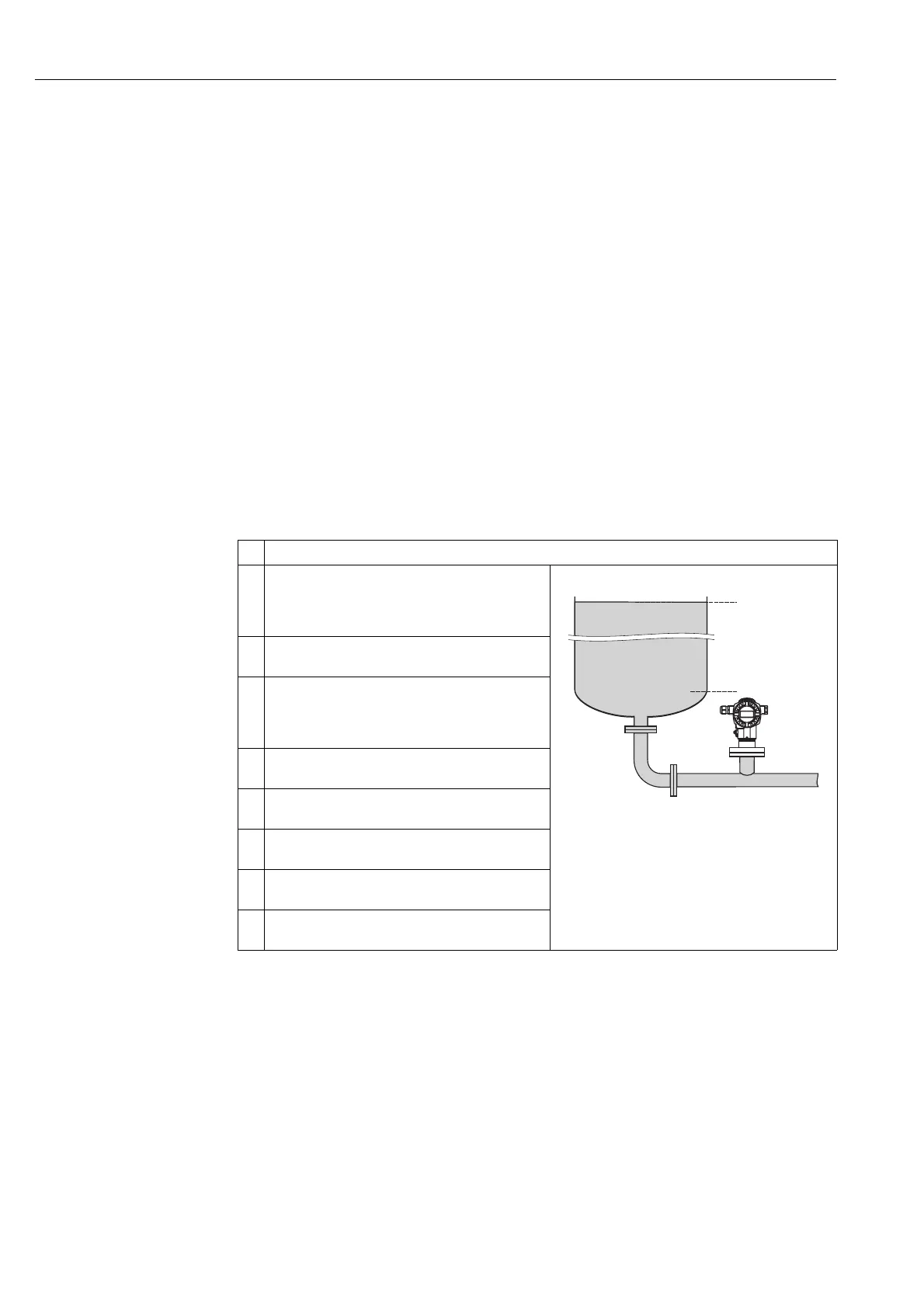

Fig. 10: Calibration with reference pressure –
wet calibration
1 See table, step 9.
2 See table, step 10.
2 Carry out position adjustment if necessary. See Page 98,
ToF Tool, table 4: POSITION ADJUSTMENT.
3 If necessary, select the "Level" measuring mode via the
MEASURING MODE parameter.
Menu path: OPERATING MENU → SETTINGS →
BASIC SETUP → MEASURING MODE
4 Select a pressure unit via the PRESS. ENG. UNIT
parameter, here mbar for example.
5 Select the "Linear" option by means of the LEVEL MODE
parameter.
6 Select the "Level" option by means of the LIN.
MEASURAND parameter.
7 Select a level unit via the HEIGHT UNIT parameter, here
m for example.
8 Select the "Wet" option by means of the CALIBRATION
MODE parameter.
➀
➁
