Cerabar S/Deltabar S Description of parameters (ToF Tool)
Endress+Hauser 125
P01-xMx7xxxx-19-xx-xx-xx-035

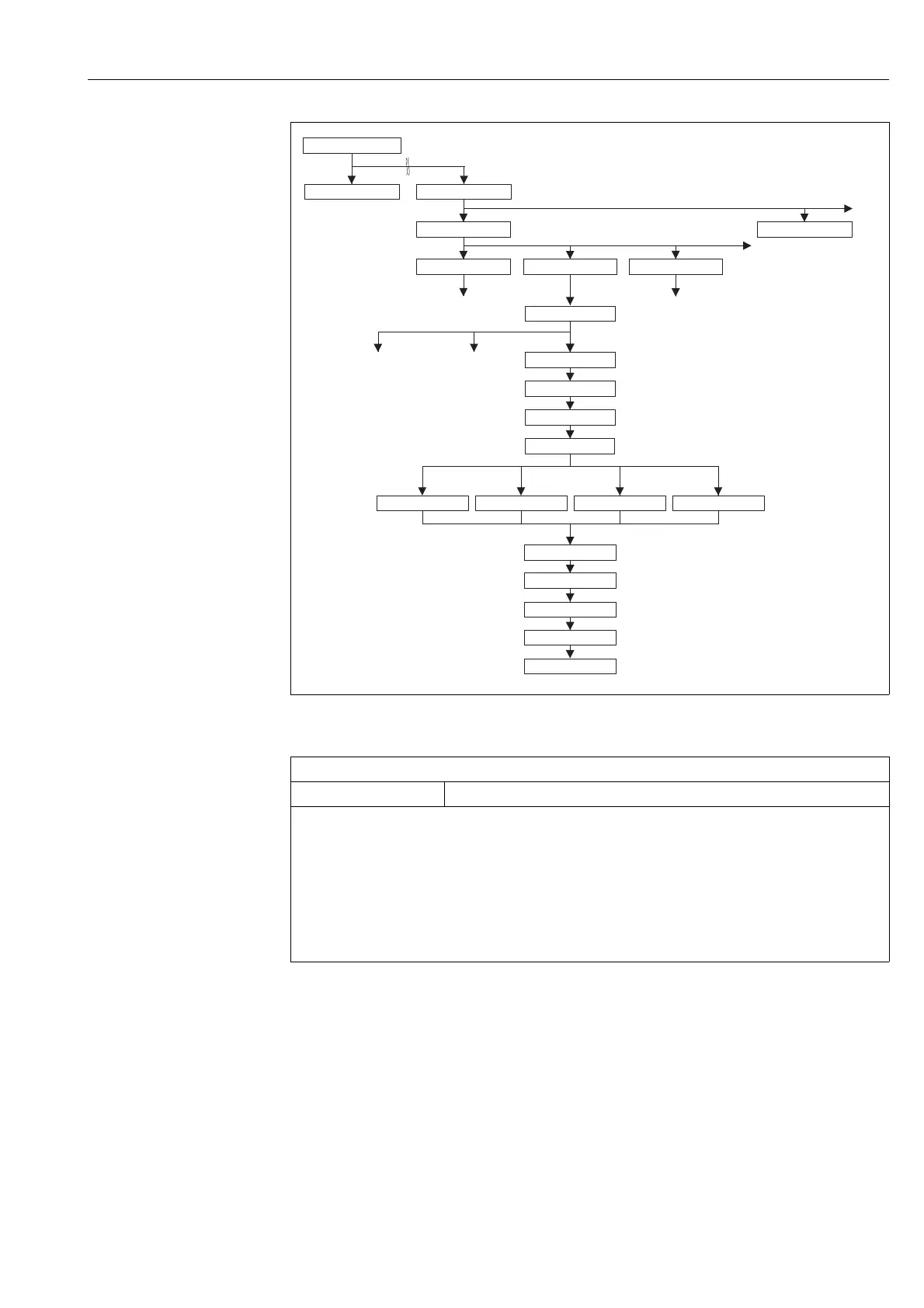

Fig. 29: BASIC SETUP function group for the "flow" measuring mode
*
*
*
*
*
Gas
std. cond.
Volume
p. cond.
Gas
norm cond.
Mass
p. cond.
DAMPING VALUE
MAX FLOW
MAX. PRESS. FLOW
CUST. UNIT. FACT. F
CUSTOMER UNIT F.
UNIT FLOW NORM FLOW UNIT STD. FLOW UNIT MASS FLOW UNIT
Parameters marked with an asterisk "*"
are not always displayed. The display
depends on the settings of other parameters,
see the following Table.
Flow
Pressure
Level
PRESS. ENG. UNIT
CUSTOMER UNIT P
CUST. UNIT FACT. P
LEVEL MODE
MEASURING MODE
OPERATING MENU
MEASURED VALUE
QUICK SETUP
BASIC SETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
EXTENDED SETUP
ToF Tool, Table 10: OPERATING MENU → SETTINGS → BASIC SETUP "Flow"
Parameter name Description
Prerequisite:
•MEASURING MODE = flow
Note:
See also
– Page 96, ToF Tool, table 3: QUICK SETUP
– Page 130, ToF Tool, table 13: EXTENDED SETUP
– Page 134, ToF Tool, table 15: TOTALIZER SETUP
– Page 144, ToF Tool, table 23: PROCESS VALUES.
– Page 89 ff, Section 9 "Flow measurement (ToF Tool)".
