Description of parameters (ToF Tool) Cerabar S/Deltabar S
134 Endress+Hauser
P01-xMx7xxxx-19-xx-xx-xx-038

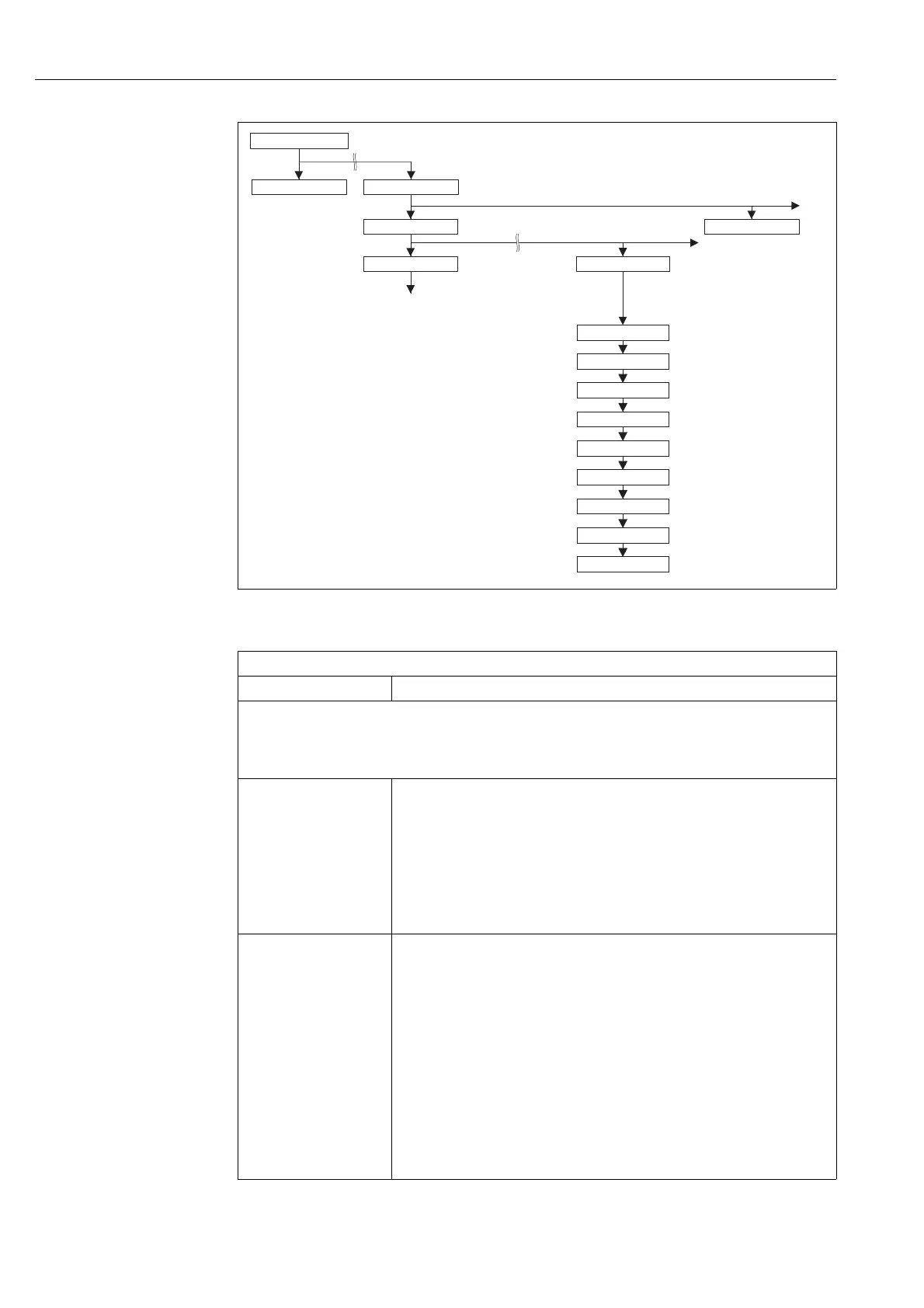

Fig. 32: TOTALIZER SETUP function group
*
*
*
*
*
NEG. FLOW TOT. 1
RESET TOTALIZER 1
TOTALIZER 2 UNIT
TOT. 2 USER UNIT
FACT. U. U. TOTAL. 2
NEG. FLOW TOT. 2
OPERATING MENU
MEASURED VALUE
QUICK SETUP
DISPLAYSETTINGS
POSITION ADJUSTMENT
TOTALIZER 1 UNIT
TOT. 1 USER UNIT
FACT. U. U. TOTAL. 1
TOTALIZER SETUP
Flow measuring
mode only
Parameters marked with an asterisk "*"
are not always displayed. The display
depends on the settings of other parameters,
see the following Table.
ToF Tool, Table 15: OPERATING MENU → SETTINGS → TOTALIZER SETUP
Parameter name Description
Prerequisite:
•MEASURING MODE = flow
Note:
• See also Page 89 ff, Section 9 "Flow measurement (ToF Tool)".
TOTALIZER 1 UNIT
Selection
Select unit for totalizer 1.
Depending on the setting in the FLOW-MEAS. TYPE parameter (→ Page 127) this
parameter offers a list of volume, norm volume, standard volume and mass units. When a
new volume or mass unit is selected, totalizer-specific parameters are converted and
displayed with the new unit within a unit group. When the flow mode is changed, the
totalizer value is not converted.
The index depends on the Flow-MEAS. TYPE selected:
Factory setting:
m
3
TOT. 1 USER UNIT
Entry
Enter text (unit) for customer-specific unit for totalizer 1.
You can enter a maximum of eight alphanumeric characters here. → See also FACT. U.
U. TOTAL. 1.
Prerequisite:
• TOTALIZER 1 UNIT = user unit
!
Note!
Only the first five characters are shown on the on-site display. For example, if "crates" is
specified as the customer-specific unit, "crate" is displayed.
If the unit contains a slash, up to eight characters can be shown on the on-site display.
The maximum number of characters in the counter is again limited to five. For example,
if "crates/m2" is specified as the customer-specific unit, "crate/m2" is displayed. In the
ToF Tool, all eight characters are displayed.
Factory setting:
_ _ _ _ _ _ _ _
