Endress+Hauser Micropilot FMR60B User Manual

Operation options Micropilot FMR60B PROFINET with Ethernet-APL
38 Endress+Hauser
7.6.1 Connecting the operating tool
Via PROFINET with Ethernet-APL network
21 3
6 6
4
5
6
6
A0046097

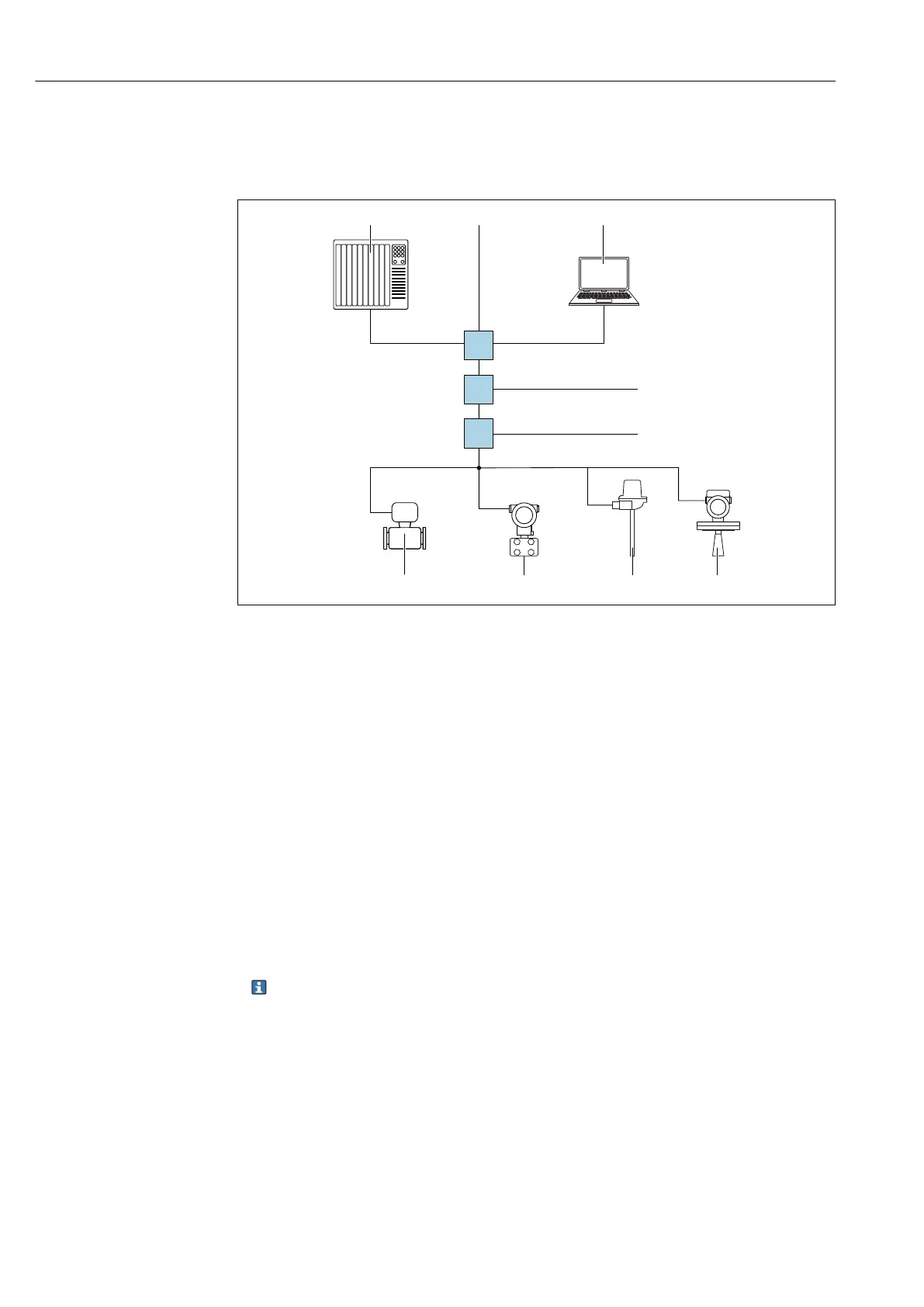

 14 Options for remote operation via PROFINET with Ethernet-APL network: star topology
1 Automation system, e.g., Simatic S7 (Siemens)
2 Ethernet switch
3 Computer with Web browser (e.g., Microsoft Edge) for accessing the integrated device Web server or
computer with operating tool (e.g., FieldCare, DeviceCare, SIMATIC PDM) with iDTM Profinet Communication
4 APL power switch (optional)
5 APL field switch
6 APL field device
Call up the website via the computer in the network. The IP address of the device must be
known.
The IP address can be assigned to the device in a variety of ways:
• Dynamic Configuration Protocol (DCP), factory setting
The automation system (e.g., Siemens S7) automatically assigns the IP address to the
device
• Software addressing
The IP address is entered via the IP address parameter
• DIP switch for service
The device then has the fixed IP address 192.168.1.212
The IP address is only adopted following a restart.
The IP address can now be used to establish the connection to the network
The default setting is that the device uses the Dynamic Configuration Protocol (DCP). The
automation system (e.g., Siemens S7) automatically assigns the IP of the device.
