Endress+Hauser Mycom CLM 152 Operating Instructions

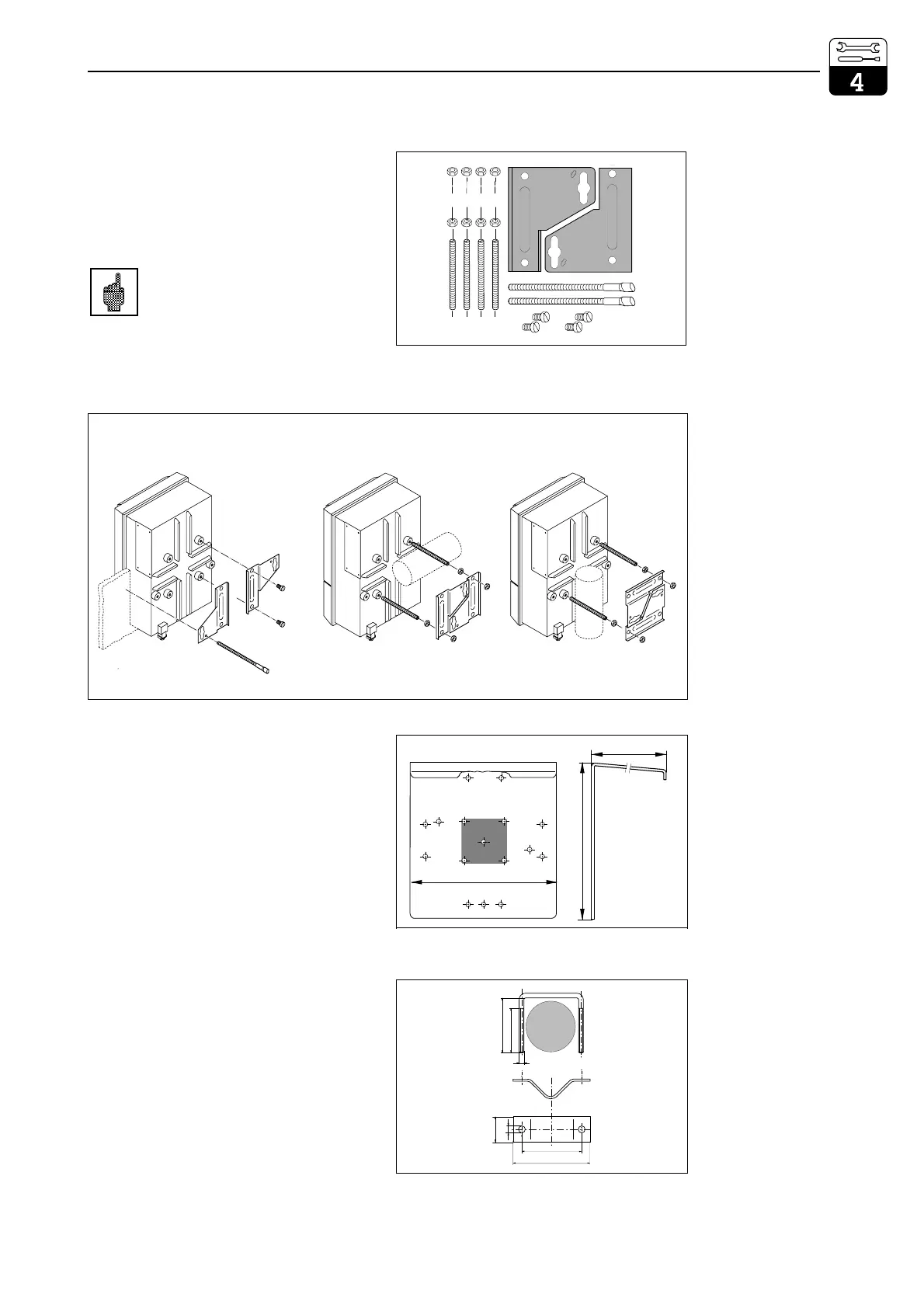

Post and panel mounting (mounting version B)
Attach the parts of the mounting kit supplied
with mounting version B to the housing rear
as depicted in Fig. 4.5:
Cut-out required: 161
+0,5
x241
+0,5
mm
Installation depth: 134 mm
Pipe diameter: max. 70 mm
Caution:
You must use the CYY 101 weather
protection cover for installation
outdoors (see Mounting accessories)
Mounting accessories
CYY 101 weather protection cover for
operating the Mycom CLM 152 outdoors. The
post mounting kit for the weather protection
cover is also required for installing on vertical
or horizontal pipes (Fig. 4.5).
Material: stainless steel
Order No. CYY101-A
Round post mounting kit for CYY 101 weather
protection cover for attachment to vertical or
horizontal pipes with diameters up to 70 mm.
Material: stainless steel
Order No. 50062121
MASTBEF.CDR
Fig. 4.5
Mounting kit for panel
mounting and post
mounting
(Order No. 50061357)
MONTAGE.CDR
➀
➁
Fig. 4.2
Panel mounting ➀ and
post mounting ➁
Mycom CLM 152
300
270
320
YH-101-6.CDR
Fig. 4.3 Weather protection cover
M6
66
55
∅ 8
30
90
yh-101-7.cdr
70
Fig. 4.4
CYY 101 round post
attachment for weather
protection cover
lm152e04.chp
Mycom CLM 152 Installation
Endress+Hauser 11
