3.4 Measuring system
A typical measuring system consists of the
following components:
• an inductive or conductive conductivity
sensor with an integrated temperature
sensor Pt 100
• a suitable conductivity measuring cable
with or without junction box for extending
the cable
• the Mycom CLM 152 measuring transmitter
• Ex-version transmitter:
conductive: combinable with all
conductivity sensors
inductive: only combinable with CLS 50
3.5 Major features
• Backlit graphical display, 128 x 64 pixels
• Menu-driven plain text navigation
• Full-function, clearly arranged
programming options
• Access to configuration and calibration
functions protected by user-defined codes
• Modular design with plug-in modules,
permitting two measuring inputs, current
input with measuring transmitter power
supply, two active current outputs, 0 / 4 to
20 mA, up to five contact outputs and
PROFIBUS
®
communication
Note
Only the manufacturer or the
Endress+Hauser Service Organisation
can expand the instrument with new
or replacement plug-in modules (see
back page of this manual).
PARAM
MEAS CAL
DIAG
➀➁
lm152sys.cdr

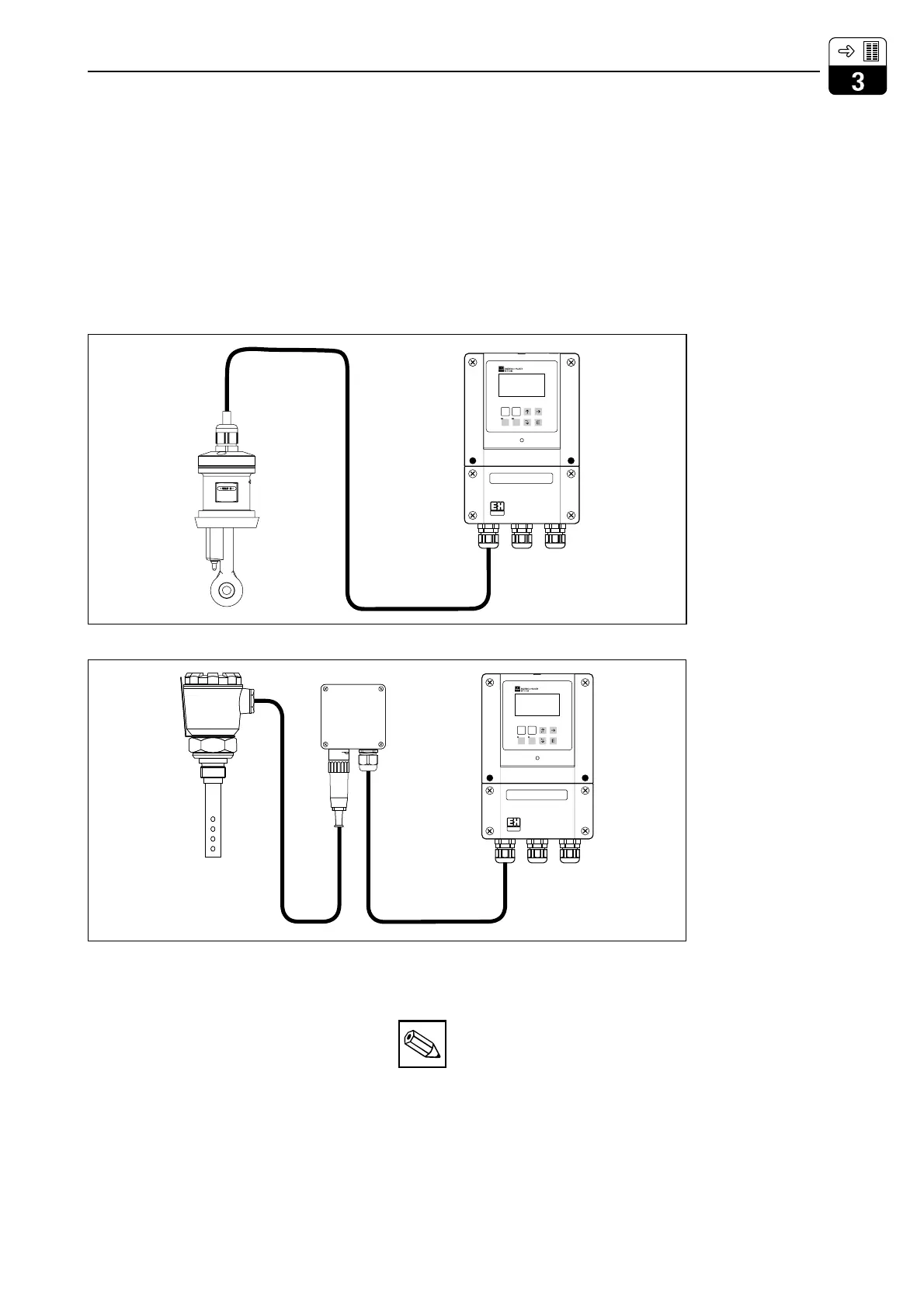

Fig. 3.1
Example of a complete
inductive measuring
system
Mycom CLM 152,
‚ Conductivity sensor e.g.
CLS 52
PARAM
MEAS CAL
DIAG
➂➁➀
lm152syk.cdr
Fig. 3.2
Example of a complete
conductive measuring
system
➀ Conductivity sensor,
e.g. CLS 12
➁ VS junction box
(variant)
➂ Mycom CLM 152
lm152e03.chp
Instrument description Mycom CLM 152
Endress+Hauser 5
