Endress+Hauser Mycom CLM 152 Operating Instructions

The current output signal characteristic can
be matched to the requirements of the
downstream signal processing, display or
recording equipment.
The allocation of the measured value to the
current output signal depends on the internal
measuring ranges of the instrument and the
characteristic curve you select.
Choose between the following characteristics:
A) linear
B) bilinear
C) logarithmic
D) Table (freely programmable
current output characteristics
A) Linear current output signal characteristic
Current output 2
Definition of parameter for second
current output (only for instrument
with 2nd Cond. input)
Cond. 1, Cond. 2,
Temperature 1, Temperature 2
Temperature 1
Measuring current range 0 ... 20 mA or 4 ... 20 mA 4 ... 20 mA
Output damping 1.0 ... 20.0 mA/s 20.0 mA/s
Setting options for Temp. 1 or Temp. 2 (for differential measurement)
Measuring range lower limit Temperature: –35.0 ... +250.0 °C0.0°C
Measuring range upper limit Temperature: –35.0 ... +250.0 °C 200.0 °C
Setting options for Cond.1 or Cond.2
Enter measuring range limits
dependent on selected characteristic
Setting options and factory settings
see under A) to D) (next page)
1)
0.00 mA at measuring current range 0 ... 20 mA
2.40 mA at measuring current range 4 ... 20 mA
2)
22.00 mA
4
(0)
12
(10)
20

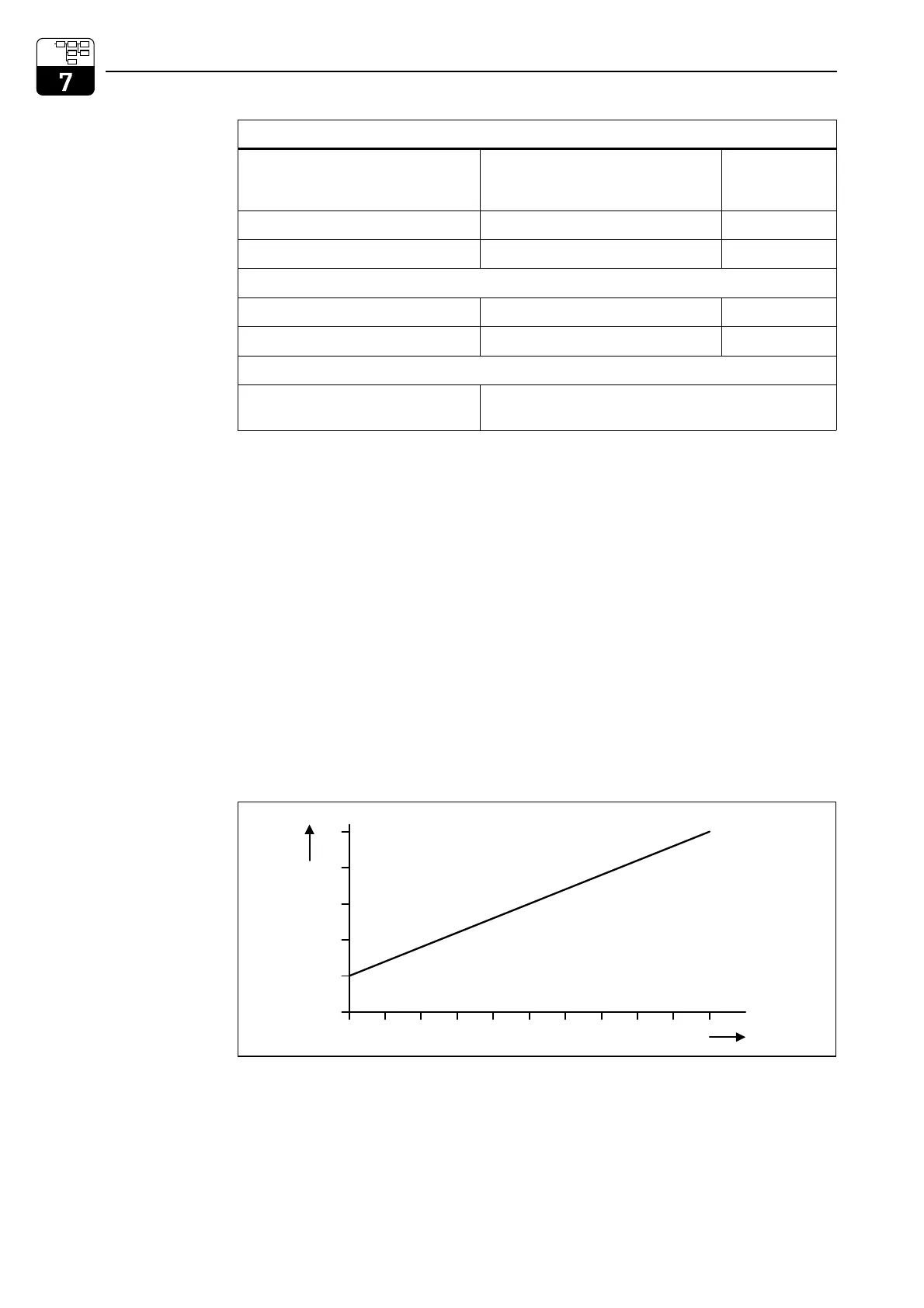

Ausgangsstrom [mA]
Current output meas. range [%]
0 20406080100
Values in brackets for
current output 0...20 mA
i_out_li.cdr
Fig. 7.2
Current output signal
with linear characteristic
Instrument configuration Mycom CLM 152
42 Endress+Hauser
