7.3 Lift the load
To execute a lifting operation proceed as follows.
Reference is made to
• Section 6.2 “The control panel on the electro cabinet” abbreviated with “CP”
• Section 6.4 "The human machine interface (HMI) on the laptop “
Pre-condition is that the load was already positioned upon the system.
7.3.1 Initiating
1. Make sure the checklists
A “Checklist for planning” and
B “Checklist for installing the system”
are completed and signed off
2. Complete checklist D “Recording a lifting operation” during the operation.
3. Start the system:
1. Switch the system on; use the main switch CP[11] and the on/off button CP[10]
2. Verify that the Power on indicator CP[5] and the Motor running indicator [4] on the
electro cabinet are lit
3. Verify that the Motor failure indicator CP[1] is dimmed
4. Set the Control Rem/loc switch CP[9] to Rem (= remote)
5. Switch the laptop on and start the app for the push up system
6. Use the Communication option in the menu bar [HMI] to verify that the communication
is fine
4. Click Manual on the main screen HMI

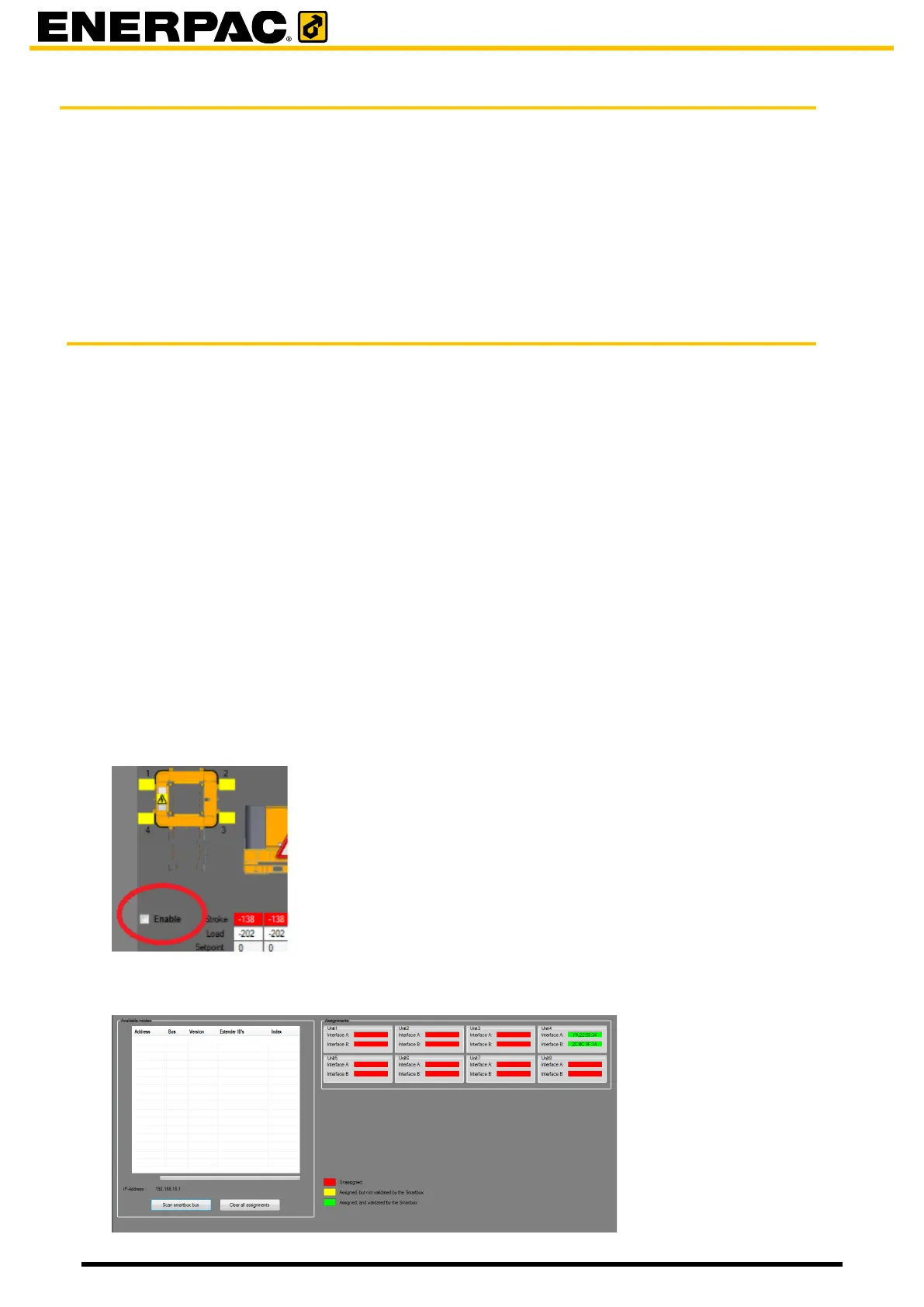

5. Enable the units you want to use:
6. Make sure the hardware assignments are ok. The applicable units should be green. If not,
perform hardware assignments.
