5.2.2 Mechanically

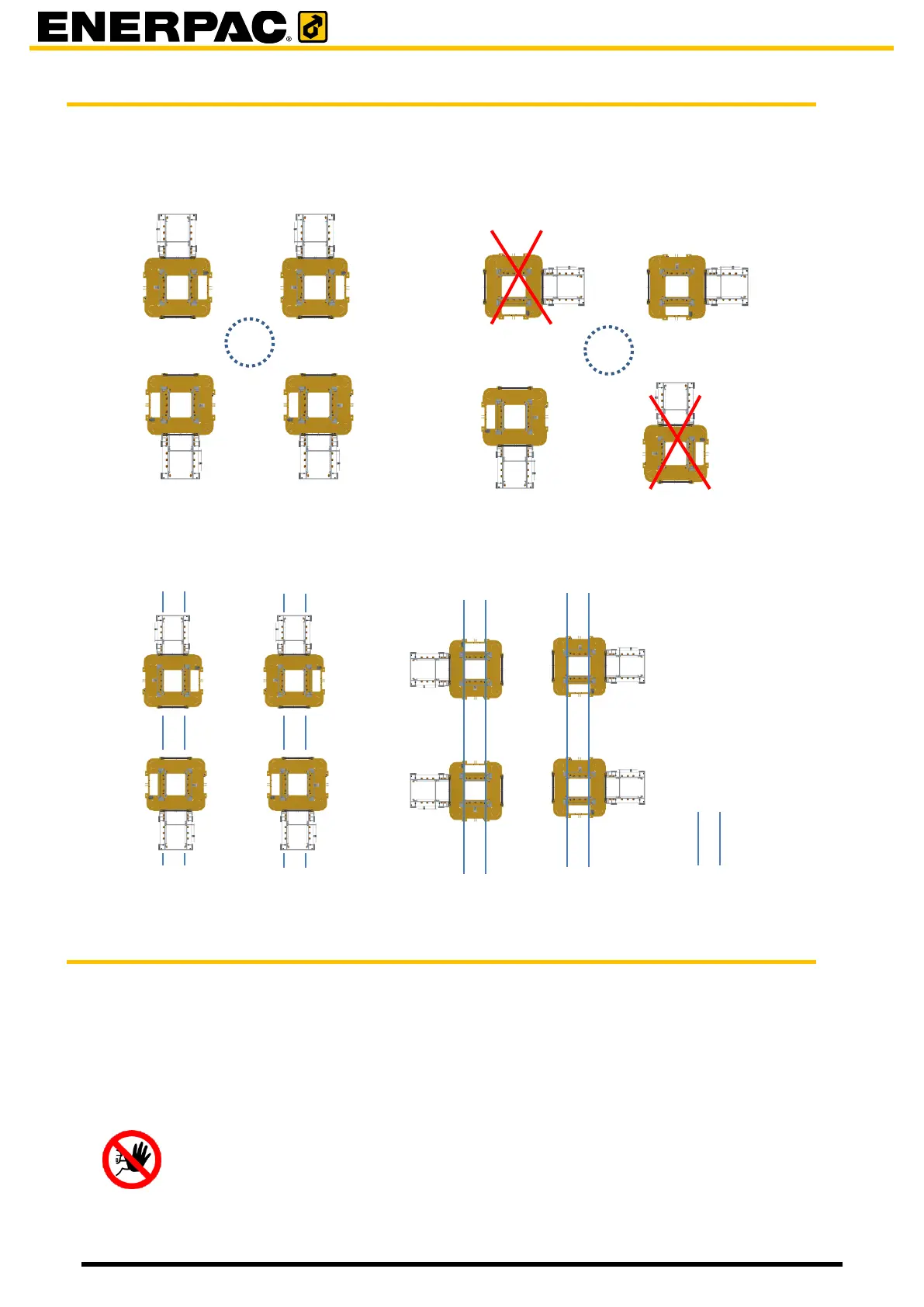

Put the units in a square formation, according to the scheme below.
• System not put on trolleys:
Let all insertion systems face outwards, seen from the center of the four assembled units,
not inwards.
• System placed on skid tracks and trolleys (optional):
5.2.3 Alignment requirements
The complete System as well as the individual units have to be positioned plumb and level,
according to alignment requirements.
This chapter gives those requirements as well as how align the units.

NB
Correct alignment is crucial for the stability of the system.
Hazard
Faults in alignment may injure people and may lead to the total loss of the
system.
(top view: without trolleys on tracks)
center
center
Tracks
(top view)
