Each unit shall be positioned level on the ground with a tolerance in the X and Y direction.
System
Tolerance [mm]
JS125
0.5
JS250
1.0
JS500
1.0
In order to eliminate the effect of possible distortion of the base of the unit, Enerpac advises to
take one the following machined surfaces as a reference:
• resting points of the barrels (indicated with the red circle):
• Top of the cylinder mounting plates (indicated with the green arrow).
You might apply a theodolite to verify the alignment in vertical direction.

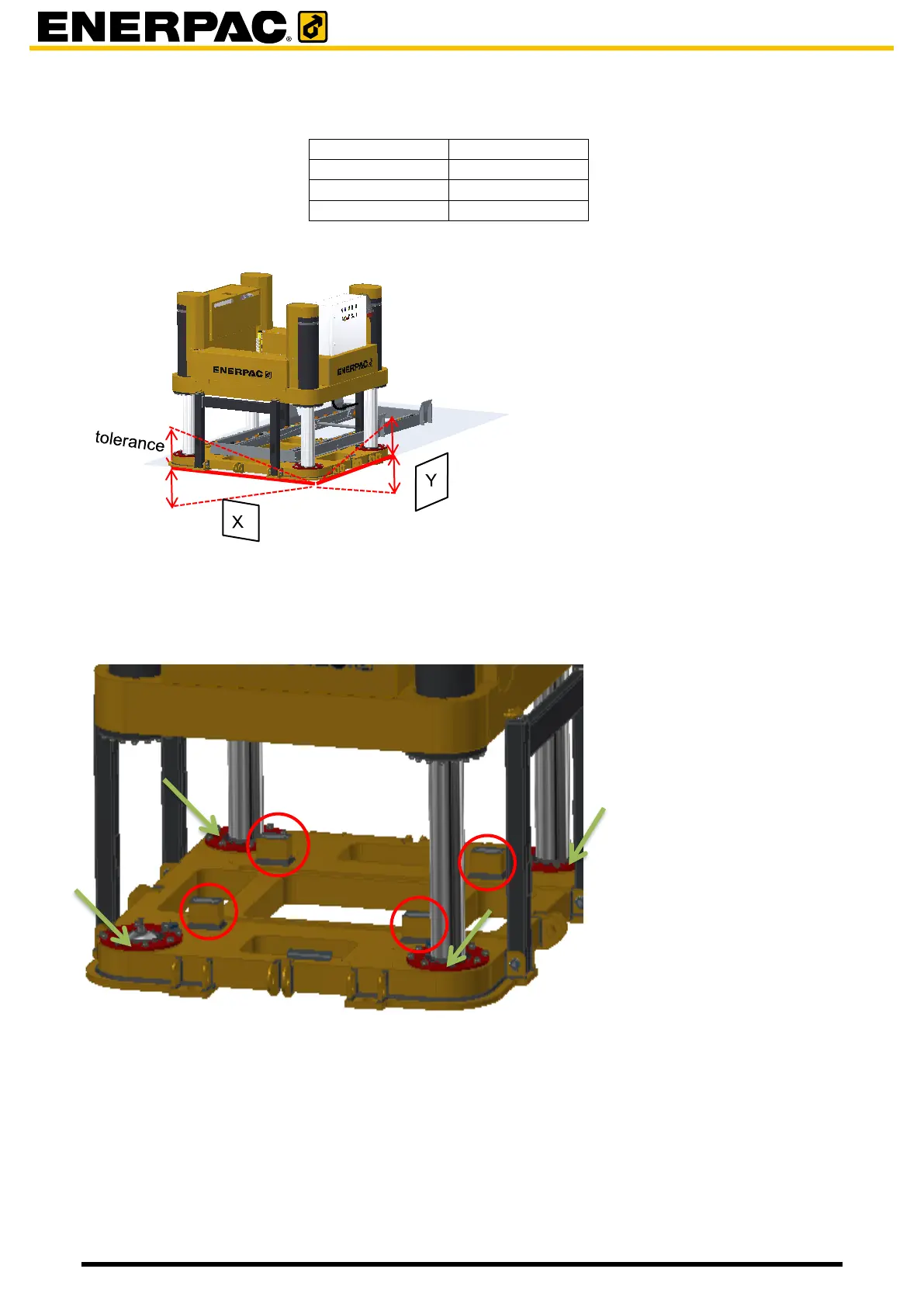

Perform measurements both in X and Y direction, for all units:
tolerance
