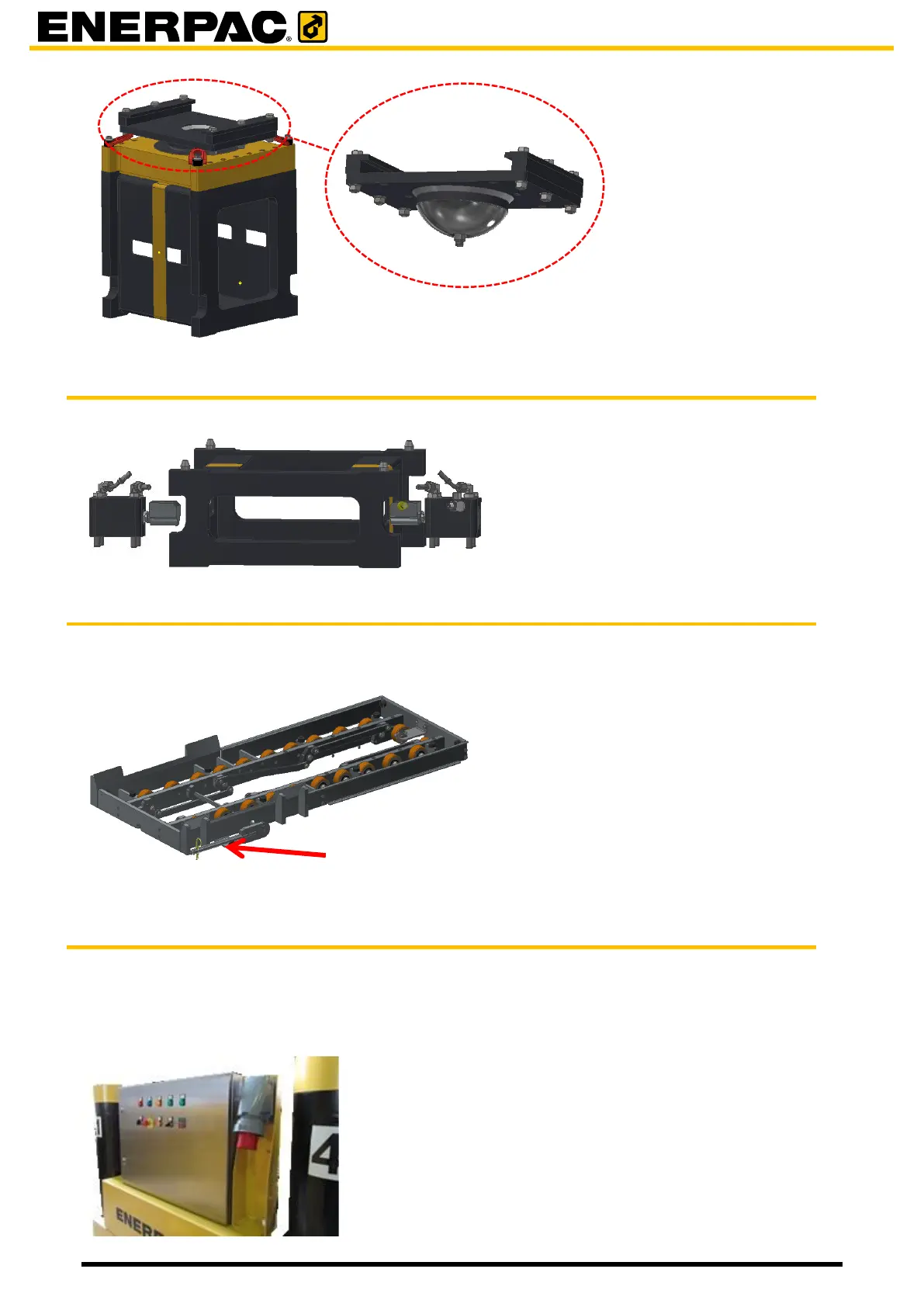

3.1.4 The mini-jacks
The mini-jacks fetch the barrels.
3.1.5 The insertion system
The insertion system is used to move a barrel into the system.
Barrels are put one by one on top of the insertion system by a forklift. Then the barrel is moved
into the system, either manually (by hand, using the handle) or automatically.
3.1.6 The electro cabinet
The electro cabinet contains the electrical systems. The number of cabinets differs per system.
Controls and indicators are mounted at the frontside of one electro cabinet. Using the controls,
the main jacks and the mini jacks of the unit can be controlled.
No other units can be controlled. The panel is intended to be used for setting-to-work and
maintenance purposes, not to perform a lifting operation.
Swivel
Handle
