Entrust Sigma DS3 User Manual

30 Using the Printer

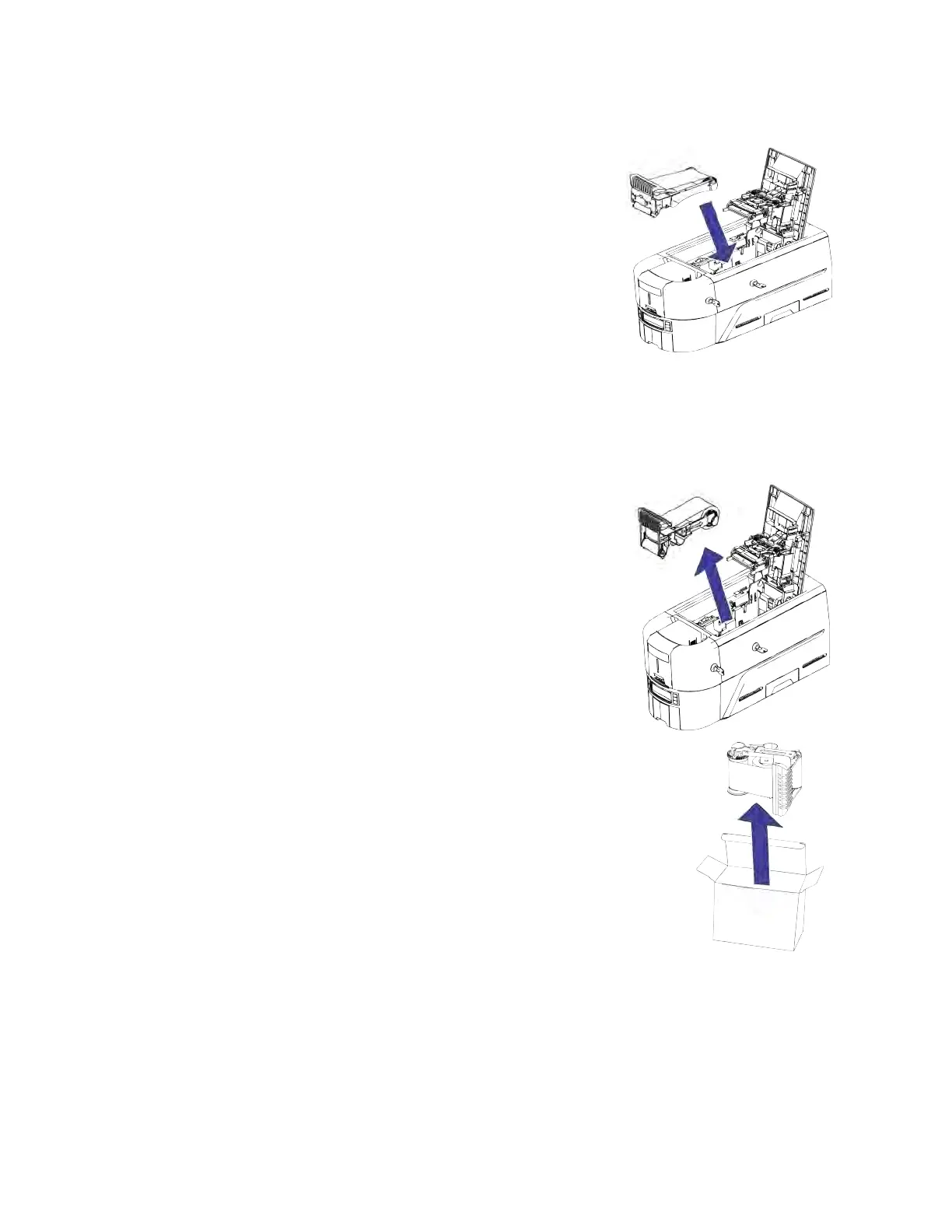

6. Install the print ribbon cartridge in the printer.
a. Hold the ribbon cartridge by the handle and lower it
into the printer with the handle toward the front of
the printer.
b. Position the ribbon cartridge in the guides.
7. Close the printer cover. Press down on the ridges on the
front of the cover to make sure that it latches completely.
Install the Prefilled Print Ribbon Cassette
The prefilled print ribbon cassette is an all-in-one, one-time-use print ribbon, cleaning roller, and
ribbon cartridge.
1. Open the printer cover and remove the used print ribbon
cassette.
Discard the used cassette.
2. Open the cassette package and remove the print ribbon
cassette.
The cassette is shipped in a closed position.

Entrust Sigma DS3 Specifications

General

Print Resolution	300 dpi
Card Capacity Input Hopper	100 cards
Card Capacity Output Hopper	25 cards
Power Supply	100-240 VAC, 50/60 Hz
Print Technology	Dye sublimation
Print Capabilities	Single or dual-sided
Card Thickness	0.010 inches to 0.040 inches
Supported Card Sizes	CR80 (85.6 mm x 54 mm)
Connectivity	USB and Ethernet
Operating System Support	Windows 7, 8, 10, Server 2008, 2012, 2016
Weight	5.49 kg (12.1 lbs)
Operating Temperature	15°C to 35°C (60°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Print Speed	Up to 250 cards per hour (YMCKT)
