Entrust Sigma DS3 User Manual

34 Print Cards
Print Cards
Make sure that cards are loaded in the printer or available to insert when prompted.
Print from ID Software
1. Select the template or design for the card.
2. Select the printer, if you use more than one printer.
3. Enter the data for the card. Follow the instructions for your software.
4. Capture the photo for the card, if necessary.
5. Click the Print button to send the card to the printer.
6. At the printer, insert a card into the printer, if necessary.
Print from Other Software
The following example illustrates how you can use Microsoft Word with the Card Printer Driver to
design and print a card. Refer to the XPS Card Printer Driver User’s Guide for complete
information about how to set up the Card Printer Driver to print a card from the application.

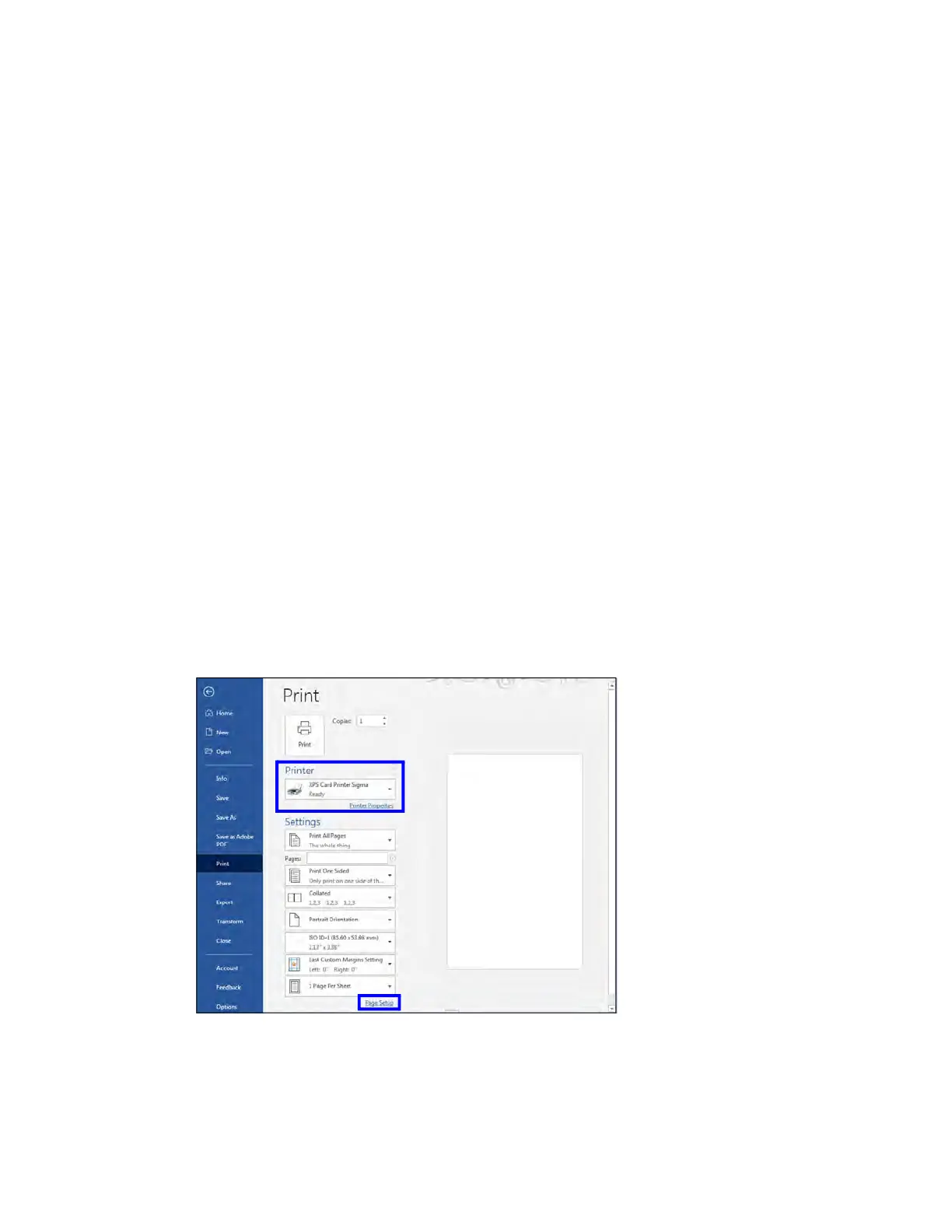

1. Open Microsoft Word and select File > Print.
2. Select the card printer as the current printer.

Entrust Sigma DS3 Specifications

General

Print Resolution	300 dpi
Card Capacity Input Hopper	100 cards
Card Capacity Output Hopper	25 cards
Power Supply	100-240 VAC, 50/60 Hz
Print Technology	Dye sublimation
Print Capabilities	Single or dual-sided
Card Thickness	0.010 inches to 0.040 inches
Supported Card Sizes	CR80 (85.6 mm x 54 mm)
Connectivity	USB and Ethernet
Operating System Support	Windows 7, 8, 10, Server 2008, 2012, 2016
Weight	5.49 kg (12.1 lbs)
Operating Temperature	15°C to 35°C (60°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Print Speed	Up to 250 cards per hour (YMCKT)
