18. Find the serial number or name of your material tray in the list and tap it.
→ The warning message appears asking if you are sure you want to recalibrate the existing material
tray. Confirm by tapping OK.

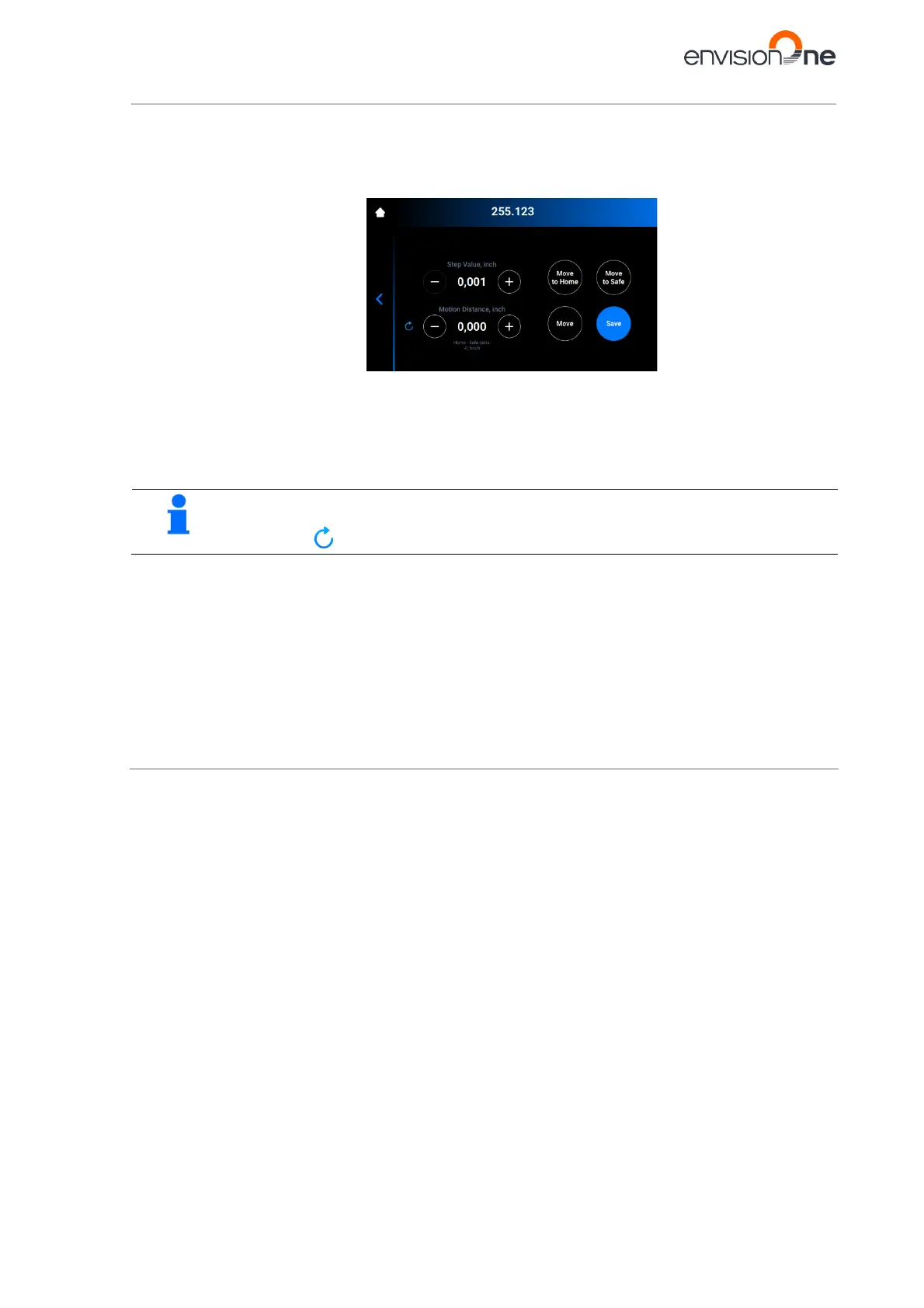

→ The following screen appears.
19. Tap Move to Home.
→ The build platform holder moves down the Z-axis to the current home position.
20. Set the value of a step by tapping the - and + icons of Step Value. This is the increment used for the
Motion Distance. The Step Value increments can be set to 0.01, 0.10, 1.00, and 10.00.
21. Set a motion distance of the platform by tapping the - and + icons of Motion Distance. This is the total
distance the platform moves.
The positive values move the platform up; the negative values move the platform down.
Tapping the icon resets the motion distance value to zero.
22. Reference the values in Step 10 to determine the new home position. The adjustment should be made
based on the average height of the calibration blocks.
a) If the average height measurement is below 4.90 mm (for the disposable tray – 4.80 mm), move
the platform up tapping [Move] the required number of steps.
b) If the average height measurement is above 5.10 mm (for the disposable tray – 4.95 mm) move
the platform down tapping [Move] the required number of steps.
23. Set the motion distance to the required adjustment. Tap [Move] to make the adjustment. Tap [Save].
→ The build platform holder starts moving up to the top of the Z-axis.
→ The new home position is set.
9.2 Using the Grey Mask
The Grey Mask is the Compensation Mask for the Envision One cDLM® printer. It is set in the factory.
To enable the Grey Mask on your printer, proceed as follows:
1. Tap Settings | Job Settings on the screen of the Control Software.
2. Make sure the [Yes] option is selected in the Use Compensation Mask field.
