4.5.15 Paper Load Roller
1. Open the Right Door, remove the one screw and remove the strap from the door.
2. Release the right and left shafts and remove the guide.
3. Remove the tab and pull off the Paper Load Roller from the shaft.
(See
“Figure 4-47 (p.197)”)
4. Take out the removed Paper Load Roller through the opening on the Multi Purpose
Tray mounting side.
4.5.16 Separation Roller
1. Remove the Right Door. (p.180)
2. Remove the Separation Roller Ass'y.
(See
“Figure 4-48 (p.197)”)

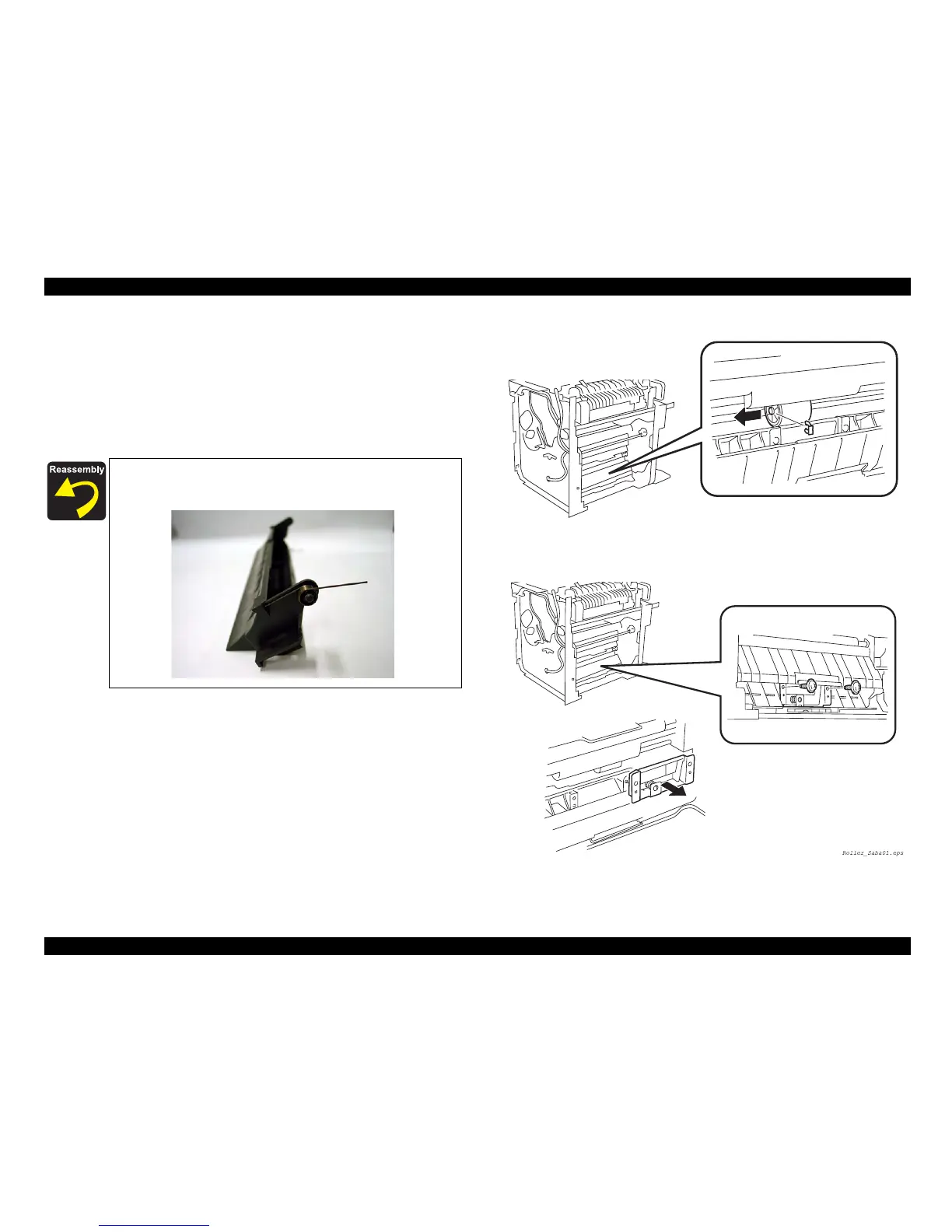

Figure 4-47. Paper Load Roller Removal
Figure 4-48. Separation Roller Removal
When installing the guide, set the torsion spring installed on the right
shaft in the proper position.
