4.3 Periodical Replacement Parts Removal
4.3.1 Secondary Transfer Roller
1. Open the Right Door.
2. Remove the Transfer Roller while opening the shaft holder (white color) levers found
at the left and right shaft ends of the Transfer Roller to unlock it.
(See
“Figure 4-2 (p.175)”)

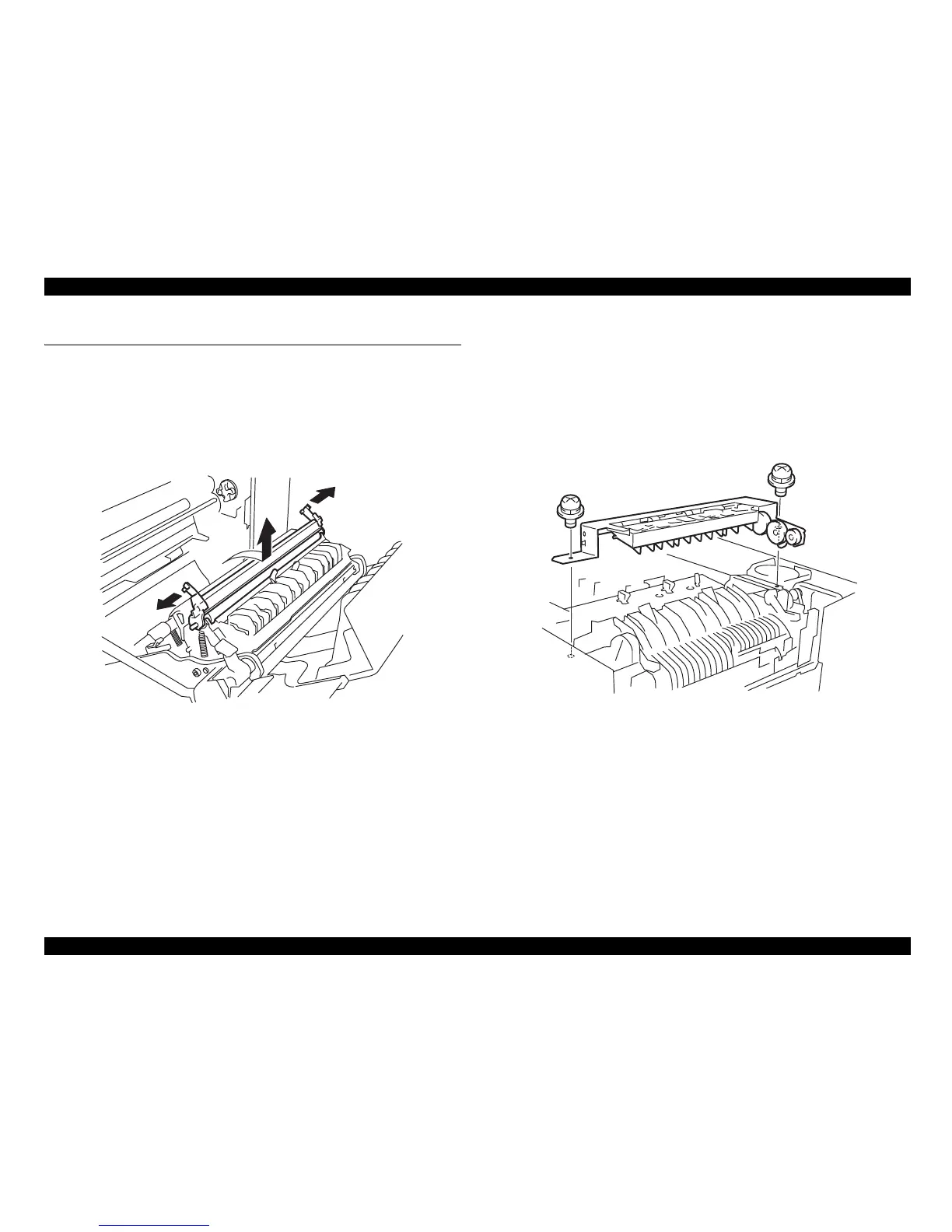

Figure 4-2. Transfer Roller Removal
4.3.2 Fuser Unit
1. Open the Front Cover.
2.
Remove the Top Cover. (p.177)
3. Open the Right Door.
4. Remove the Fuser Unit Cover. (2 screws)
(See
“Figure 4-3 (p.175)”)
Figure 4-3. Fuser Unit Cover Removal
