Epson AcuLaser C900 - Fusing Cooling Fan Motor (M5)

EPSON AcuLaser C1900/AcuLaser C900 Revision B
Disassembly and Assembly Printer Main Parts Disassembly and Assembly 196
4.5.14 Fusing Cooling Fan Motor (M5)
1. Remove the Rear Cover. (p.178)
2. Disconnect the connectors (PJ16, PJ17, PJ29) from the PWB-A board and then remove
the wires from the code folder.
3.
Remove the Right Door. (p.180)
4. Remove the Right Door Cover. (3 screws)
(See
“Figure 4-44 (p.196)”)
5. Remove the Right Front Cover. (1 screw)
6. Remove the Paper Eject Unit. (6 screws)
(See
“Figure 4-45 (p.196)”)
7. Remove the wires from the code folder.
8. Remove the Fusing Cooling Fan Motor. (2 screws)
(See
“Figure 4-46 (p.196)”)

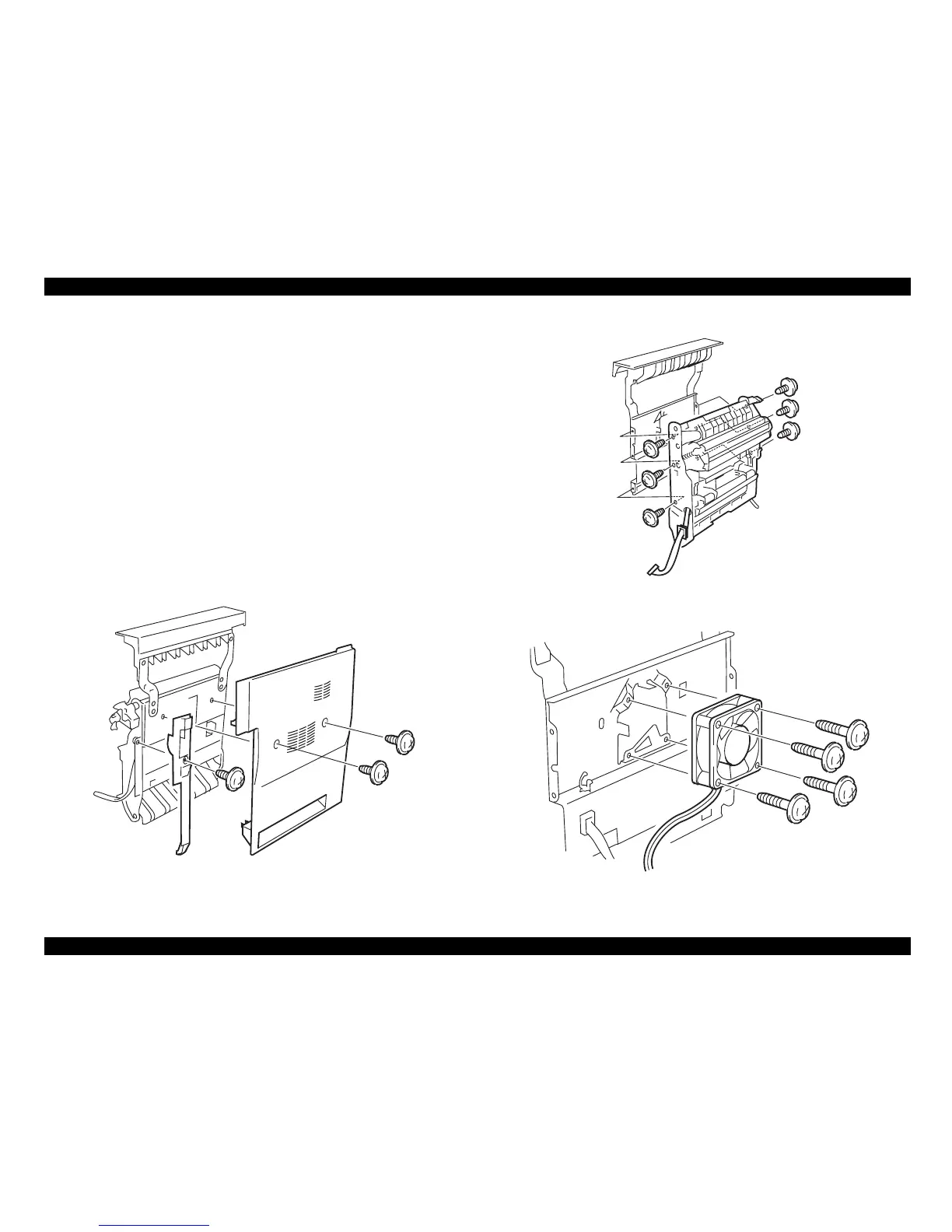

Figure 4-44. Right Door Cover / Right Front Cover Removal
Figure 4-45. Paper Eject Unit Removal
Figure 4-46. Fusing Cooling Fan Motor Removal
