4.6 Extension Unit Disassembly and Assembly
4.6.1 The 2nd Paper Load Roller
1. Separate the 500-sheet Cassette Unit from the printer body.
2. Remove the Paper Load Roller as shown in Fig. 4-60.
1. Lift the knob of the Paper Load Roller up.
2. Put the Paper Load Roller aside to the right direction.
3. Remove the Paper Load Roller.
3. Install a new Paper Load Roller according to the reverse order of the above procedure 2.

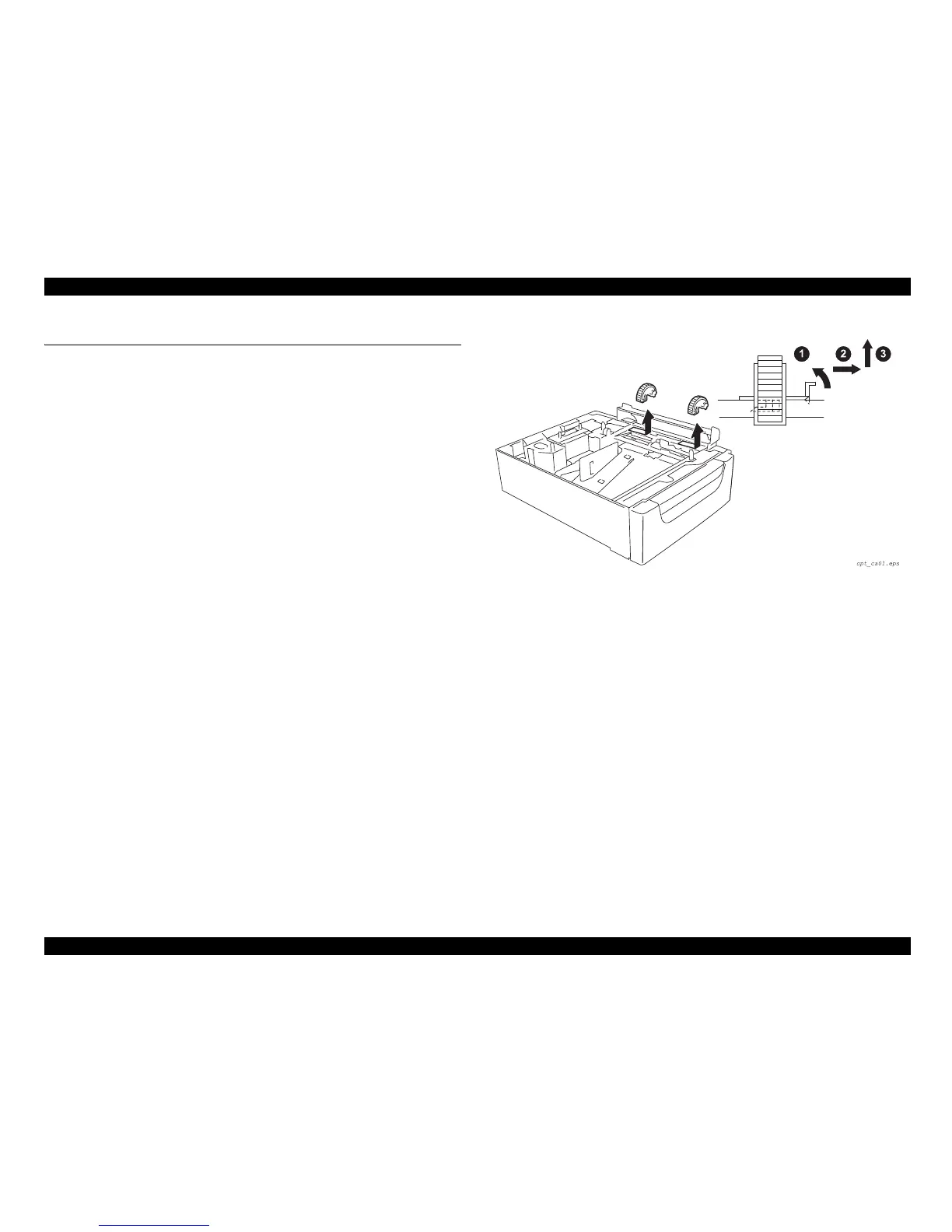

Figure 4-61. The 2nd Paper Load Roller Removal
