EPSON AcuLaser C9200N Revision D
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 164
Confidential

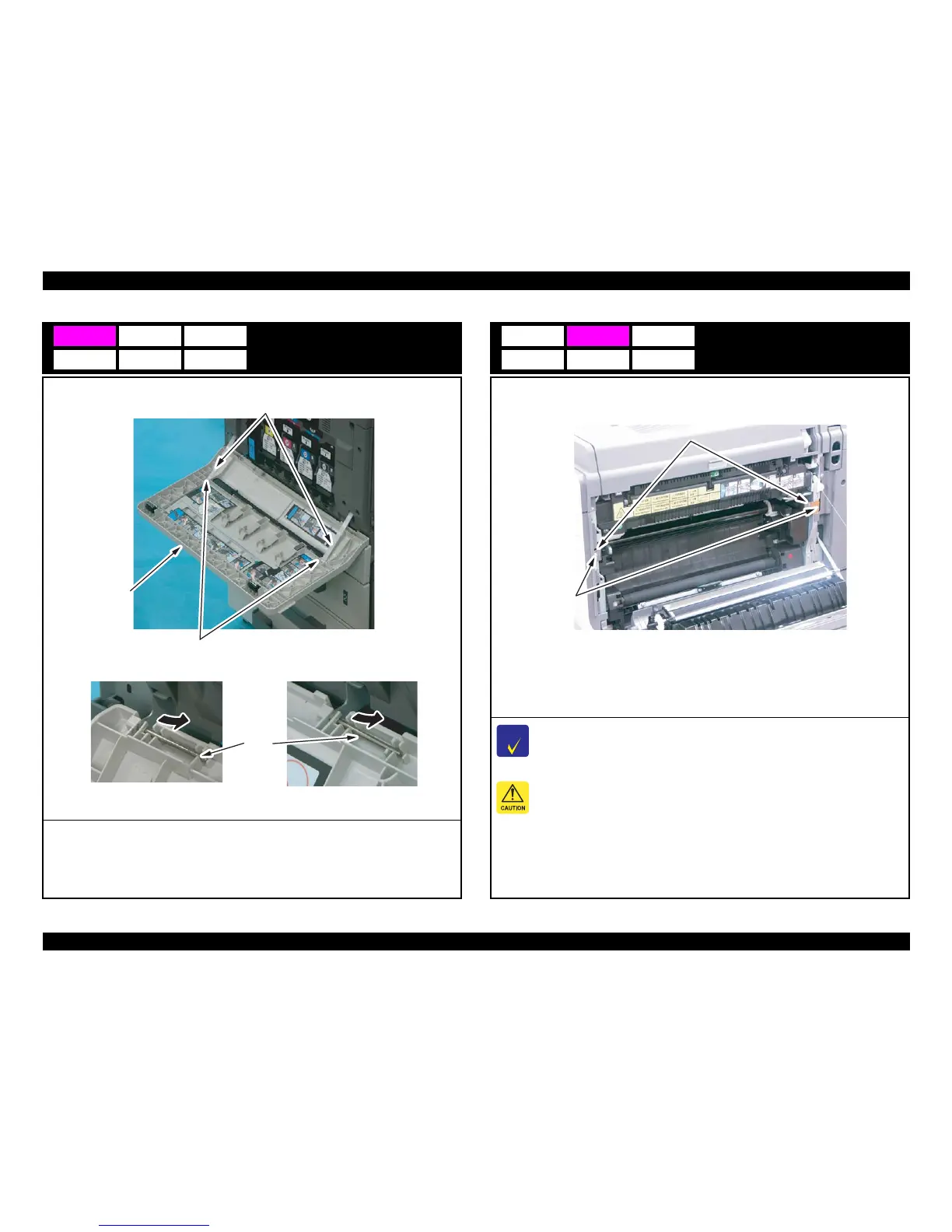

Front Door
1. Open the Front Door.
2. Remove the Screw [1] each to remove the Right and Left Stoppers [2].
3. Pull out the Right and Left Pins [3] to remove the Front Door [4].
A1
[1]
[4]
[2]
4038F2C038DB
[3]
4038F2C039DA
Transfer Belt Unit
C H E C K
P O I N T
The Transfer Belt Unit is included in "Transfer Kit" as a service part. Additionally, the
2nd Image Transfer Roller, Ozone filter, and Dust Filter are also included in "Transfer
Kit". Replace them at the same time. Refer to (Refer to Chapter 6
“MAINTENANCE”) (p331))
After the Transfer Belt Unit has been removed from the Main Unit for other purposes
than replacement, make sure to put it in the shipping plastic sheet whose color is
black, or wrap it in the light shielding cloth and store it in a dark place.
1. Open the Right Door.
2. Remove two Screws [1] and release the Lock of the Transfer Belt Unit [2].
B1
[1]
[2]
4039F2C005DA
