EPSON AcuLaser C9200N Revision D
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 277
Confidential

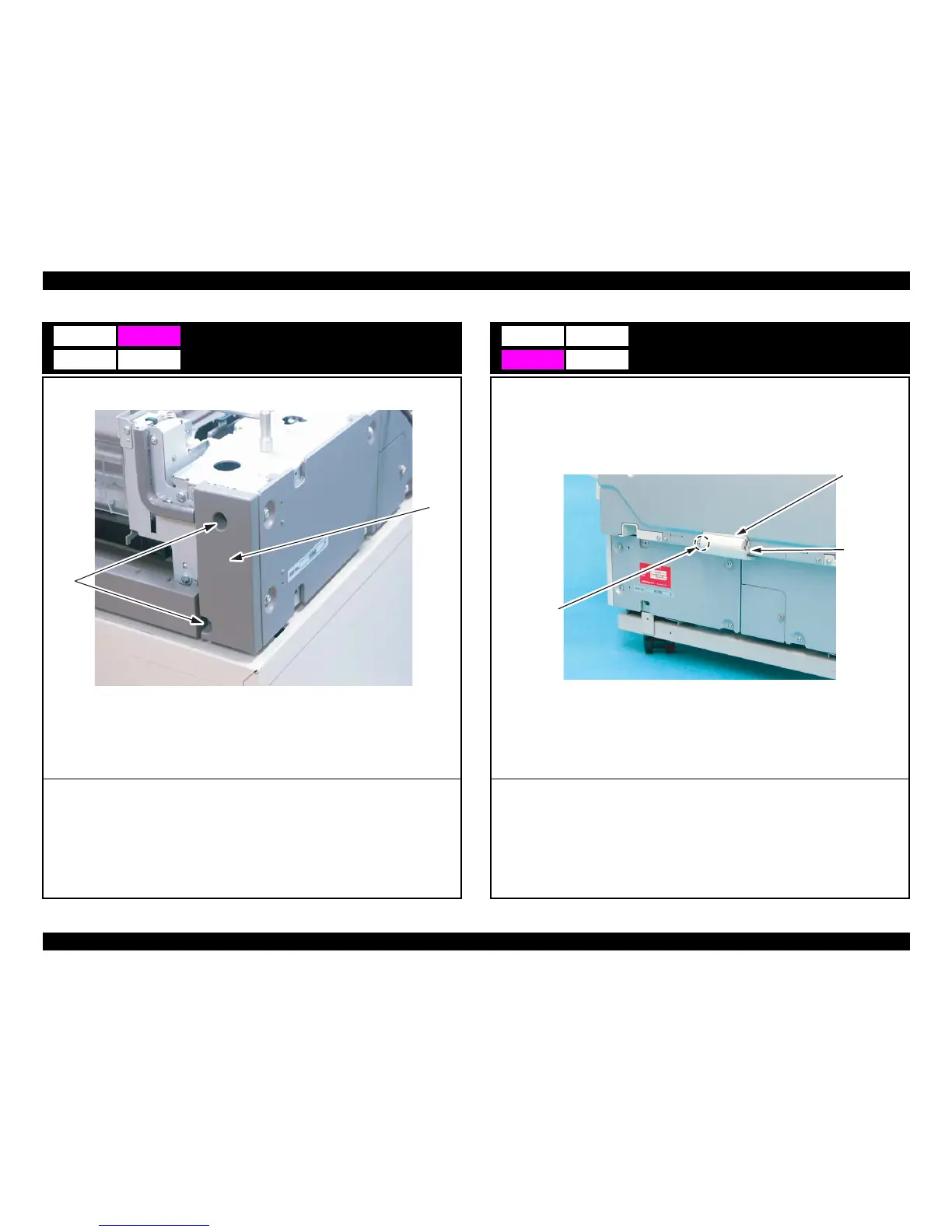

Right Rear Cover
1. Remove two Screws [1] and remove the Right Rear Cover [2].
B1
4039F2C050DA
[1]
[2]
Rear Right Cover + Rear Left Cover
1. Release two Tabs [1], remove the Connector Cover [2].
C1
[1]
[2]
[1]
