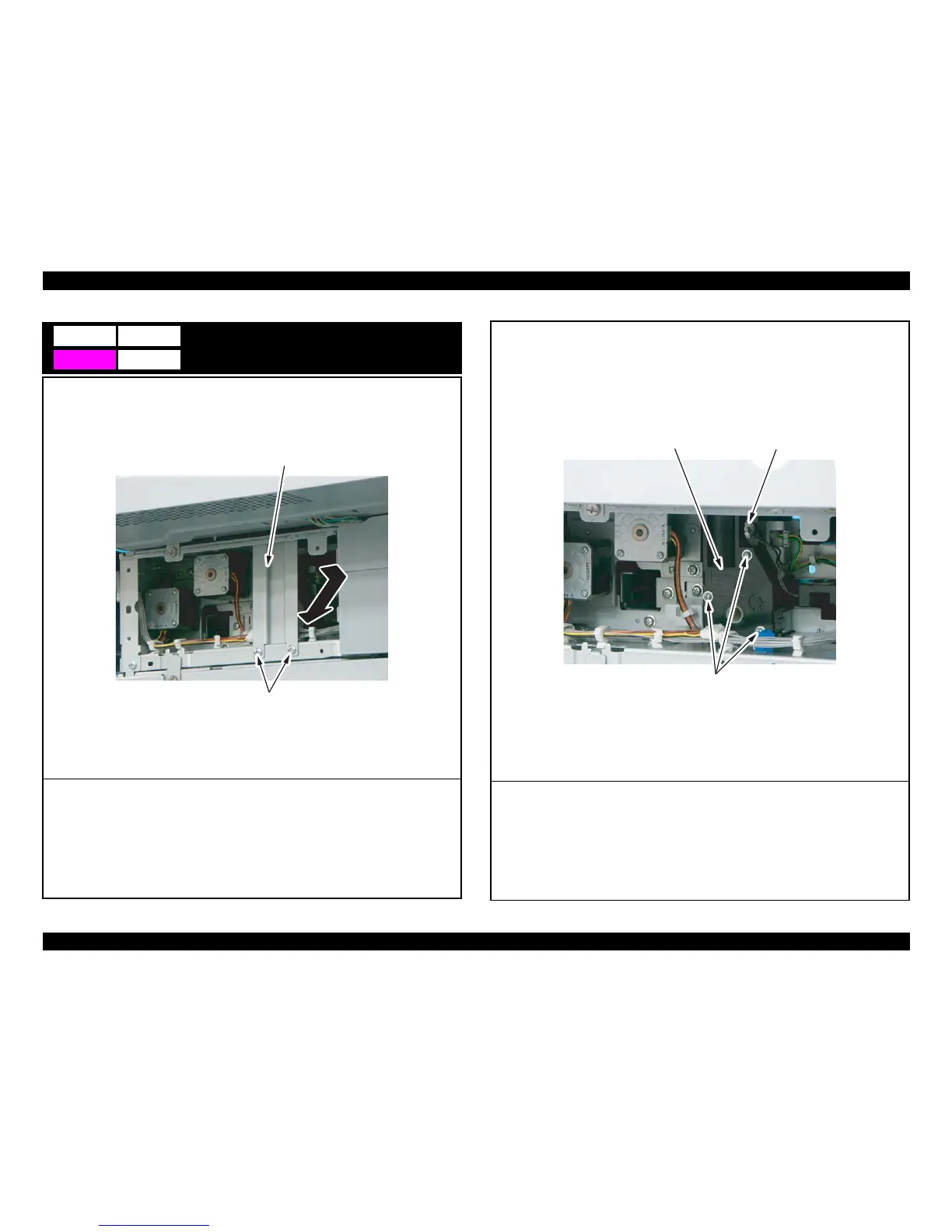

Lift-Up Motor (M3-PC)
1. Slide out the Optional Cassette.
2. Remove two Screws [1], and remove the Reinforcement plate [2].
C2
[1]
[2]
4038F2C165DA
3. Disconnect the Connector [3].
4. Remove three Screws [4], and remove the Lift-Up Motor [5].
[3]
[4]
[5]
