EPSON AcuLaser C9200N Revision D
DISASSEMBLY AND ASSEMBLY Main Unit Disassembly/Reassembly 287
Confidential

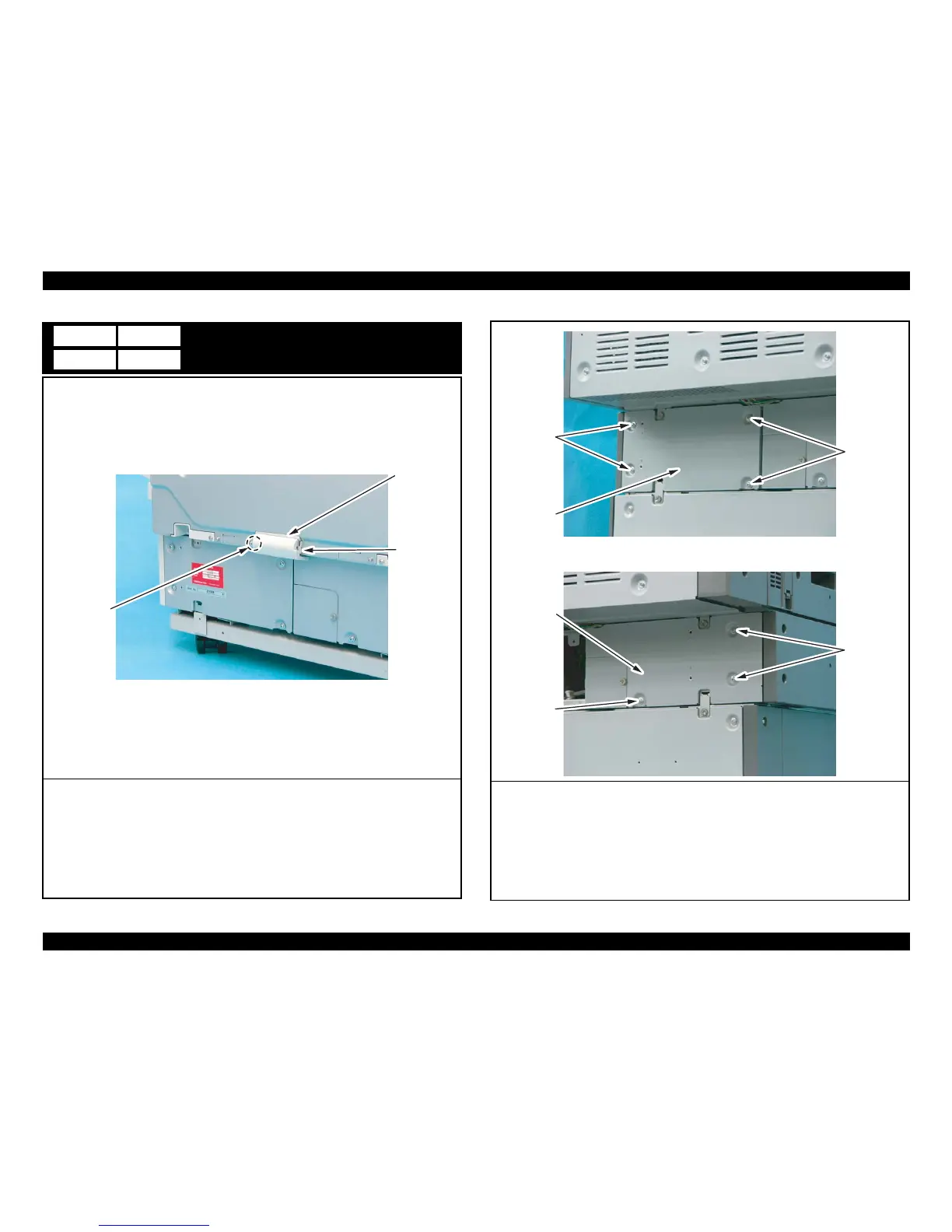

Rear Right Cover + Rear Left Cover
1. Release two Tabs [1], remove the Connector Cover [2].
A1 B1
[1]
[2]
[1]
2. Remove four Screws [3], and remove the Rear Right Cover [4].
3. Remove three Screws [5], and remove the Rear Left Cover [6].
[6]
[5]
[5]
[3]
[3]
[4]
4038F2C048DA
