2.2.11.2 Drive

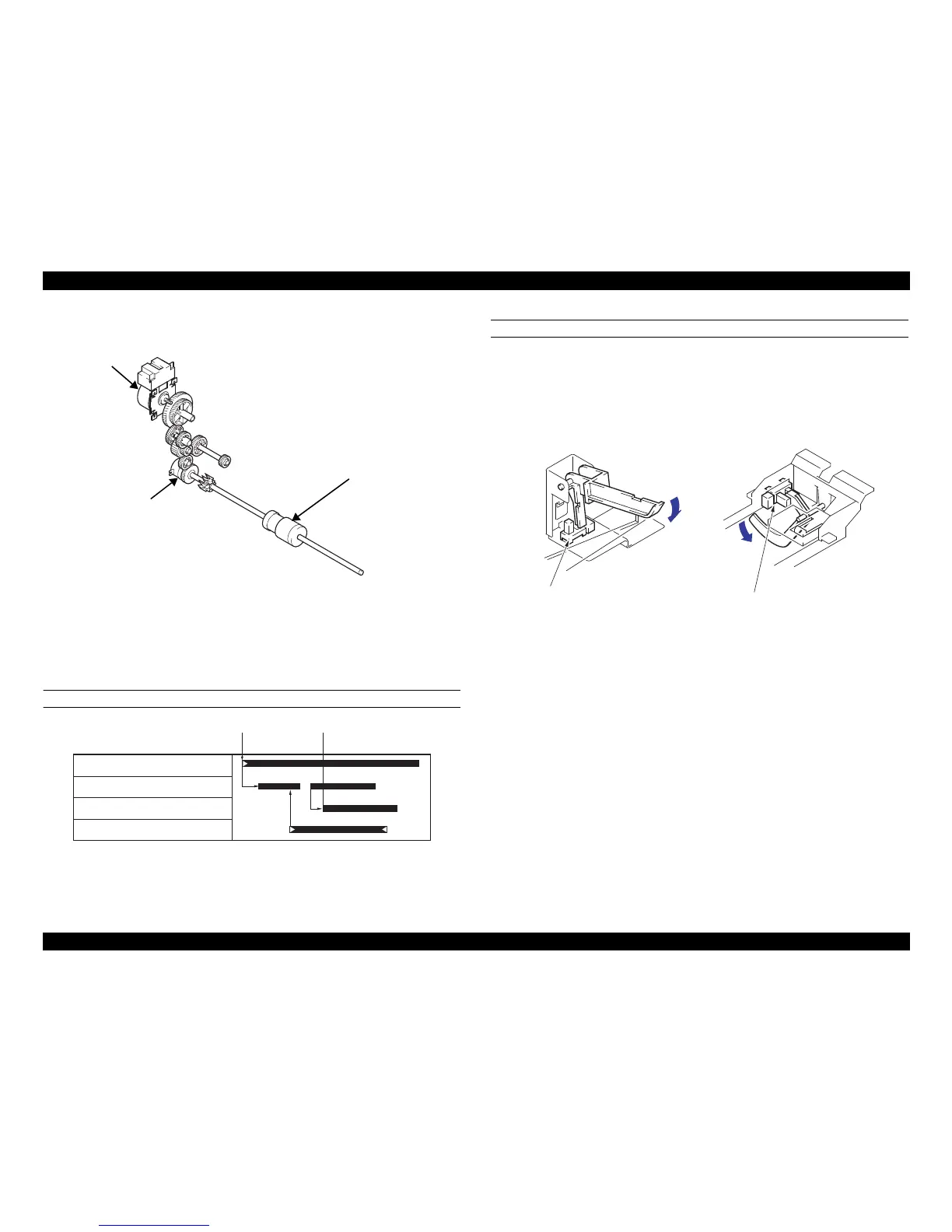

Figure 2-50. Drive overview
2.2.11.3 Operation
PAPER TAKE-UP CONTROL
PAPER NEAR-EMPTY/PAPER EMPTY DETECTION
 When the Standard cassette Paper Near-empty Sensor is blocked, a
corresponding warning display is given on the control panel.
 The Standard cassette Paper Empty Sensor detects a paper empty
condition.
Figure 2-51. Paper Near-Empty/Paper Empty detection
4038T2C027DA
Std. cassette Feed Roller
Std. cassette Paper Feed Clutch (CL2)
Main Motor (M1)
4038T2C138AA
Main Motor (M1)
Paper Feed Clutch (CL2)
Registration Roller Clutch (CL1)
Registration Roller Sensor (PC1)
Start Key ON Registration Roller ON
4036ma2116c0
4036ma2038c1
Std. cassette Paper Empty Sensor
(PC10)
Std. cassette Paper Near-empty Sensor
(PC11)
An Empty ConditionA Near-empty Condition
