2.3.2.3 Operation
SWITCHBACK MECHANISM
 Switchback operation
The Paper Exit Roller of the main body is used to subject the 1-sided print
to a switchback sequence so that the 1-sided print is to be transported
through the Duplex Unit.
Switchback operation
 Paper Exit Roller drive coupling mechanism
When the Duplex Unit is mounted, the tip of the Duplex Unit Lever raises
the Idle Lever to cut off the drive from the main body (Fusing Rollers) and
the Paper Exit Roller is driven by the Switchback Motor.

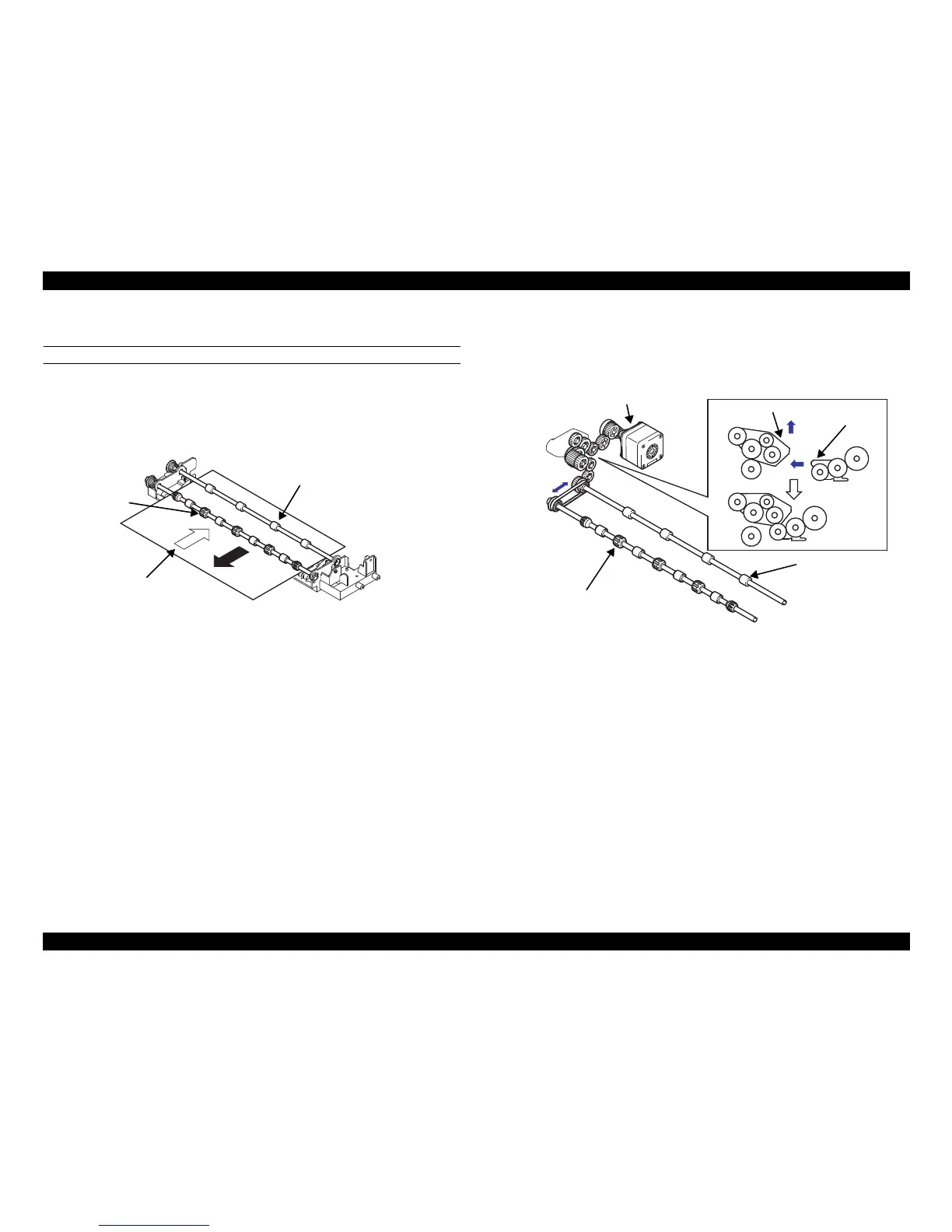

Figure 2-87. Paper Exit Roller drive coupling mechanism
 Switchback Motor Control
Rotation of the Switchback Motor is controlled by the signals output from
the Duplex Control Board.
4066T2C516DA
Transporting the Paper into
Duplex Unit
Paper Exit Roller/1
Paper Exit
Roller/2
4066T2C518DA
Paper Exit Roller/2
Idle Lever
Switchback Motor (M1 DU)
Duplex Unit
Lever
Paper Exit Roller/1
