EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
PRODUCT DESCRIPTION Maximum Document Size and Placement 14
TPU Model (Perfection V100 Photo/V200 Photo) Scanning Range for Transparent Document
Size 32.9 x 244.4 mm (horizontal x vertical)

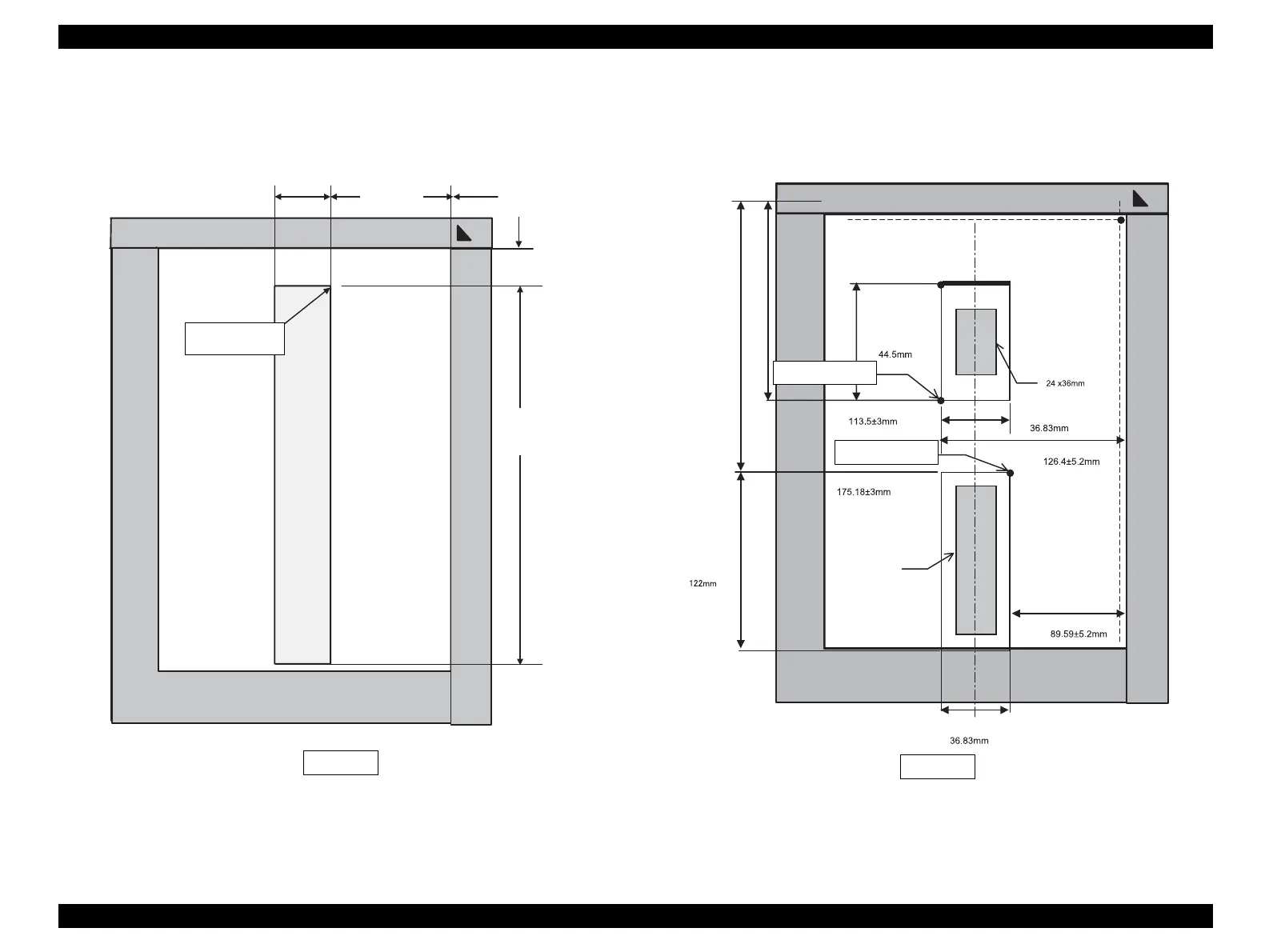

Figure 1-7. Scanning Range for Transparent Document
AFL Model (Perfection V350 Photo) Scanning Range for Transparent Document
Size Strip film 36.83 x 44.5mm(horizontal x vertical)
Slide film 36.83 x 112mm(horizontal x vertical)
Figure 1-8. Scanning range for transparent document
Note *1: Origin Point for Strip film scanning
*2: Origin Point for Slide/3-frame film scanning
236mm
32.9 mm
244.4 mm
91.85mm
23.6 mm
Front
Origin Point
Strip Film Flame
Scan area:
First bit:
First bit:
Slide & 3 film
frame
Scan area:
Scan area:
Scan area:
First line:
First line:
Origin Point*
1
Origin Point*
2
Front
