EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
DISASSEMBLY/ASSEMBLY Disassembly of Main Unit 35
4.3.2 Document Cover
1. Disengage the Hinge (4.3.1 Hinge Disengagement on page 34), and remove the
Document Cover.
4.3.3 Upper Housing
1. Disengage the Hinge (4.3.1 Hinge Disengagement on page 34), remove the
Document Cover/TPU Unit/AFL Unit.
2. Remove the two screws (C.B.P. 3x8, 5-7 kgf.cm) that secure the Upper Housing.
3. Lift up the Upper Housing from the Hinge side, and release hook A near the
Function Buttons.
4. Slide the Upper housing to the other side of the Hinge, releasing three hooks, and
remove the Upper Housing from the Lower Housing.

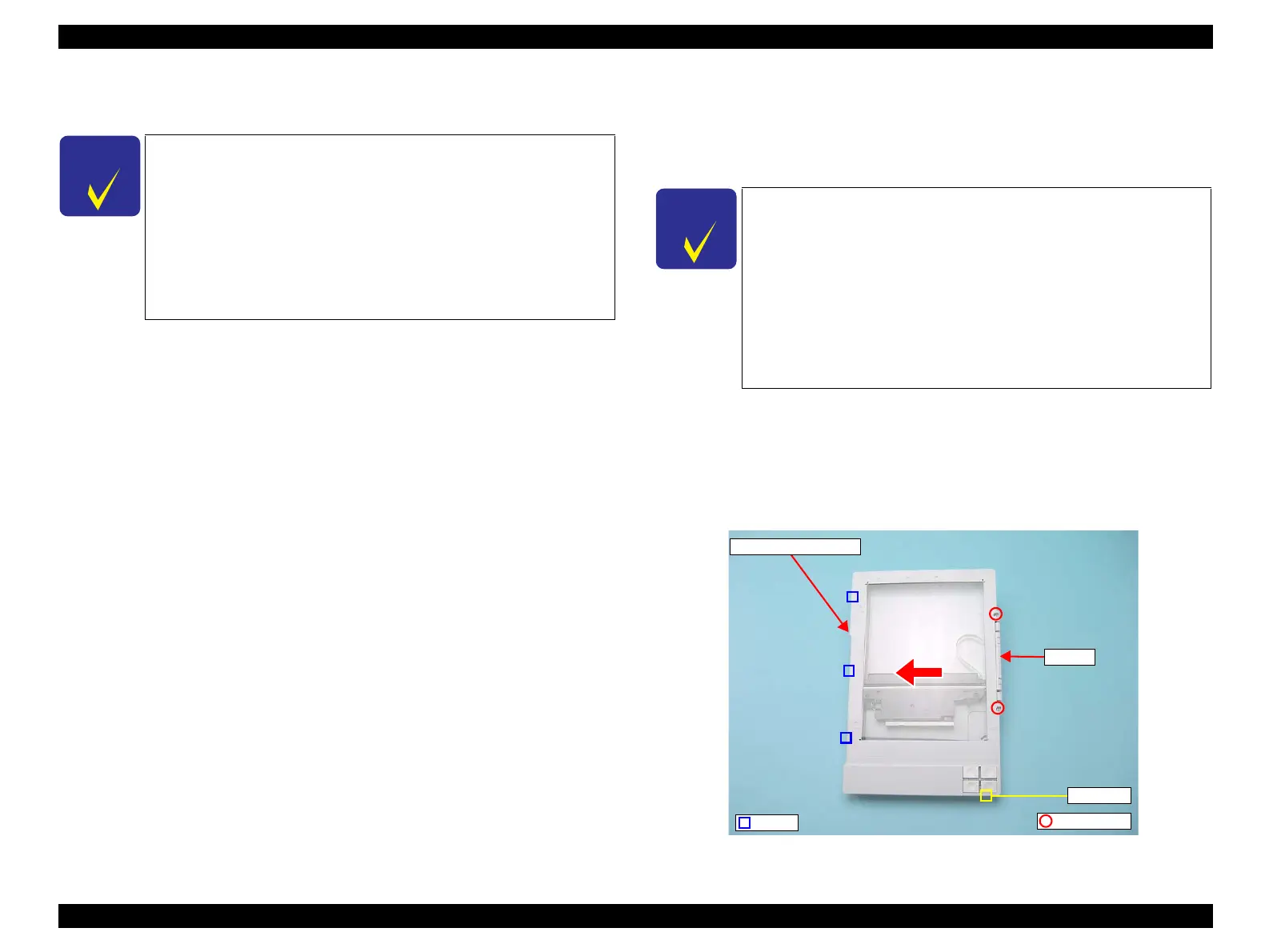

Figure 4-4. Removing the Upper Housing
C H E C K
P O I N T
Instead of the Document Cover, Perfection V100 Photo/V200
Photo/V350 Photo are equipped with TPU Unit/AFL Unit.
For disassembly of the TPU Unit/AFL Unit, see the sections given
below.
 Perfection V100 Photo/V200 Photo:
4.4.1 TPU Upper Housing P43
 Perfection V350 Photo:
4.5.1 Separation of AFL Upper Housing Assy/AFL Lower Housing
Assy P46
C H E C K
P O I N T
 Even after disengaging the Hinge, Perfection V100 Photo,
Perfection V200 Photo and Perfection V350 Photo are
connected to the main unit with a cable, therefore place the
TPU/AFL unit next to the main unit to carry on the procedures
below.
 The Perfection V10 was used to illustrate the disassembly of the
scanner main unit, therefore the color or some parts may differ
from the Perfection V100 Photo/V200 Photo/V350 Photo. The
procedures themselves, however do not differ between the three
models.
C.B.P. 3x8
Hook
Hinge
Upper Housing
Hook A

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
