DISASSEMBLY/ASSEMBLY Disassembly of Main Unit 39
4.3.7 CR Motor
1. Remove the Panel Board (4.3.5 Panel Board on page 37)
2. Remove the two screws (C.B.P. 3x8, 5-7 kgf.cm/C.B.S 3x5, 6-8 kgf.cm) that
secure the Grounding Plate, and remove it.
Figure 4-14. Removing the Grounding Plate
3. Disconnect the CR Motor connector (CN7) from the Main Board.
(Figure 4-12 on page 38 )(Figure 4-13 on page 38 )
4. Release the CR Motor Cable from the rib of the Lower Housing.
The Main Board differs between the Perfection V10, the Perfection
V100 Photo/V350 Photo and the Perfection V200 Photo.
When replacing the Man Board, make sure to replace with a correct
one.
 Perfection V10: B184MAIN
 Perfection V100 Photo/V350 Photo: B184MAIN-B
 Perfection V200 Photo: B188MAIN
When reassembling the CR Motor, make sure to route the CR
Motor Cable through the tabs of the Lower Housing as shown
below. Any slack in the cable may cause entanglement of the cable
when the Carriage moves.

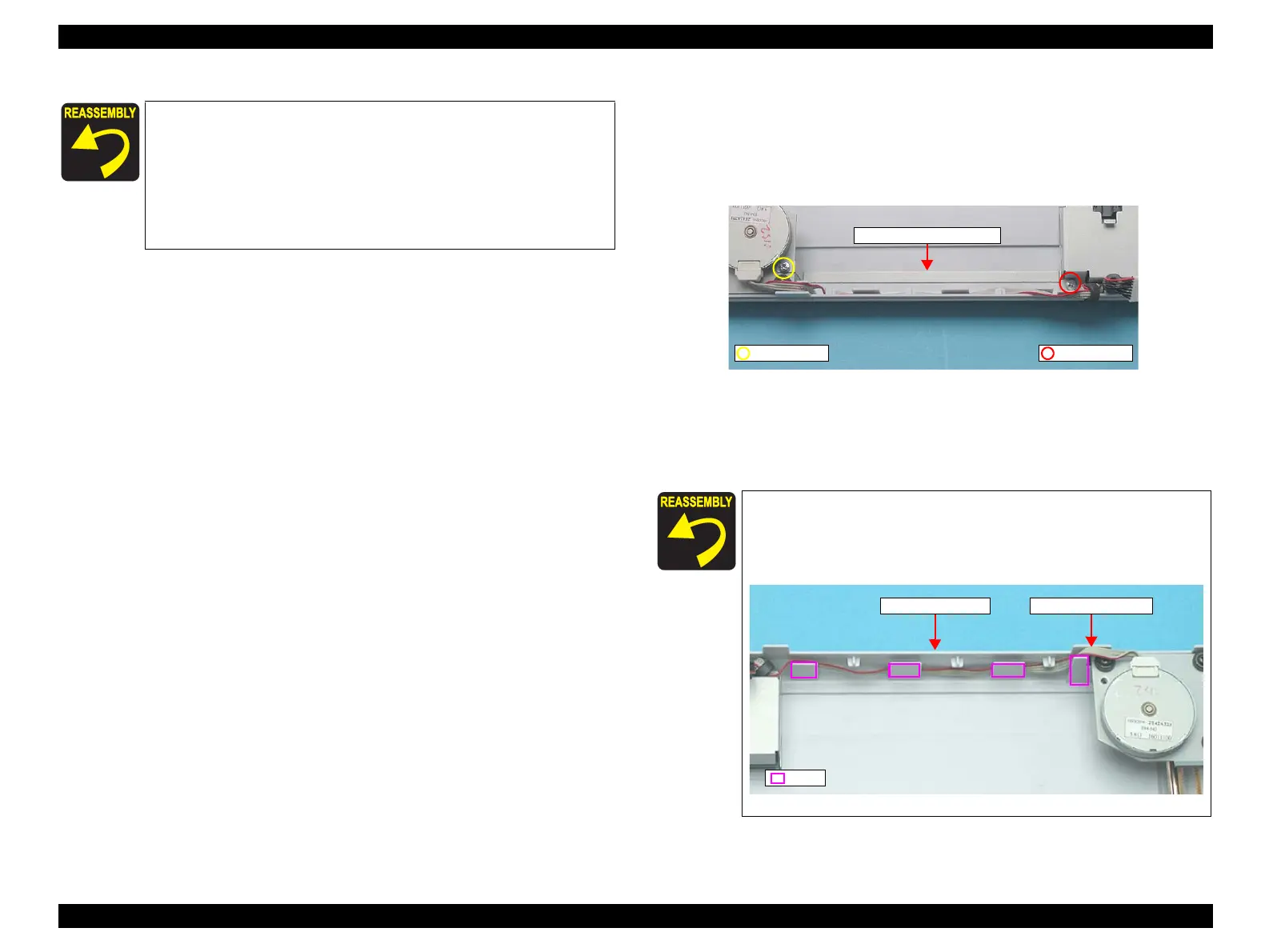

Figure 4-15. Routing the CR Motor Cable
Grounding Plate
C.B.P. 3x8C.B.S. 3x5
Tab
Lower Housing CR Motor Cable
