EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
DISASSEMBLY/ASSEMBLY Disassembly of TPU 43
4.4 Disassembly of TPU
4.4.1 TPU Upper Housing
1. Disengage the Hinge. (4.3.1 Hinge Disengagement on page 34)
2. Slide the TPU Housing Mat in the direction of the arrow, releasing it from the
sockets of the TPU Unit and remove it.

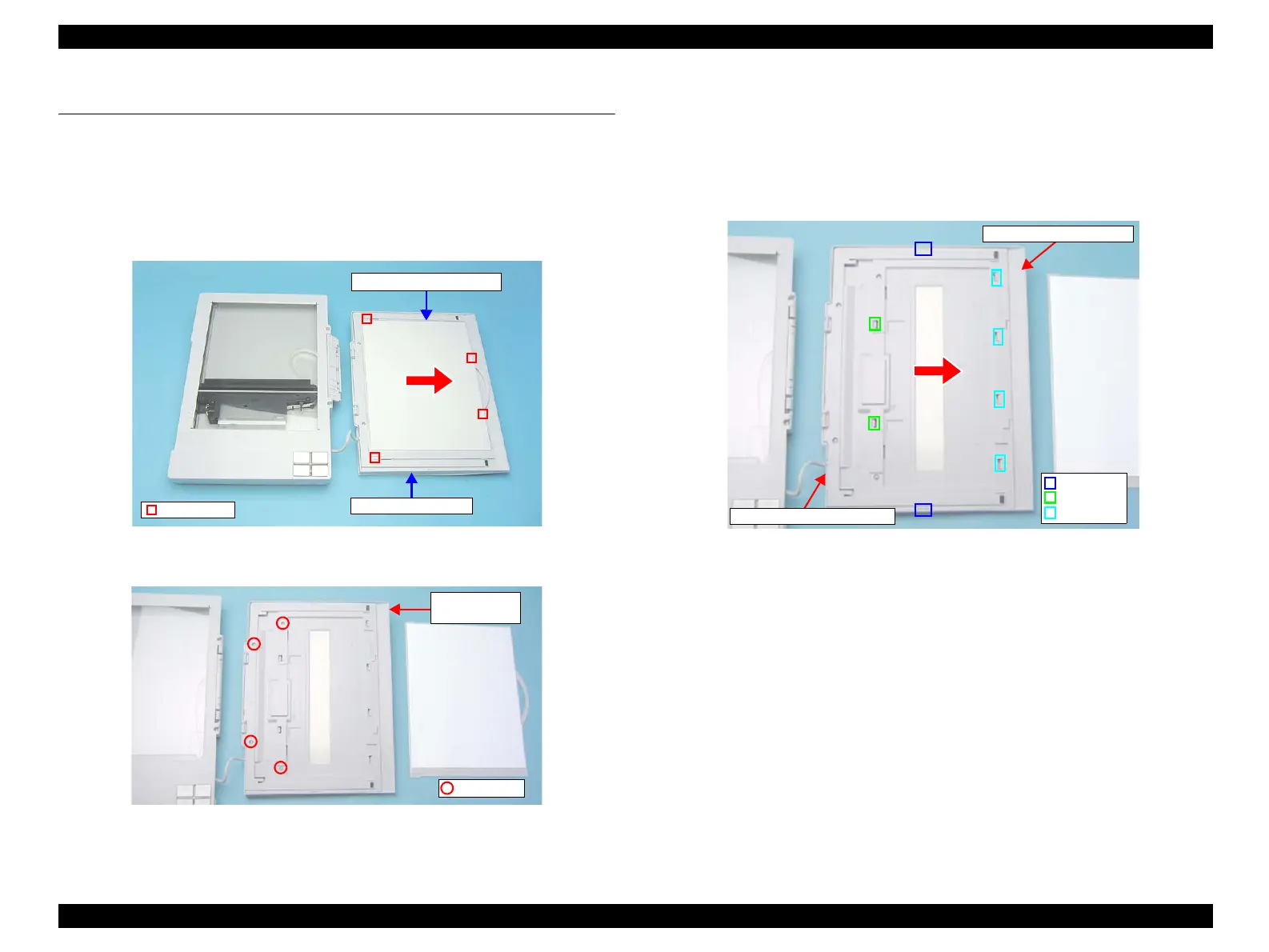

Figure 4-24. Removing the Housing Mat
3. Remove the four screws (C.B.P 3x8, 5-7 kgf.) that secure the TPU Upper Housing.
Figure 4-25. Removing the TPU Upper Housing (1)
4. Using a flat-blade screwdriver, push outward on the left and right sides of the TPU
Upper Housing frame to widen it and release the two Hook A.
5. Disengage the two Hook B by pinching them.
6. Slide the TPU Lower Housing in the direction of the arrow, then release the four
Hook C, and remove the TPU Upper Housing.
Figure 4-26. Removing the TPU Upper Housing (2)
Socket
TPU Housing Mat
TPU Unit
C.B.P. 3x8
TPU Upper
Housing
Hook A
Hook B
Hook C
TPU Upper Housing
TPU Lower Housing

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
