EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
DISASSEMBLY/ASSEMBLY Disassembly of AFL 48
4.5.3 AFL Inverter Board/AFL Inverter Board Cover
1. Separate the AFL Upper Housing Assy/AFL Lower Housing Assy.
(4.5.1 Separation of AFL Upper Housing Assy/AFL Lower Housing Assy on page
46)
2. Disconnect CN6 connector from the AFL Main Board.
(Figure 4-36 on page 47 )
3. Remove the Cover Sheet.

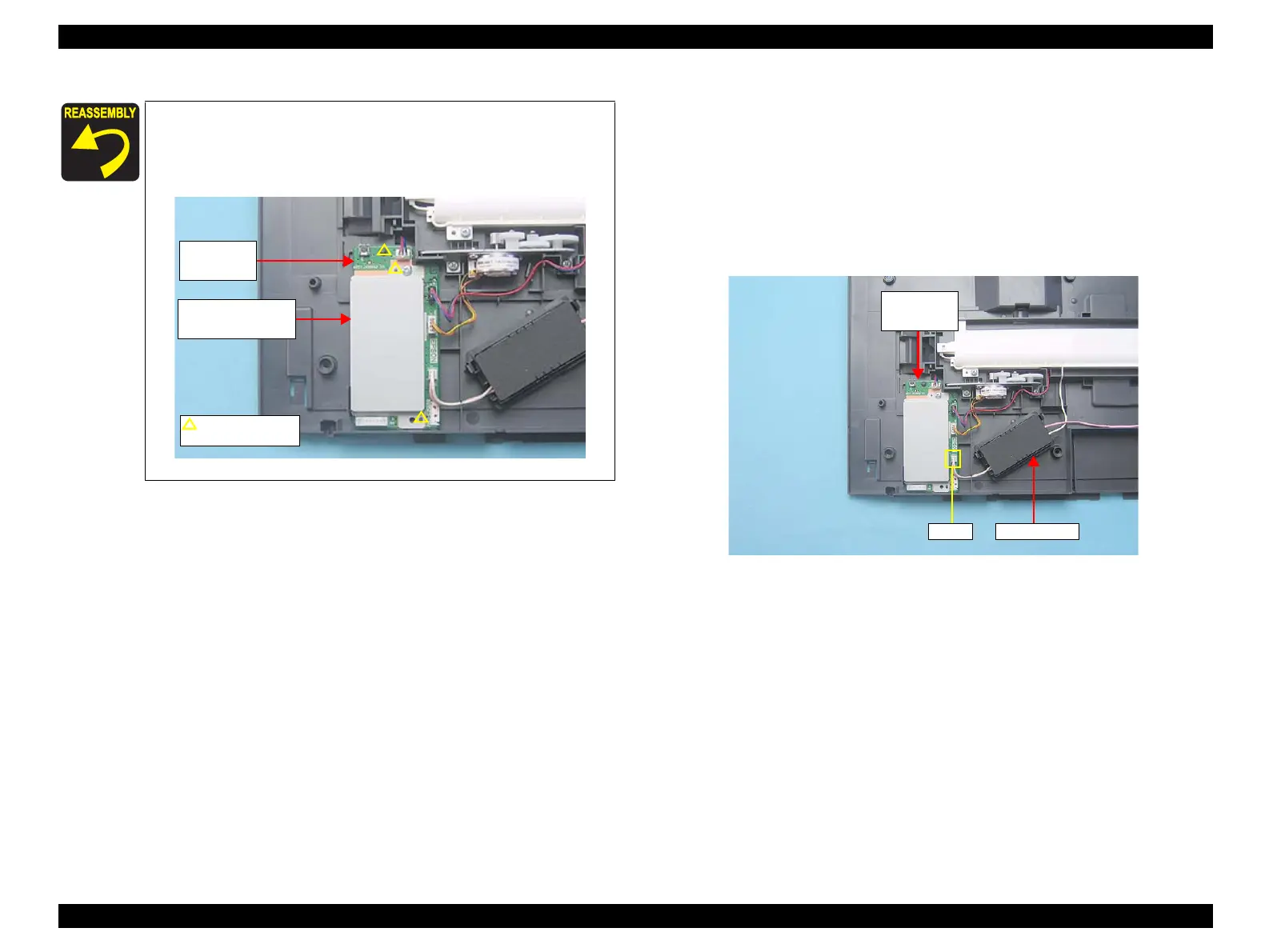

Figure 4-38. Removing the AFL Inverter Board(1)
When installing the AFL Main Board, match the guide pin and
the positioning hole.
When reassembling the AFL Main Board Cover, match the two
guide pins and the positioning holes.
Figure 4-37. Installing the AFL Main Board
AFL Main
Board
AFL Main Board
Cover
Guide pin and
positioning hole
Cover Sheet
AFL Main
Board
CN6
