EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
DISASSEMBLY/ASSEMBLY Disassembly of AFL 53
4.5.8 Damper/Film Holder
1. Separate the AFL Upper Housing Assy/AFL Lower Housing Assy. (4.5.1
Separation of AFL Upper Housing Assy/AFL Lower Housing Assy on page 46)
2. Push the Film Holder to release the lock, and open the Film Holder.
3. Turn over the AFL Upper Housing.
4. Remove the screw (C.B.P 3x8, 5-7 kgf.) that secures the Damper, and remove the
Damper and the Film Holder.

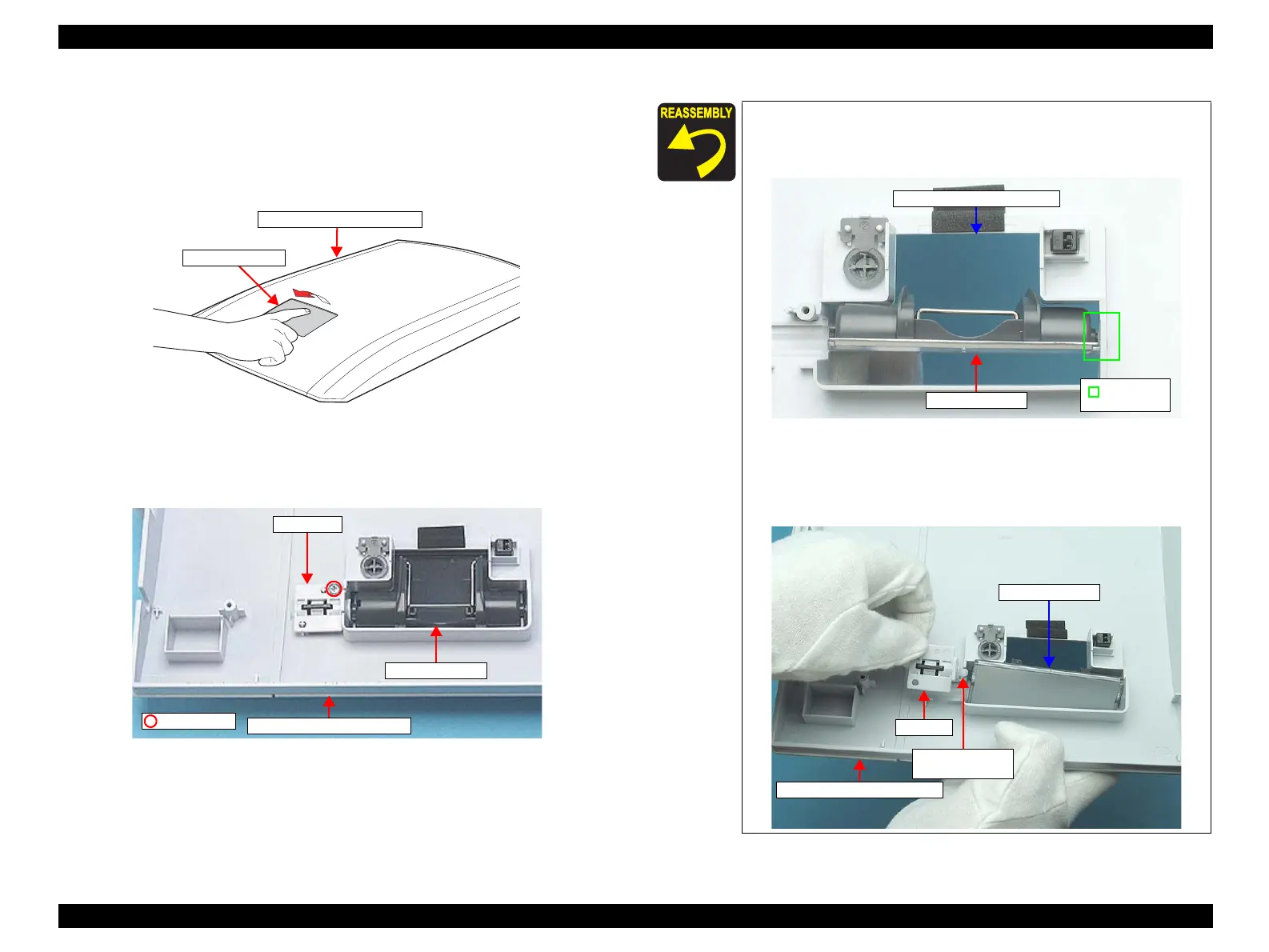

Figure 4-48. Removing the Damper
Film Holder
AFL Upper Housing
C.B.P. 3x8
Damper
AFL Upper Housing
Film Holder
Install the Damper/Film Holder following the steps below.
1. With the Film Holder wide open, insert the shaft of the Film
Holder into the hole of the AFL Upper Housing.
2. Insert the dowel of the Damper into the hole of the Film
Holder. Since the shape of the dowel and the hole is
rectangular, adjust the angle of the Damper as shown below so
that its dowel fit into the hole.
Shaft and
hole
AFL Upper Housing
Film Holder
Film Holder
AFL Upper Housing
Dowel of the
Damper
Damper

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
