EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
DISASSEMBLY/ASSEMBLY Disassembly of AFL 54
4.5.9 Film Holder Lock
1. Remove the Damper/Film Holder. (4.5.8 Damper/Film Holder on page 53)
2. Disengage the two hooks that secure the Film Holder Lock with a flat-blade
screwdriver, and push out the Film Holder toward the outside of the AFL Upper
Housing.

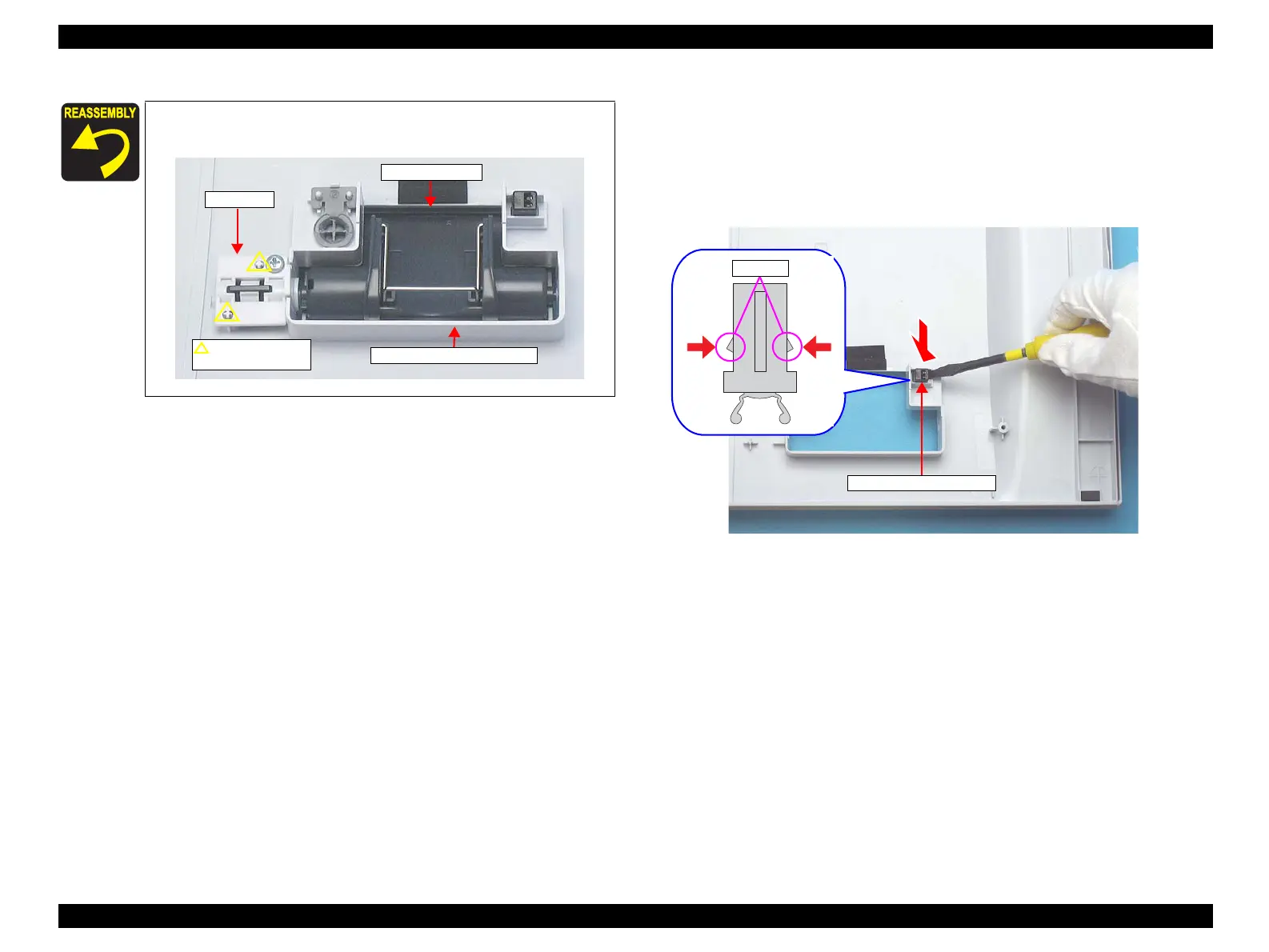

Figure 4-50. Removing the Film Holder Lock
3. Insert the two guide pins of the AFL Upper Housing into the
positioning holes of the Damper, and screw the Damper.
Figure 4-49. Reassembling the Damper/Film Holder
Film Holder
Damper
AFL Upper Housing
Guide pin and
positioning hole
Hook
Film Holder Lock

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
