EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
OPERATING PRINCIPLES Engine Operation Outline 20
2.1.2 Outline of Mechanical Operation
CARRIAGE UNIT MECHANISM
(PERFECTION V10 / V100 PHOTO / V200 PHOTO / V350 PHOTO)
The scanning of an image on document is carried out with the combination of the main
scanning direction (one line: CCD Sensor) and sub scanning direction (multiple lines:
Carriage Unit movement).
The line type color CCD Sensor can only scan one line in the main scanning direction
(in parallel with the Carriage Unit) at one time. To scan the second and latter lines in
the sub scanning direction, the Carriage Unit having a built-in CCD Sensor is moved
by CR drive. The scanned data are sent to the Control Board. The scanning of Line n
data and the processing of Line n-1 image data are performed consecutively at the same
time.

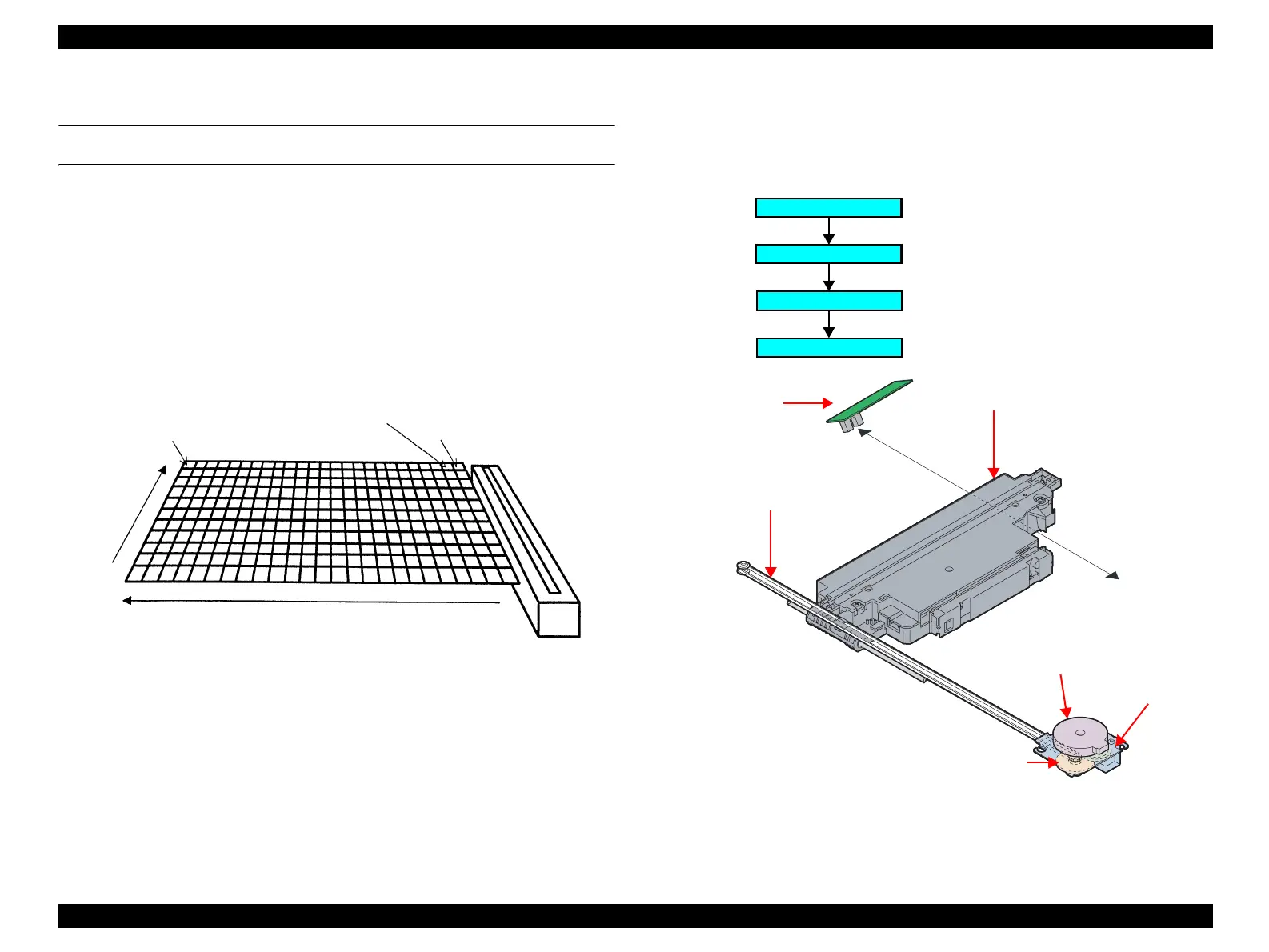

Figure 2-5. Carriage Movement
The Carriage Unit slides in the sub scanning direction by the CR Timing Belt Motor,
which is powered by the transmitted force from the CR Motor as shown below. The CR
Motor is a stepping motor and is driven under open loop control. The starting location
for scanning an image is determined by the CR HP Sensor which is located on the
Control Board.
Figure 2-6. Carriage Unit Mechanism
Main scan
Sub scan (by the Carriage movement)
Document
Scanner Head
(Carriage)
One pixel
The second line
The first line
CR Motor
Deceleration Gear
Drive Pulley
CR Timing Belt
CR Motor
CR Timing Belt
Drive Pulley
Deceleration Gear
Carriage Unit
CR HP Sensor

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
