EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
OPERATING PRINCIPLES Engine Operation Outline 19
TPU OUTLINE (PERFECTION V100 PHOTO/V200 PHOTO)
The TPU consists of TPU Inverter Board and Lamp (light source).
 TPU Inverter Board
Boosts +24VDC and converts DC to AC to generate the voltage for driving the
Lamps (white cool cathode fluorescent lamp).
 Lamp
White cool cathode fluorescent lamp (1 piece: for transparent document) is used as
a light source.

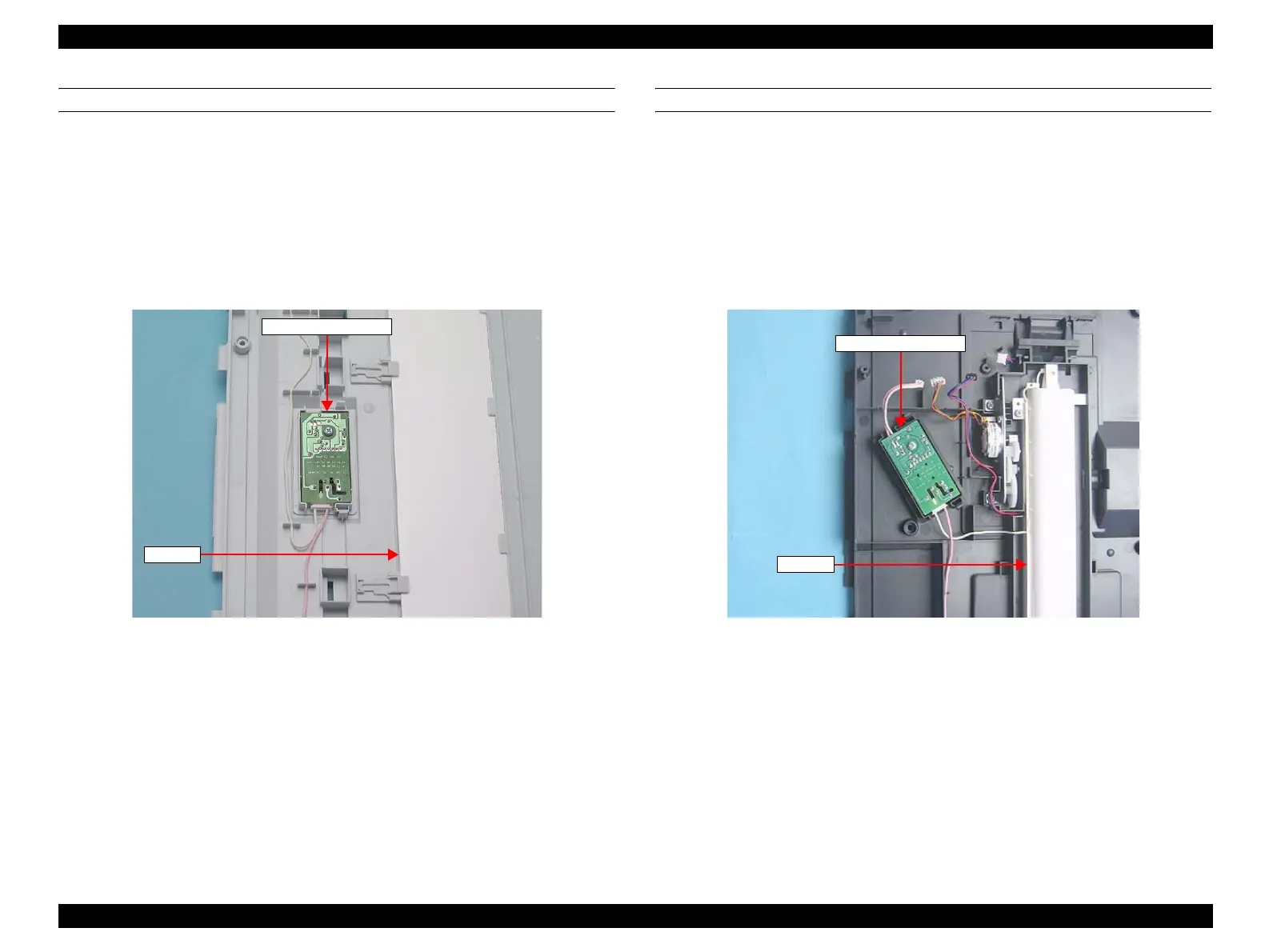

Figure 2-3. TPU Mechanism
AFL OUTLINE (PERFECTION V350 PHOTO)
The AFL consists of AFL Inverter Board and Lamp (light source).
 AFL Inverter Board
Boosts +24VDC and converts DC to AC to generate the voltage for driving the
Lamps (white cool cathode fluorescent lamp).
 Lamp
White cool cathode fluorescent lamp (1 piece: for transparent document) is used as
a light source.
Figure 2-4. AFL Mechanism
TPU Inverter Board
Lamp
Lamp
AFL Inverter Board
