EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
OPERATING PRINCIPLES Engine Operation Outline 21
AFL FILM FEEDING MECHANISM (PERFECTION V350 PHOTO)
The AFL Film Feeding Mechanism is a mechanism to feed 35mm strip films by the
motor drive.
The AFL drive is transmitted to the AFL Motor Belt by a route as shown below.

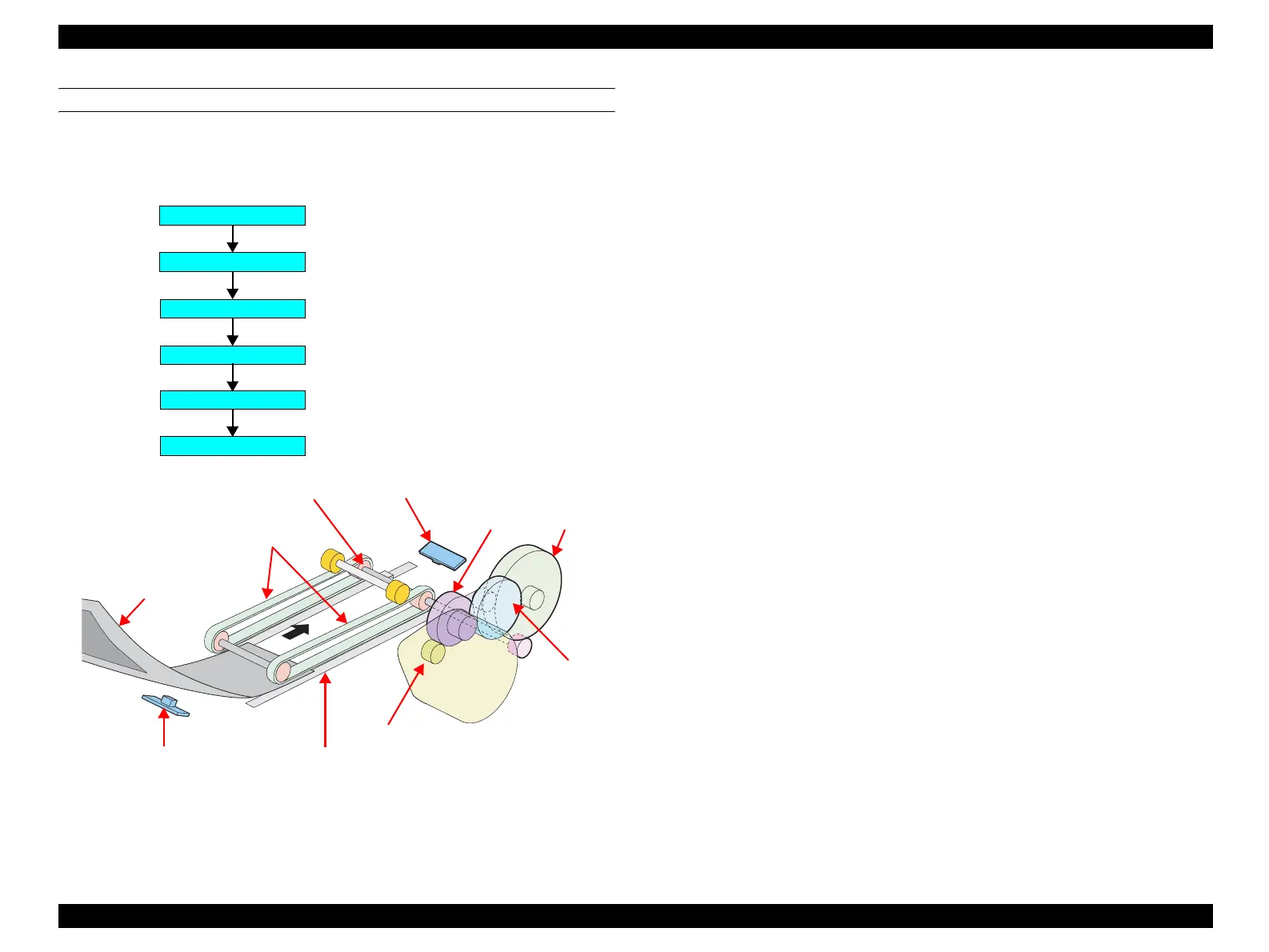

Figure 2-7. Film Feeding Mechanism
Here are descriptions of mechanical operations from when setting document, and
scanning, and to the time of taking out the document.
1. The Film Sensor (Front) detects the film inserted into the film entry.
2. The AFL Motor starts to rotate clockwise and feed the film.
3. The film is sandwiched between the AFL Motor Belt and the Film Retainer Plate to be
fed.
4. The Film Sensor (Rear) detects the film.
(The Film Sensor (Rear) determines that film jams occurred when it cannot detect the
film within the specified time.)
5. Carry out scanning.
6. After a lapse of specified time, the AFL Motor starts to rotate counterclockwise to exit
the film.
AFL Motor
Combination Gear A
Combination Gear B
Combination Gear C
Drive Roller, Rear
AFL Motor Belt
AFL Motor
Combination
Gear A
Combination
Gear B
Combination
Gear C
Drive Roller, Rear
AFL Motor Belt
Film
Film Sensor (Front)
Film Sensor (Rear)
Film Retainer Plate

Epson PERFECTION V10 Specifications

General

Color scanning	Yes
Input color depth	48 bit
Maximum scan size	216 x 297 mm
Optical density (Dmax)	3.2
Flatbed scan speed (b/w, A4)	34 sec/page
Scanner type	Flatbed scanner
Sensor type	CCD
Minimum RAM	128 MB
Minimum processor	Pentium II 450MHz
Minimum storage drive space	350 MB
Minimum system requirements	CD-ROM
Compatible operating systems	Windows 98SE/Me/2000/XP/XP 64-bit Mac OS X 10.2.8 +
USB version	2.0
Standard interfaces	USB 2.0
Compatibility	PC / Mac
Dimensions (WxDxH)	280 x 430 x 41 mm
Power requirements	100-240V; 50/60Hz
Bundled software	EPSON Scan & EPSON Creativity Suite ArcSoft PhotoImpression 5 ABBYY FineReader Sprint 6 ABBYY FineReader Sprint 5 (Mac)
Power consumption (standby)	3.5 W
Power consumption (typical)	16 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	10 - 80 %
Pallet width	800 mm
Pallet height	2150 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pallet	70 pc(s)
Quantity per pallet (UK)	100 pc(s)
Quantity per pallet layer	14 pc(s)
Quantity per pallet layer (UK)	20 pc(s)
Package depth	490 mm
Package width	105 mm
Package height	400 mm
Package weight	2975 g
Quantity per pack	1 pc(s)
Country of origin	Indonesia

Weight and Dimensions

Weight	2200 g
