EPSON Perfection V10/V100 Photo/V200 Photo/V350 Photo Revision B
MAINTENANCE Overview 60

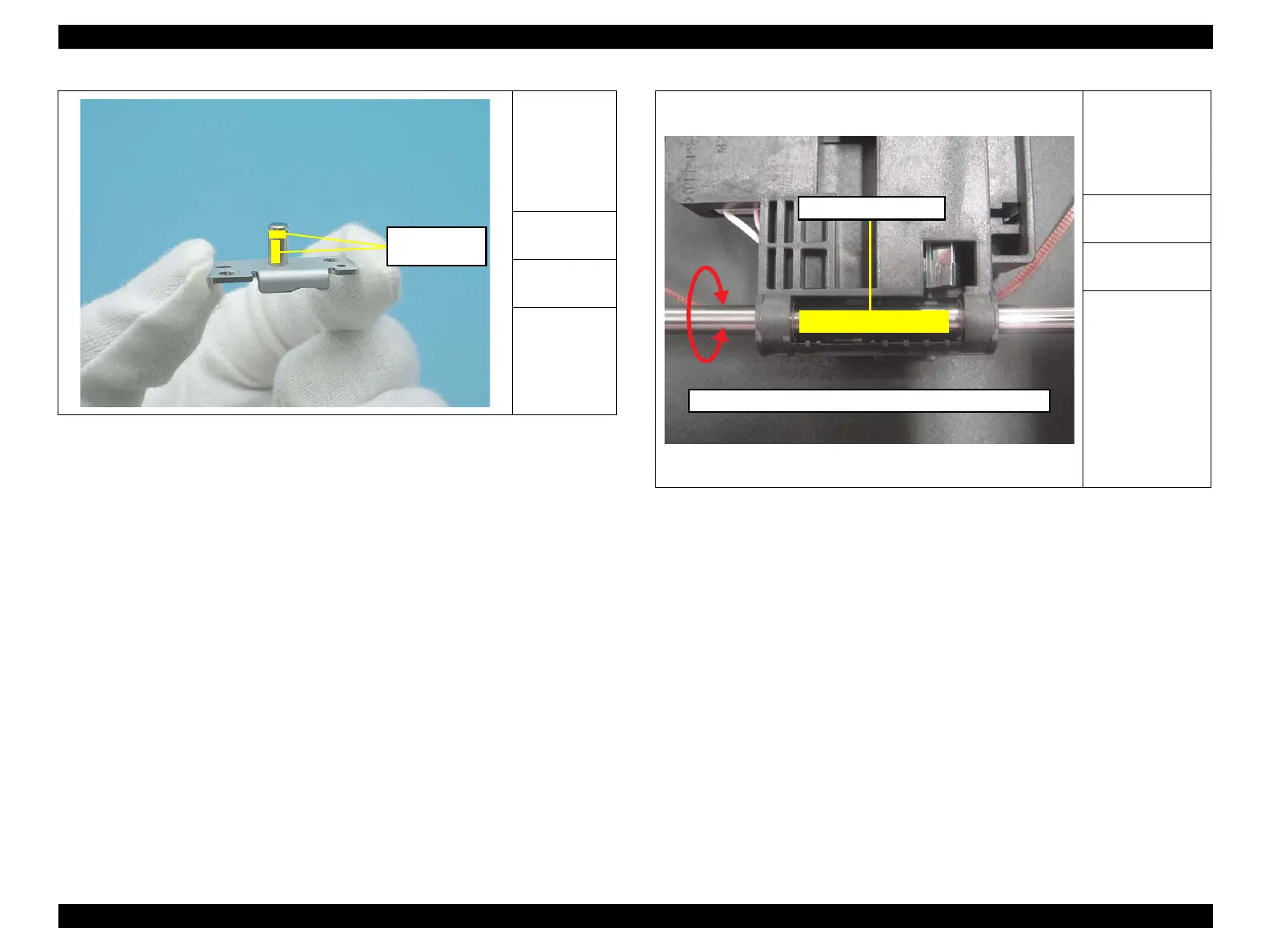

Figure 6-2. Lubrication Point (2)
Figure 6-3. Lubrication Point (3)
<Lubrication
point>
Driven Pulley
(Refer to
4.3.8 Driven
Pulley P41)
<Oil type>
G-45
<Tool>
Brush
<Amount>
Moderate
amount
Lubrication
Point
<Lubrication
point>
Carriage Shaft
(Refer to 4.3.9
Carriage Unit P41)
<Oil type>
G-45
<Tool>
Brush
<Amount>
Moderate amount
<Remark>
Apply the grease
while rotating the
carriage shaft
approx. three turns
in one direction
and another three
turns in the
opposite direction.
Lubrication Point
Apply the grease while rotating the carriage shaft.
