Epson SC-F9200 series Service Manual

SC-F9200 Series Revision B
DISASSEMBLY & ASSEMBLY Disassembly and Assembly Procedure 214
SE Group Confidential (Related Staff Only)
3.4.6.4 PF Motor Cooling Fan
1. Remove the Left Rear Cover. (p110)
2. Remove the Left Upper Cover. (p111)
3. Remove the Left Cover. (p114)
4. Release the cable from the two clamps and wire saddle.
5. Disconnect the cable from the relay connector.
6. Remove the two screws, and remove the PF Motor Cooling Fan.
A)Silver M4x30 Bind machine screw: 2 pcs

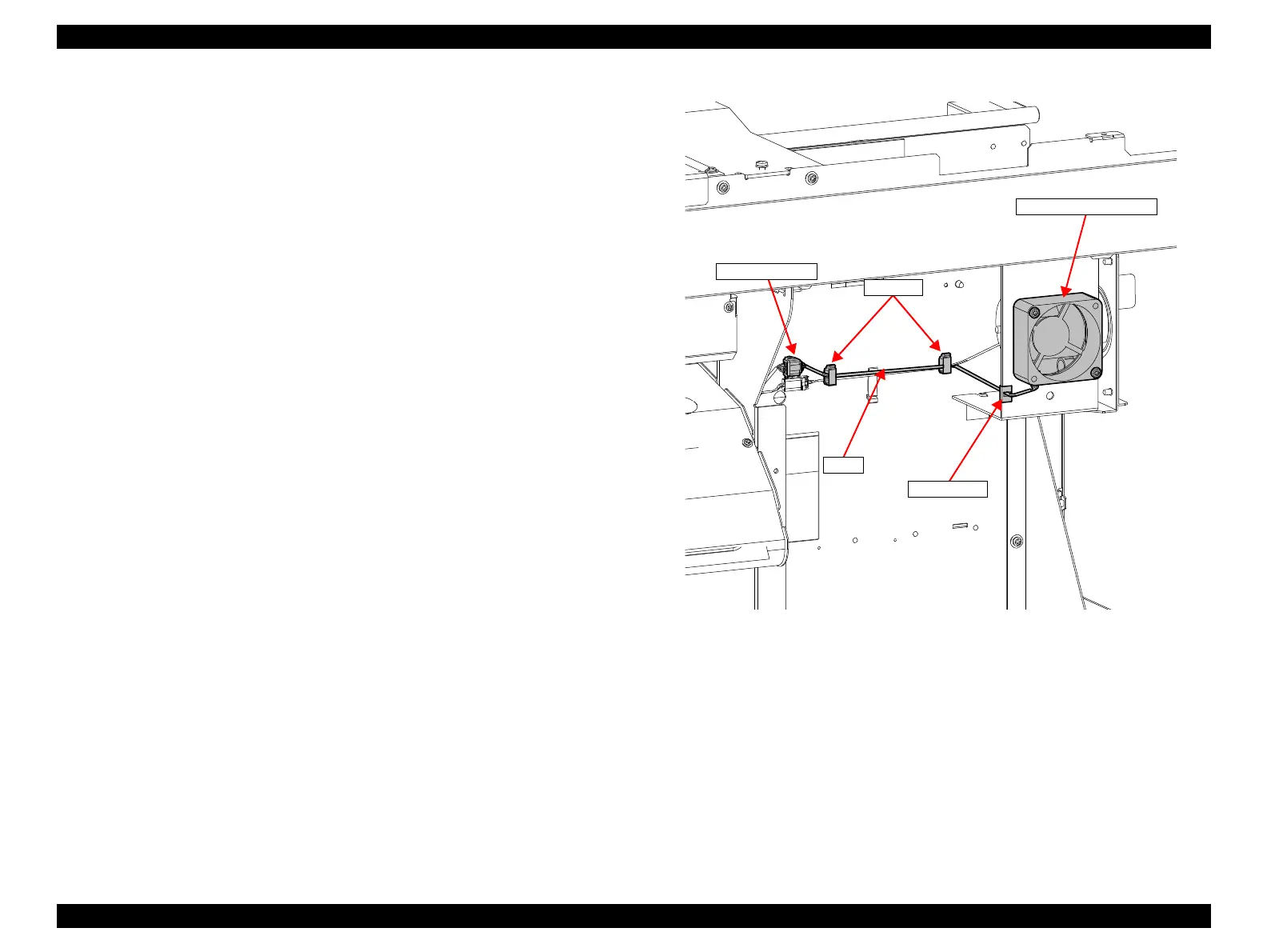

Figure 3-164. Removing the PF Motor Cooling Fan
PF Motor Cooling Fan
Relay connector
Clamps
Wire saddle
Cable
