EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A
ADJUSTMENT Adjustment by Using Adjustment Program (T.B.D) 106
5.2.2 Top Margin Adjustment
Patterns are printed as shown below.

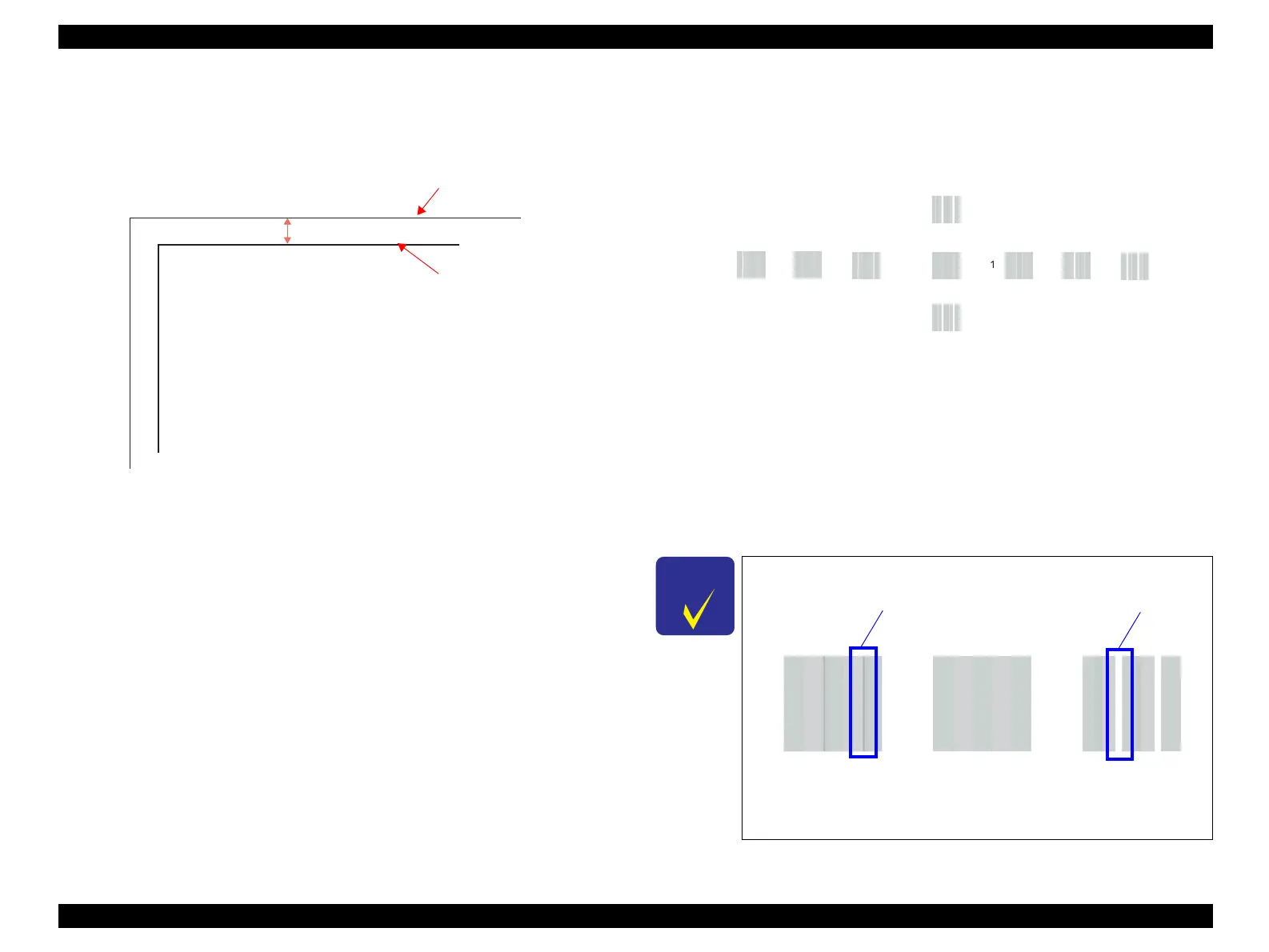

Figure 5-2. Top Margin adjustment Pattern Printing
[Judgment method]
Measure the distance from Paper top edge to the adjustment line, and check that it is
with in 3±1mm.
[Corrective action]
With the adjustment program, select adjustment value "+2","+1","-1","-2" and adjust
the deviation. (Each adjustment value shifts the line by 0.85 mm.)
5.2.3 Bi-D Adjustment
8 types of the pattern below, each dot size (ECO/VSD1/VSD2/VSD3) x color (Black/
Color) are printed.
Figure 5-3. Bi-D adjustment Pattern Printing
[Judgment method]
Find the pattern with no gaps or overleaps of the left and right pattern, and enter the
value of that pattern.
[Corrective action]
If an appropriate pattern is not printed, enter the nearest value and then print the
patterns again.
Top Pattern Paper
3±1 mm
TOF Line
C H E C K
P O I N T
The diagram below shows the OK and NG patterns.
-
1
0
1
2
3
-1
-
5
-
7
-
2
OK NGNG
Gap
Overlap
NGOKNG
