EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 94

4.6.13 PF Motor

 Part/Unit that should be removed before removing PF Motor

Document Cover / ASF Cover / Support Arm / Scanner Unit / Middle Case /

Panel Unit / Printer Mechanism / Hopper / Main Board / Main Frame / EJ Frame

Assy. / Print Head / CR Scale / CR Motor / CR Unit / Timing Belt / Ink System /

PF Roller

 Removal procedure

1. Detach the ferrite core from the Frame Base.

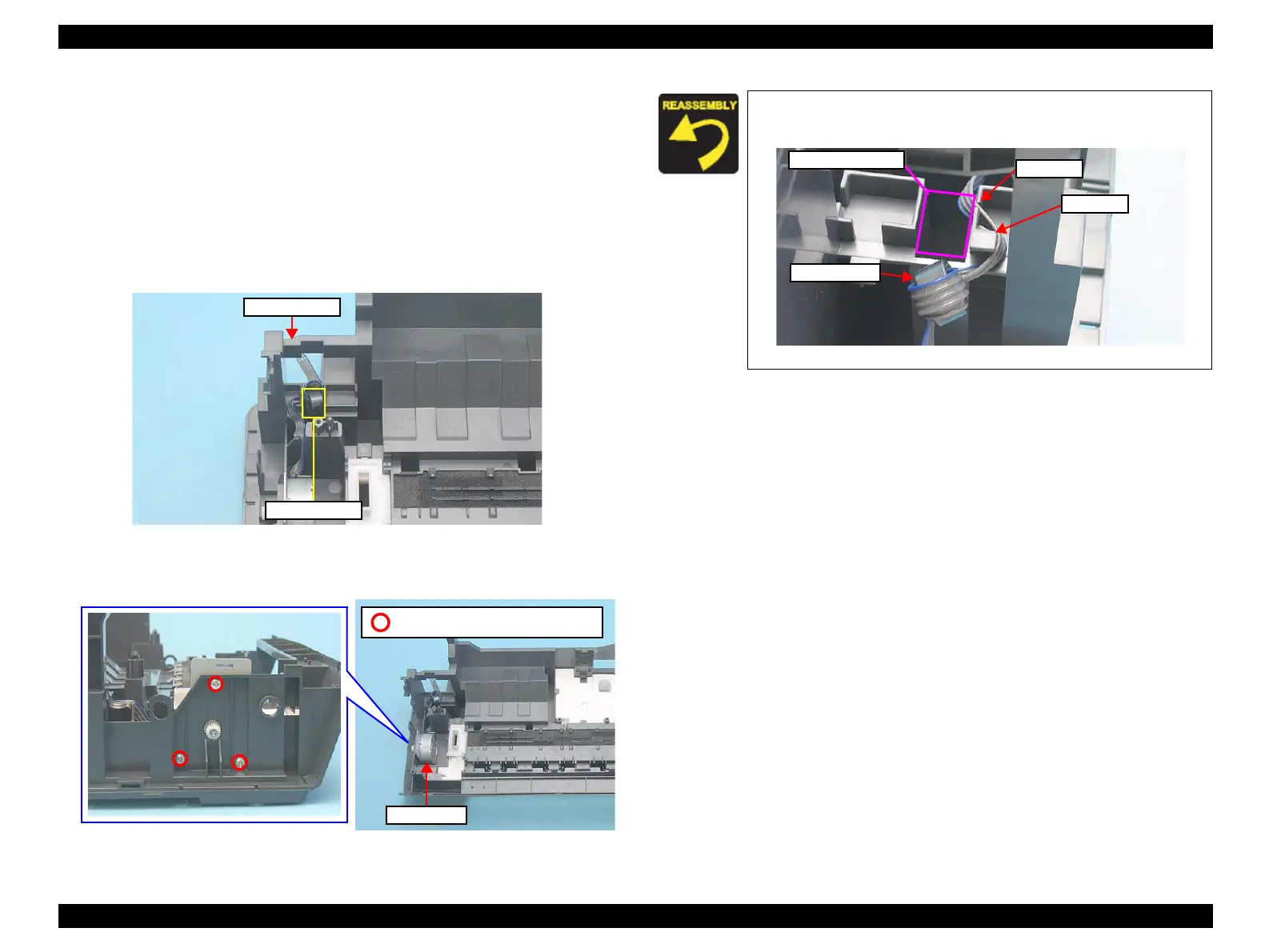

Figure 4-91. Removing PF Motor (1)

2. Remove the screws (x3), and remove the PF Motor.

Figure 4-92. Removing PF Motor (2)

Ferrite Core

Frame Base

PF Motor

C.B.S 3X8 (Torque: 6±1Kgf.cm)

When installing the PF Motor, arrange the cable into the slit and

the hook, then place the ferrite core into the positioning hole.

Figure 4-93. Installing the PF Motor

Hook

Slit

Ferrite Core

Positioning hole
