EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A
DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 75
4.6 Disassembling Printer Mechanism
4.6.1 Printhead
 Part/Unit that should be removed before removing Printhead
Document Cover / ASF Cover / Support Arm / Scanner Unit / Middle Case /
Panel Unit
 Removal Procedure
1. Unlock the Carriage Lock with a flathead screwdriver or a similar tool, and
move the CR Unit to the center of the printer.

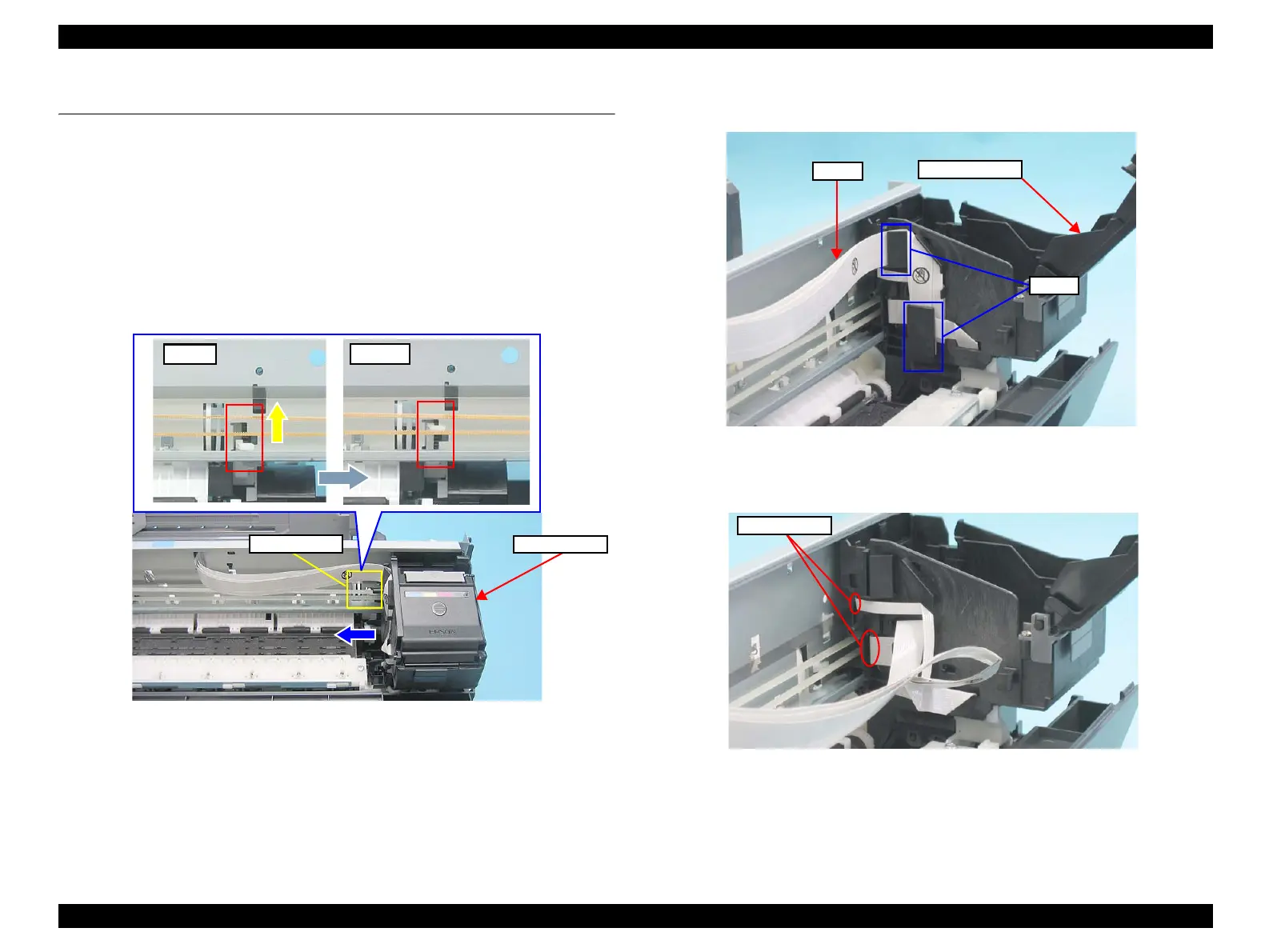

Figure 4-30. Unlocking Carriage Lock and Moving CR Unit to the Center
2. Open the Cartridge Cover and remove all the Ink Cartridges from the CR Unit.
3. Release the FFCs from the tabs.
Figure 4-31. Releasing FFCs
4. Disconnect the Head FFCs (x2) that are connected to the CSIC Board and the
CR Encoder Board.
Figure 4-32. Disconnecting Head FFCs
Carriage Lock
CR Unit
Locked
Unlocked
Tabs
FFCs
Cartridge Cover
Head FFCs

Epson Stylus CX4300 Specifications

General

Technology	Inkjet
Functions	Print, Scan, Copy
Print Resolution (Black)	5760 x 1440 dpi
Print Resolution (Color)	5760 x 1440 dpi
Scanner Type	Flatbed
Scan Resolution	600 x 1200 dpi
Copy Speed (Color)	9 cpm
Connectivity	USB
Operating Systems	Windows, Mac
Printer Type	All-in-One
Paper Sizes	A4, A5, B5, Letter, Legal, Envelopes
Ink Cartridges	4 (Black, Cyan, Magenta, Yellow)
