EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 79

4.6.3 CR Scale

 Part/Unit that should be removed before removing CR Scale

Document Cover / ASF Cover / Support Arm / Scanner Unit / Middle Case /

Panel Unit

 Removal Procedure

1. Release the right end of the CR Scale from the tab.

2. Release the CR Scale from the slit of the CR Encoder Sensor.

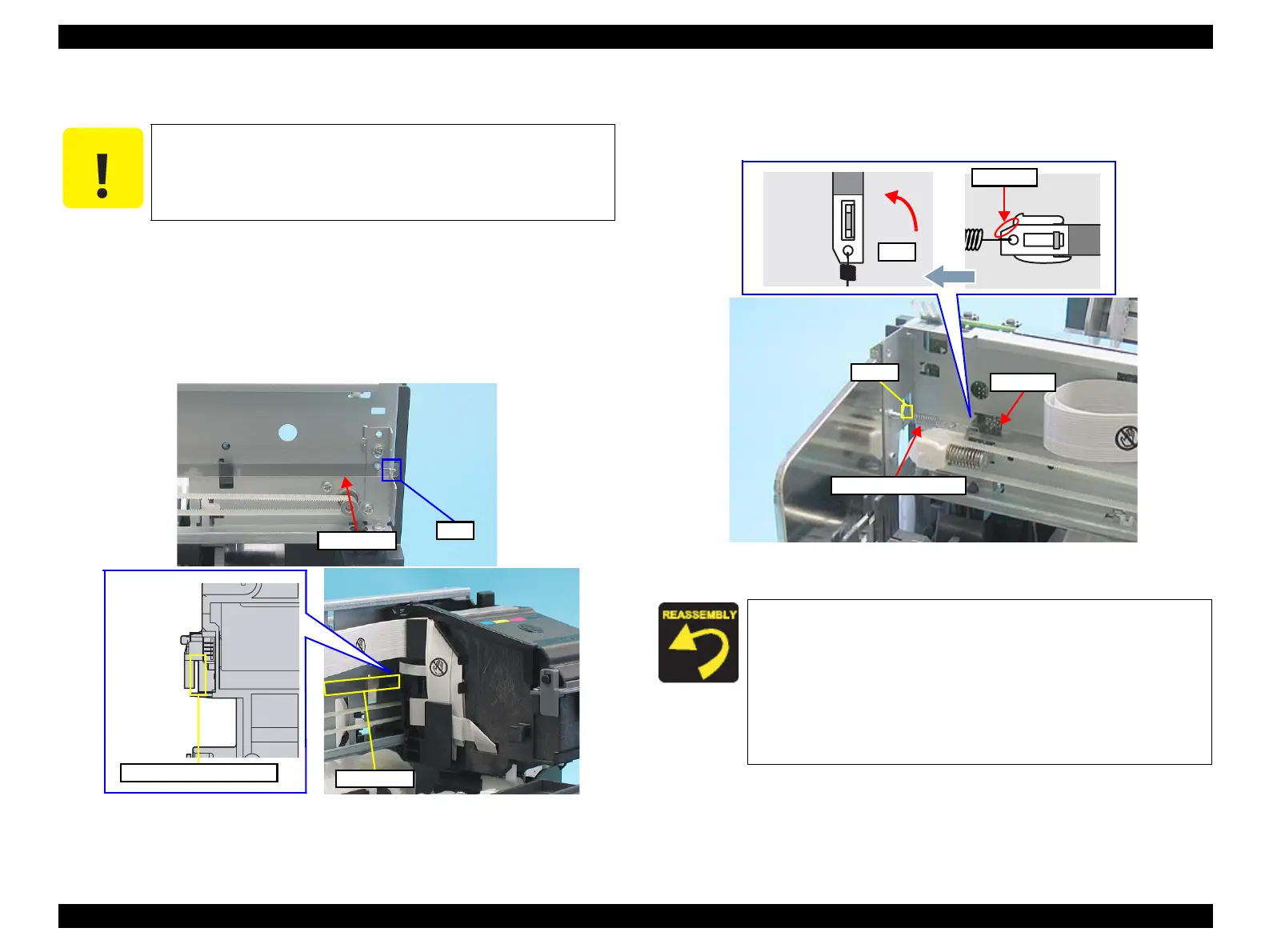

Figure 4-41. Removing CR Scale (1)

3. Release the Extension Spring 3.289 from the hook of the Main Frame.

4. Rotate the CR Scale 90 degrees as shown in the figure and remove the scale

from the Main Frame.

Figure 4-42. Removing CR Scale (3)

C A U T I O N

Pay attention to the following instructions:

 Do not touch the CR Scale with bare hands.

 Do not damage the CR Scale.

 Do not stretch Extension Spring 3.289 too much.

CR Scale

Tab

CR Scale

Slit of CR Encoder Sensor

When installing the CR Scale, pay attention to the following

instructions.

 The CR Scale must be set between the sides of the CR Encoder

Sensor, but not touching either side. If the CR Scale is rubbing

against either wall (emitter or receiver), it should be re-

installed.

 Chipped part of the CR Scale should be facing upward.

 Extension Spring 3.289 should not be twisted.

CR Scale

Extension Spring 3.289

Hook

Chipped

90 º
