EPSON Stylus CX4300/CX4400/CX5500/CX5600/DX4400/DX4450 Revision A

DISASSEMBLY/ASSEMBLY Overview 63

4.1.4 Caution After Repair (T.B.D)

Before shipping the product after repair, be sure to secure the CR Unit following the

procedure below.

HOW TO SECURE THE CR UNIT BEFORE PACKING

(1) Move the CR Unit to the Home position.

(2) Lock the Carriage Lock toward the front of the printer with a flathead screwdriver.

(See “4.6.1 Printhead (p75)”)

(3) Move the CR Unit to the center slightly until it comes in contact with the Carriage Lock.

(4) Attach the center portion ( ) of a strong tape to the Cartridge Cover located on the carriage.

(5) Attach the right portion ( ) of the strong tape to the Upper Housing.

(6) Attach the left portion ( ) of the strong tape to the left side of the carriage.

(7) Check to see that the CR Unit can move slightly between the Home position and the

Carriage Lock position. Then bring the CR unit back into contact with the Carriage

Lock, and pack the printer.

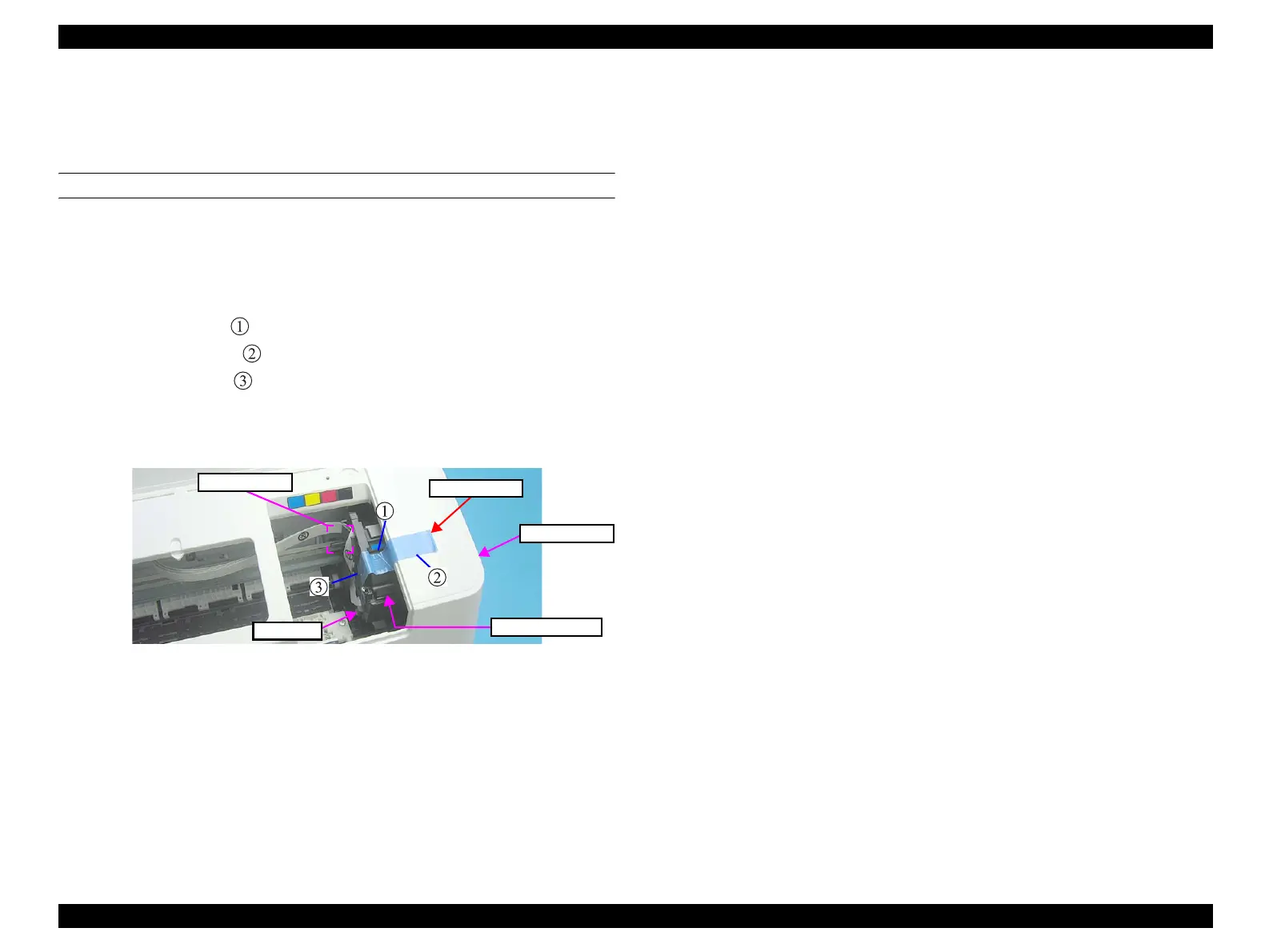

Figure 4-1. Securing CR Unit

Strong Tape

CR Unit

Carriage Lock

TBD

Upper Housing

Cartridge Cover
