DISASSEMBLY/ASSEMBLY Disassembling Printer Mechanism 88
6. While detaching the shaft of the LD Roller from the LD Holder Shaft Assy,
remove the Main Frame.

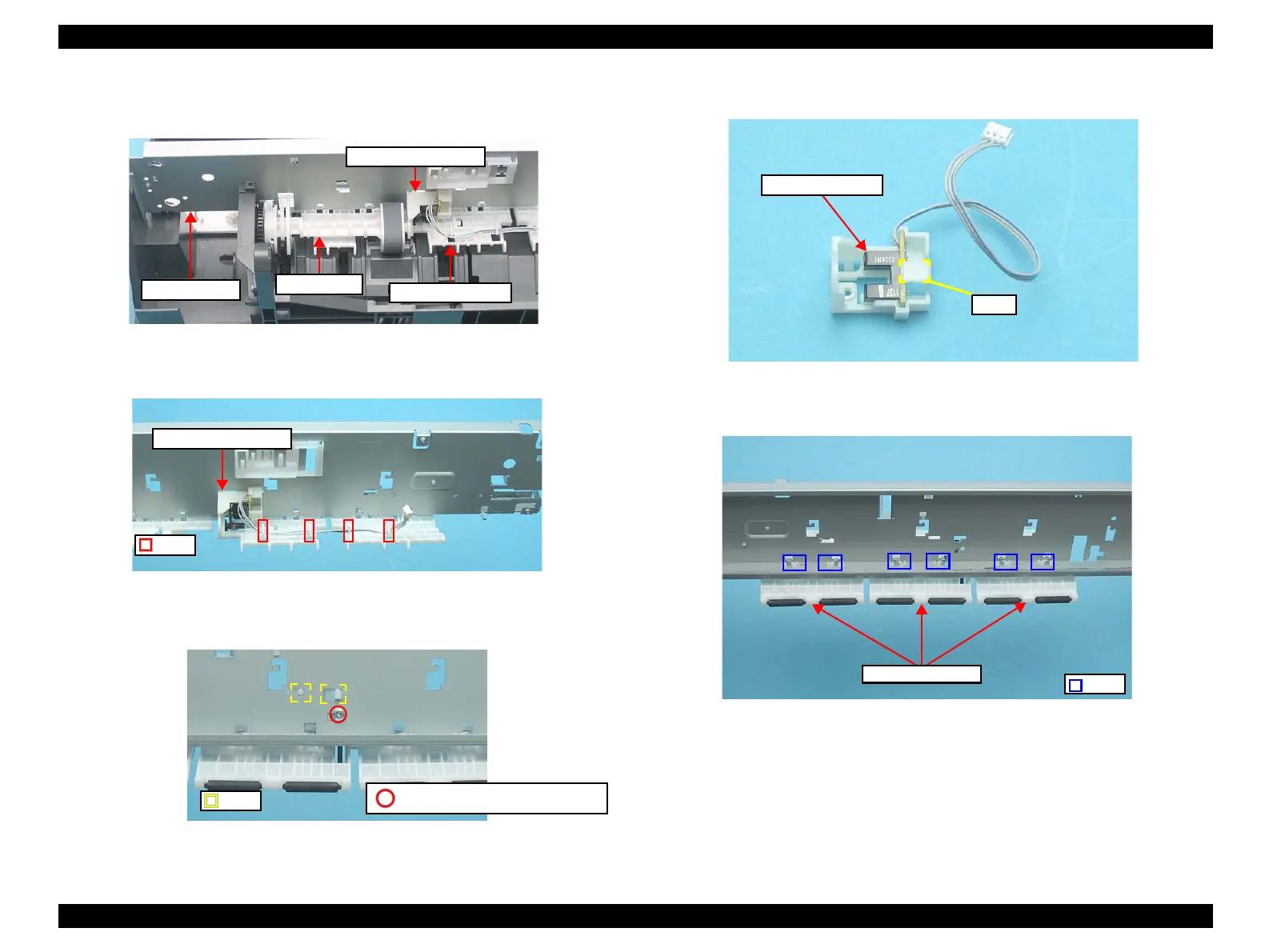

Figure 4-70. Removing Main Frame (2)
7. Release the connector cable of the PE Detector from the tabs (x4).
Figure 4-71. Disconnecting Cable
8. Remove the screw (x1) and remove LD Shaft Holder Assy.
Figure 4-72. Removing LD Shaft Holder Assy
9. Release the tab (x1), and remove the PE Detector Assy.
Figure 4-73. Removing PE Detector Assy
10. Release the tabs (x6) and remove the Upper Paper Guide.
Figure 4-74. Removing Upper Paper Guide
LD Holder Shaft Assy
Upper Paper Guide
Main Frame
LD Roller
Tabs
LD Holder Shaft Assy
Tabs
C.B.S 3X6 (Torque: 6±1Kgf.cm)
PE Detector Assy
Tab
Upper Paper Guide
Tabs
